Limited Access Digital Tension Meter with Data-Logging

Built-in datalogger stores 4000 values plus Last, average, MAX, MIN, MAX-PEAK, MIN-PEAK plus

Roller model for speeds up to 2000 m/min or "P" model with Ceramic Pins for speeds up to 6000 m/min

3 Ranges
0.5 - 100, 2 - 200, 2 - 500 (g or cN)

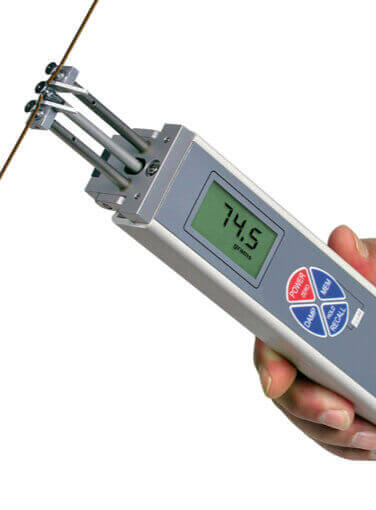

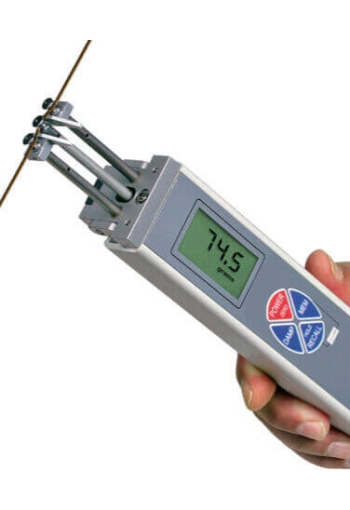

Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.

Store up to 4000 displayed tension values in memory and statistics (Last, AVG, MIN, MAX, MIN-PEAK, MAX-PEAK), which can be transmitted using the serial output port.

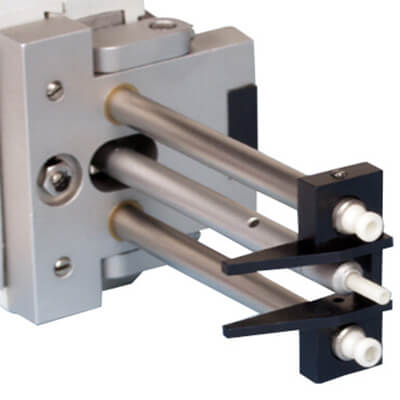

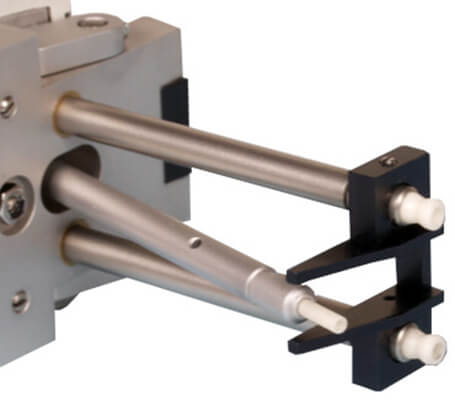

ETMX models feature miniature, high speed rollers for filament speeds up to 2000 m/min. ETMPX models features non-rotating, ceramic pins for speeds to 6000 m/min.

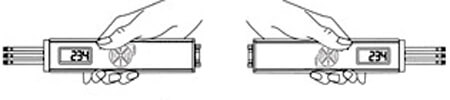

Reversible display for right or left-hand operation.

line

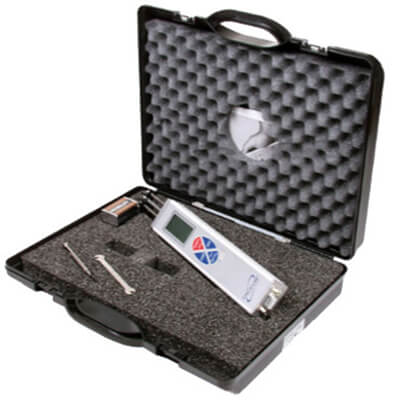

Kit Contents
line

ETMX - ETMPX Data Logging Limited Access Digital Tension Meter
Long life 9V lithium battery
Universal voltage charger
USB Data Transfer Cable
TensionInspect PC Software
Instruction manual
Carrying case

line
Photo Gallery
line

line
Features
line

User Selectable Units Grams or Centinewtons
New filament guide for easy acquisition of material
Adjustable damping for easier readings when tension fluctuates
Backlit LCD Display
Chrome-plated steel ball-bearing mounted rollers for material speeds up to 2000 m/min
USB output for batch download or real-time data transfer to TensionInspect Software for Windows
Non-rotating Ceramic Thread Guides suggested for material speeds over 2000 meters/min
Powered by rechargeable Lithium Polymer battery, 60 hr battery life w/ Universal voltage AC-Charger supplied
Built-in memory stores Last, average, MAX, MIN, MAX-PEAK, MIN-PEAK plus 4000 values
Continuous, automatic Zero Setting (independent to measuring position)

line
Specifications
line

Accuracy	±1 % full scale ±1 digit or better (typical ±0.5 % full scale)
Factory Calibration Material	0.20 mm Ø Polyamid Monofilament
Minimum Access Space Required	3/4" x 1" (20 x 26mm)
Guide Roller / Pin Material	Rollers, chrome-plated steel, std : 2000 m/min Ceramic pins, optional : 6000 m/min
Measuring Principle	Strain-gauge bridge
Maximum Sensing-Roller Displacement	0.5mm
Scanning Frequency	100 / sec., except 40/sec. in PEAK mode
Display Update	0.5 sec. (2 times per second)
Data Output	USB, 100 Hz max
Memory	Last, average, MAX, MIN, MAX-PEAK, MIN-PEAK plus data 4000
Thermal Drift	0.25% full scale per degree C
Natural Frequency	250 Hz
Over Range	10% FS, without accuracy guarantee
Overload Protection	200%
Temperature Limits	50-115° F (10-45° C)
Automatic Zero	± 20% of range
Rel. Humidity Limit	85%
Battery/Life	3.6 volt, Lithium-Polymer rechargeable / Approx. 60 hrs Life (3.5 Hr recharge), PN E08710
Battery Charger	100...240 V AC with plug adapters (EU/USA/UK)
Low Battery Voltage Indicator	LO BAT, or equivalent display
Weight (net/gross)	12 oz. (340 g) / 2.75 Lbs (1250 g)

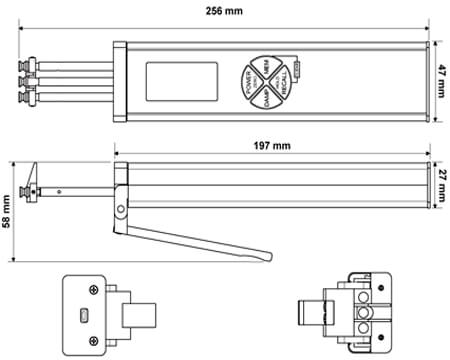

Dimensions	13" x 1-3/4" x 1" (330 x 45 x 25mm)
Housing Material	Aluminium frame profile with plastic outer casing (PVC)
Set of Ceramic Pins	540020 (for ETMPX)

line
Tension Ranges
line

Model	Range	Resolution	Rollers or Pins
ETMX-100	0.5-100.0	0.1	Rollers
ETMX-200	2-200	1	Rollers
ETMX-500	2-500	1	Rollers
ETMPX-100	0.5-100.0	0.1	Ceramic Pins
ETMPX-200	2-200	1	Ceramic Pins
ETMPX-500	2-500	1	Ceramic Pins
