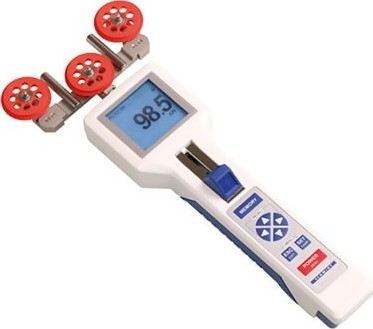

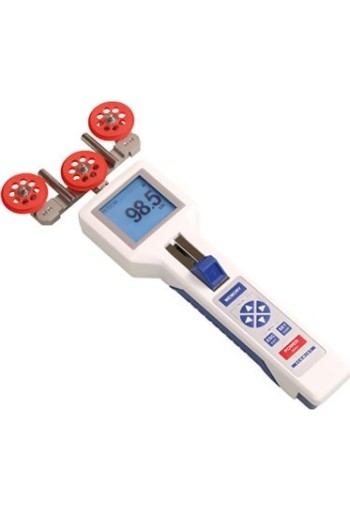

DTSF - Optic Fiber Hand-Held Digital Tension Meter

See More Tension Meters, Digital

DTSF - Optic Fiber Hand-Held Digital Tension Meter

See More Tension Meters, Digital
Call for price
    warrenty

    Product Description
    For use on Optical fibers, glass fibers and fragile materials
    3 Tension ranges available from 1 - 200g up to 10 - 1000g
    For diameters up to 1.5mm (0.060")

    3 Tension ranges available from 1 - 200 g up to 10 - 1000 g

    32 mm Diameter Lightweight Rollers minimize bend on fragile materials (Rollers are offered in Hardcaot Anodized Aluminum or Delrin Plastic)


    line

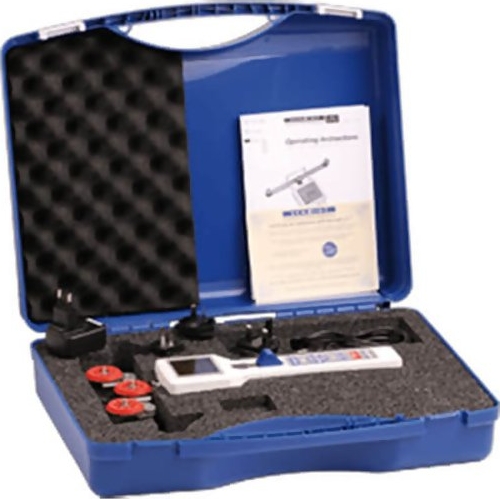

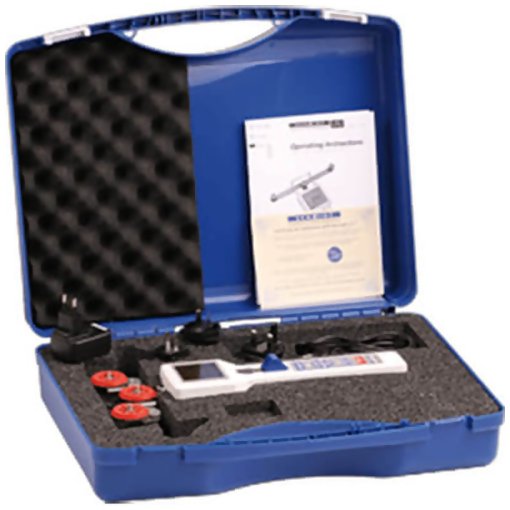

    Kit Contents
    line

    • DTSF - Optic Fiber Hand-Held Digital Tension Meter
    • AC adapter
    • Certificate of compliance with the order 2.1 according EN 10204 free of charge
    • Instruction manual
    • Carrying case


    line
    Features
    line

    • 32mm diameter V-grooved rollers are lightweight & ball bearing mounted for material speeds up to 4000 m/min
    • Large bending radius assures gentle handling of the material (rollers in Hardcoat Anodized Aluminum or Delrin Plastic)
    • Built-in memory for 60,000 data points with USB output with sample rates up to 1kHz
    • 10 Material Calibration locations for customer calibrations
    • Includes Tension Inspect Software at no additional charge; displays real-time readings on a PC or download stored data
    • Optional Wi-Fi for wireless data transfer to a PC

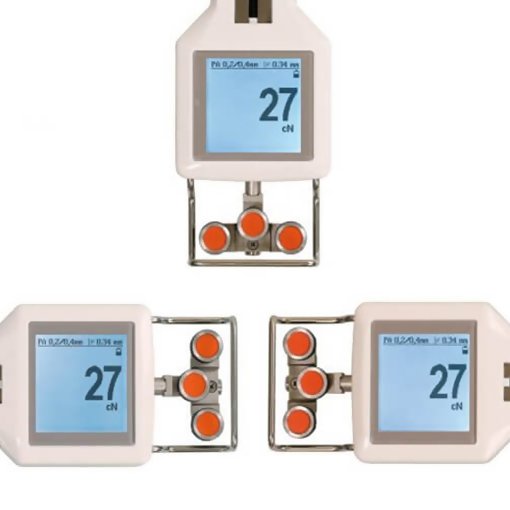

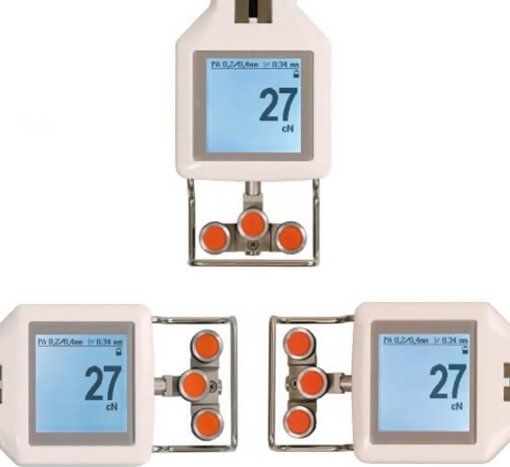

    • Large, backlight LCD-display rotates in 90° steps for optimal viewing
    • 3 different display modes:
      • numeric
      • numeric with bargraph
      • numeric with graph (Time-Tension)
    • Automatic "Zero-Setting“ in each measuring position
    • User-set Min and Max alarms with indication on LCD if reading is out of limits
    • High speed internal data sampling (8 kHz) for capture of accurate Min & Max Peaks
    • Selectable units of measurement: cN, daN, g, kg, N, lb
    • Rugged aluminium housing with rubberized handle provides a secure and comfortable grip
    • Some menu functions can be password protected
    • Rechargeable Lithium Polymer Battery provides 40 hours of continuous operation
    • CE certified with 1-Year Warranty
    • NIST-Traceable Calibration Certification in optionally available


    line
    Specifications
    line

    CalibrationAccording factory calibration procedure
    AccuracyFor PA from 5 % up to 100 % FS*
    : ± 0.5 % FS* ± 1 digit
    remaining tension range and other calibration materials:
    ±3 % full scale and ±1 digit
    Memory for material curves1 for factory calibration plus 4 for customized calibrations
    Measuring unitsTension: cN, daN, g, kg, N, lb (user-selected)
    Thickness : mm, inch (user-selected)
    OverrangeApprox. 10 % FS*, full scale, without accuracy guarantee
    Overload protection100 % full scale
    Measuring principleStrain gauge bridge
    Signal processingDigital, 16 bit A/D converter
    Measuring frequencyMax. 1 kHz (1000 measurings/sec.), intern 8 kHz
    Measuring roller deflectionMax. 0.2 mm
    DisplayGraphic LCD, Backlit (user-set: on/off/auto)
    3 different displaysNumeric,
    Numeric with graph (time-tension)
    X-Y-diagram
    Display update rateApprox. 2 times per second
    MemoryMIN, MAX, PEAK, AVG and LAST
    DampingUser-adjustable electronic damping (averaging)
    calculated by [X-Values OLD + Y-Values NEW] ÷ 9
    Cal. Adjustment± 10 steps in 1 % increment
    Thickness compensationMax. 2.5 mm (not available for all models)
    Auto power offApprox. 3 minutes of non-use
    Temperature coefficientGain: less than ± 0.01 % FS* /°C
    Zero pointless than ± 0.03 % FS* /°C
    Temperature range10 – 45 °C
    Air humidity85 % RH, max.
    Power supplyRechargeable Lithium Polymer Battery provides 40 hours of continuous operation, charging time approx. 3-1/2 hours includes AC-Adapter/Charger 100 – 240 V AC (with EU, USA, UK plug adapter)
    Housing materialDie-cast aluminium
    Weight, net (gross)approx. 845 g / 1520 g


    line
    Ranges
    line

    ModelRangeResHead Width*Caliration PA**
    DTXF-2001 – 200.0 grams or cN0.1 g or cN
    140 mm
    0.12 mm Ø (PA)
    DTXF-5001 – 500.0 grams or cN0.1 g or cN
    140 mm
    0.20 mm Ø (PA)
    DTXF-100010 – 1000 grams cN1 g or cN
    140 mm
    0.30 mm Ø (PA)
    DTXF-200020 – 2000 grams or cN1 g or cN
    140 mm
    0.50 mm Ø (PA)

    Notes

    * Outer distance between outside guide rollers
    ** Suitable for 95 % of applications
    *** PA is Polyamide Monofilament


    line
    Roller Guide
    line

    Roller WidthsLine Speed
    VMax ...M/Min
    Roller Material*
    Standard
    4000
    Hard-coated aluminium
    Code T
    4000
    Plastic (PVC) red


    line
    Related Products
    line

    Roller Guide
    • Available Rollers for Hand-Held Tension Meters
