    Product Description
    3 Tension Ranges from 0-20 Kg up to 0-100 Kg
    For measuring wires, ropes and cables up to a diameter of 15 mm
    60mm diameter U-Grooved Rollers (radius of 3, 5 or 8 mm)

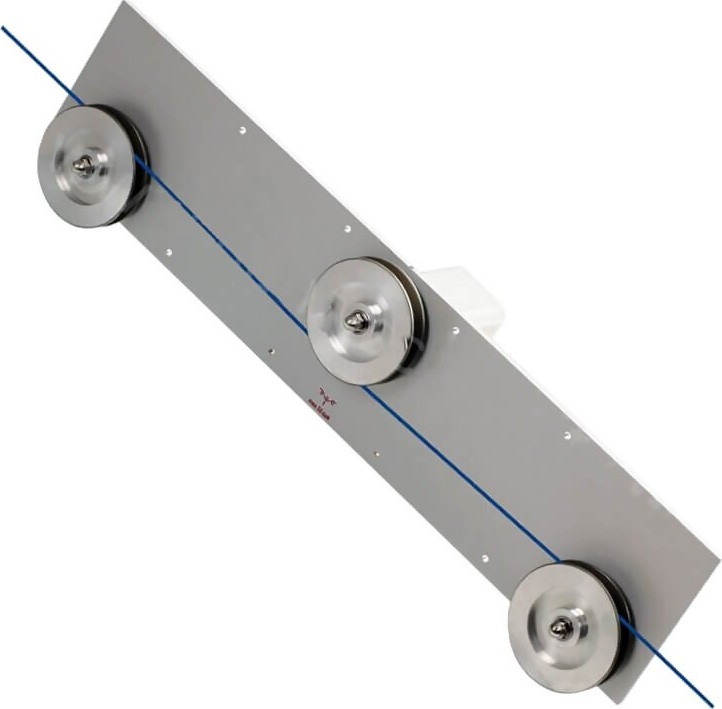

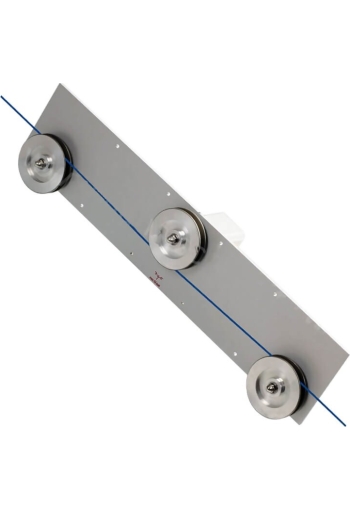

    Heavy-duty Tension Sensor for wires, ropes and cables up to a diameter of 15 mm
    4 Tension Ranges from 0-20 Kg up to 0-200 Kg
    60mm diameter U-Grooved Rollers
    Radius of U-Groove is 3mm (5mm and 8 mm available)
    Fabricated from Hardcoat Anodized Aluminum
    Wide range of analog and digital outputs available

    The new TSW Series Tension Sensor are purpose-built online tension sensor for continuous measurement of running line tensions of wires, ropes and cables and similar process materials up to a diameter of 15 mm. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.


    line
    Features
    line

    • U-Grooved guide rollers 80 mm OD / 60 mm root diameter with easy-running ball-bearings
    • Radius of U-Groove offered in 3mm (standard), 5mm Code R2 or 8 mm (Code R3)

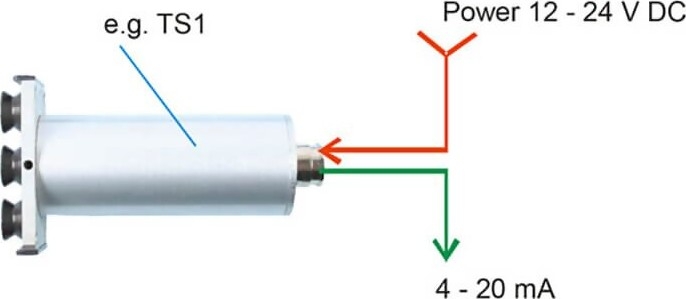

    • Tension sensor with integrated measuring amplifier provides 0-1V DC, 0-10V DC or 4-20mA output
    • Various digital output signals include USB, RS-232 and RS-422
    • Easy calibration to customized material by operator (using Zero & Gain Adjustment Pots)
    • Includes mechanical overload protection (200%)
    • Fabricated from Aluminum for use in tough production environments

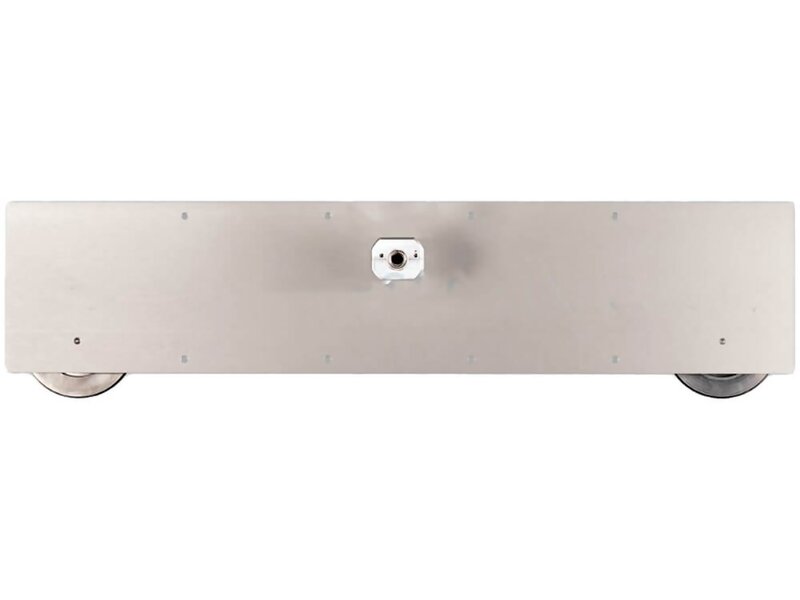

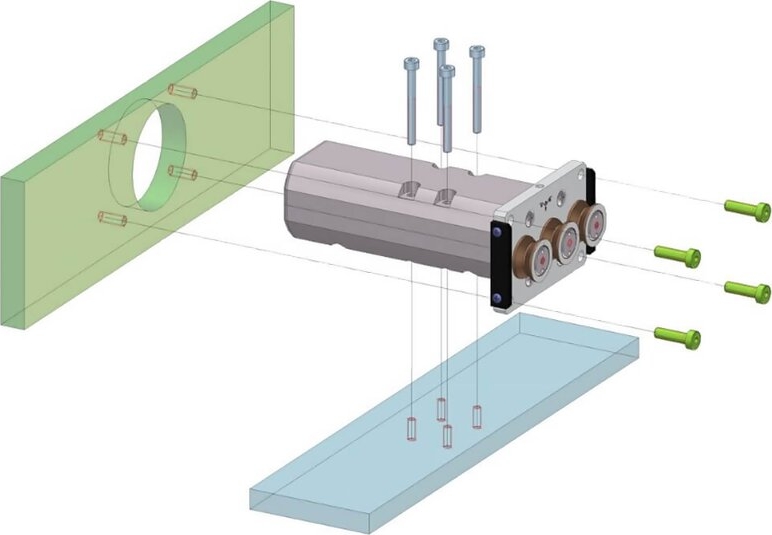

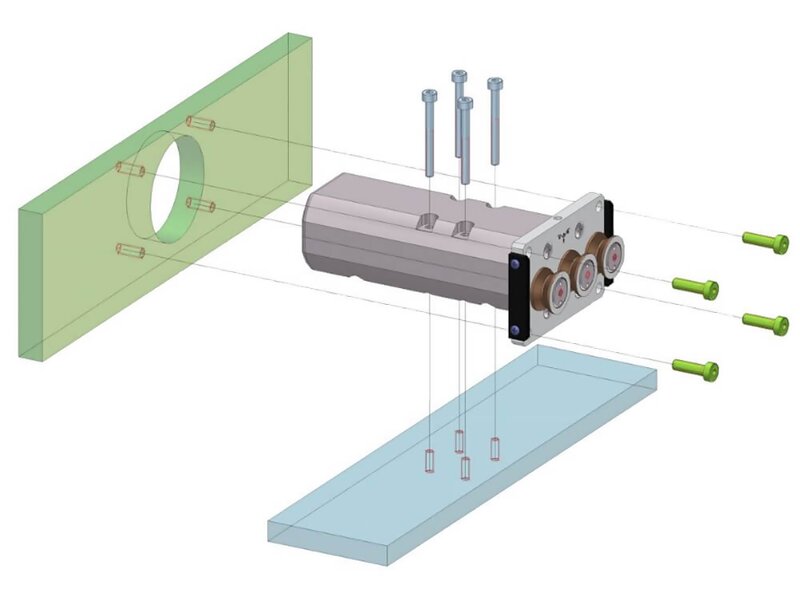

    • 2 Mounting possibilities: via holes in front plate or cylindrical hole mounting
    • Requires power supply +15…24 V DC (regulated) or connection to SC-PM Tension Indicator

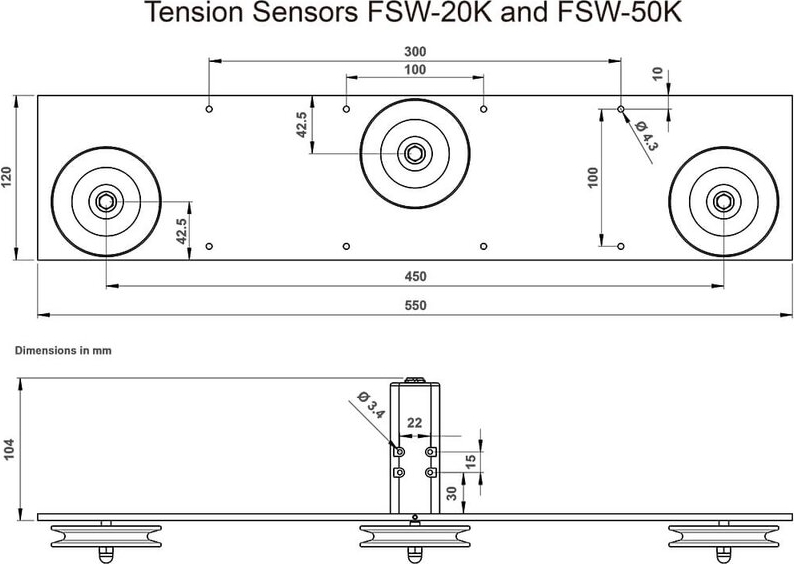

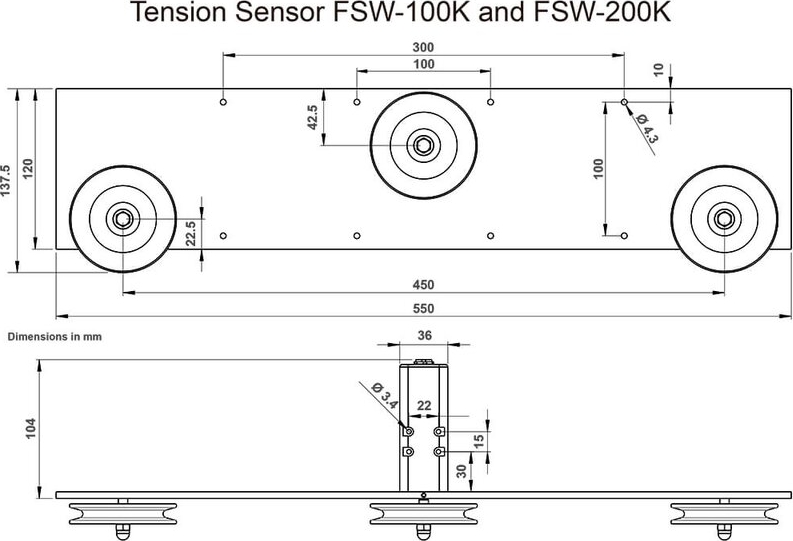

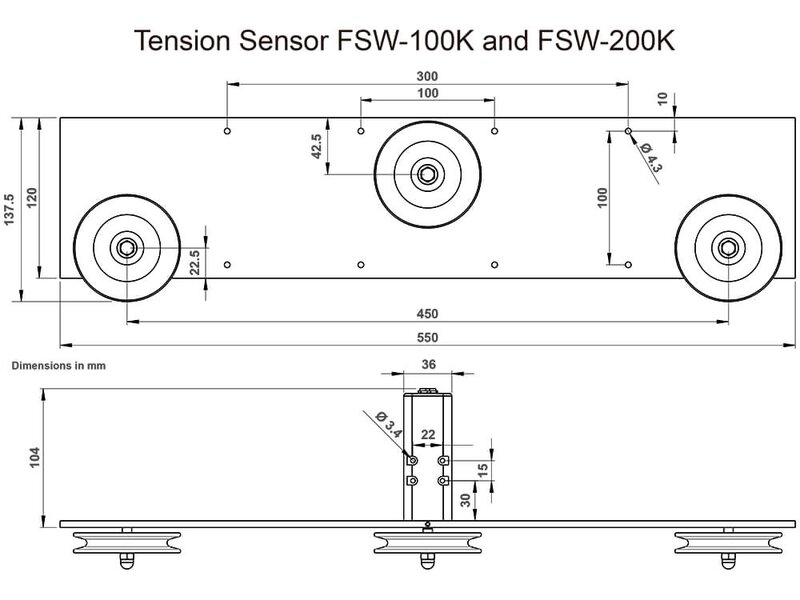

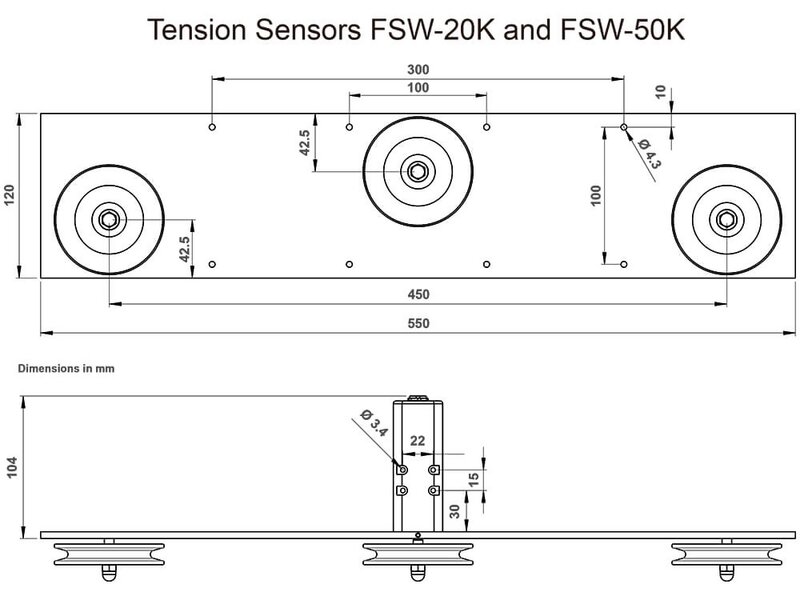

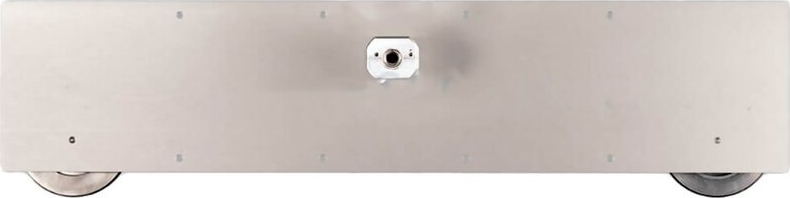

    • Front Plate dimensions of 550 mm width x 100 mm
    • Strain Gauge-based sensor provides accuracy of 1.5% Full Scale or better.
    • Custom-designs are possible along with special features such as air fitting to create positive internal pressure in the housing for protection against airborne chemicals or contaminants


    line
    Specifications
    line

    Accuracy±1.5 % full scale and ±1 digit
    other calibration material: ±3 % full scale or better
    Overload protection100 % of tension range (200% total)
    Measuring principleStrain gauge bridge
    Measuring roller deflectionMax. 0.5 mm
    Natural frequencyApprox. 500 Hz, depending on tension range
    Signal processingAnalog (option: digital)
    Output SignalStandard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ
    Option: 0 - 10 V DC (analog), 4 - 20 mA (current) or mV/V (DMS) digital RS 232
    USB Output (Option "-USB)USB Connection direct to Windows PC (requires TensionInspect Software, SW-TI3)
    Supplied with 3 meter USB-A to USB-B Cable. If USB Cable longer than 5 meters is required, a USB Signal Booster is required.
    Temperature driftLess than ±0.05 % full scale/°C
    Damping (fg)Standard: 30 Hz (other values on request)
    Temperature range10 - 45 °C
    Air humidity85 % RH, max.
    Power supply+15...24 V DC, max. 50 mA regulated
    Code A10: max. +5 V DC, max. 20 mA regulated
    Housing materialAluminium
    Weight, net (gross)Approx. 1500 g (approx. 1800 g)
    Connection to PD765SIGNAL:Grey (Sig+) to V+, Blue (Sig-) to COM
    DC-POWER: White (Exc+) to P2+, Black/Brown (Exc-) to P2-


    lineRangesline

    ModelTension RangeMeasuring Head Width*Factory Calibration Material
    FSW-20K0 - 20 Kg (44 Lbs)550 mm (22")Steel rope 1.50 mm ⌀ (7x7x0.20)
    FSW-50K0 - 50 Kg (110 Lbs)550 mm (22")Steel rope 3 mm ⌀ (6x7x0.30)
    FSW-100K0 - 100 Kg (220 Lbs)550 mm (22")Steel rope 4 mm ⌀ (6x7x0.50)
    FSW-200K0 - 200 Kg (440 Lbs)550 mm (22")Steel rope 4 mm ⌀ (6x7x0.50)


    line

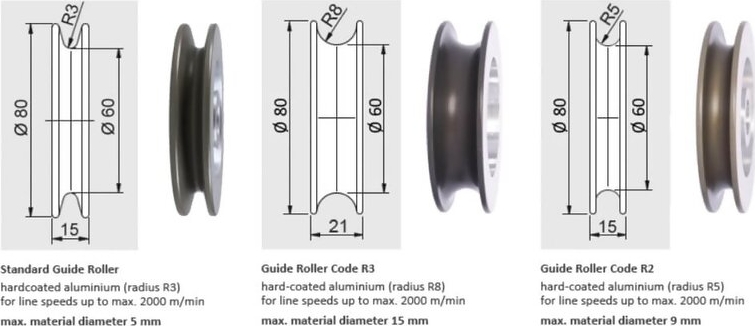

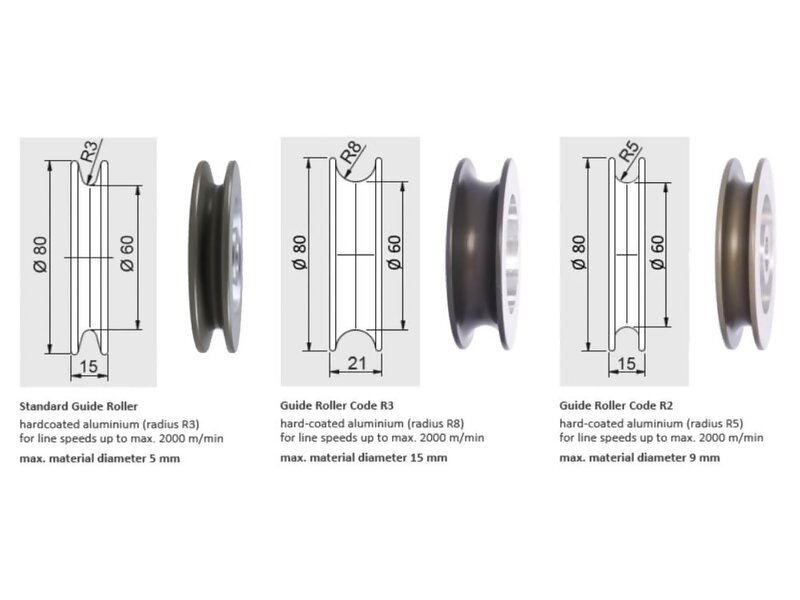

    Guide Rollers
    line

    CodeLine Speed
    Vmax ...m/min
    Roller Material
    Standard2000Hardcoated aluminum (radius 3mm)
    Code R22000Hardcoated aluminum (radius 5mm)
    Code R32000Hardcoated aluminum (radius 8mm)


    line
    Output Signal
    line

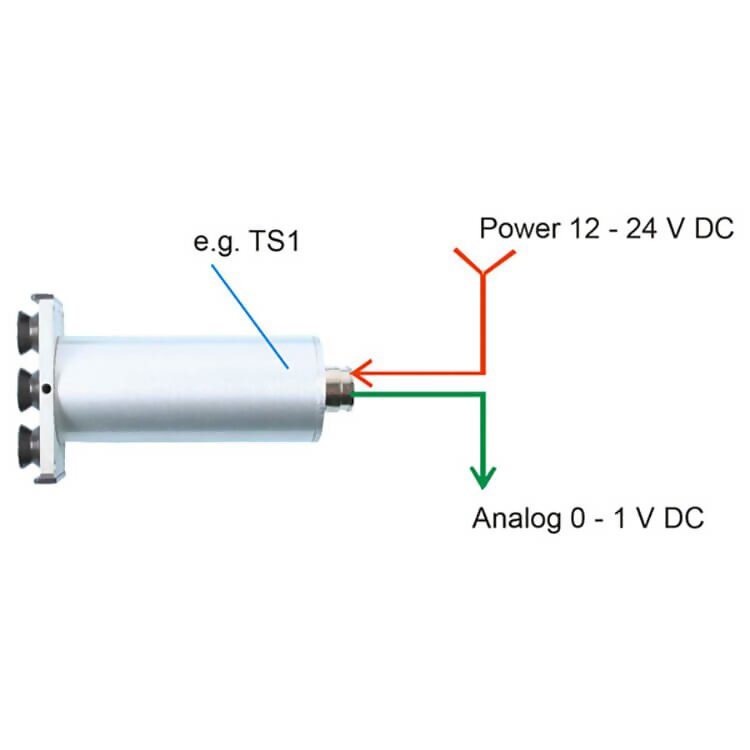

    Standard

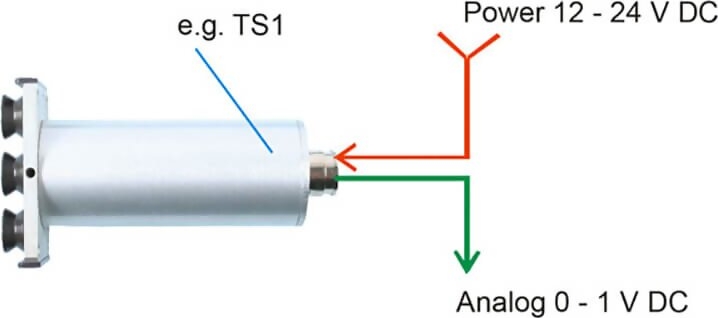

    • Output signal: 0 - 1 VDC

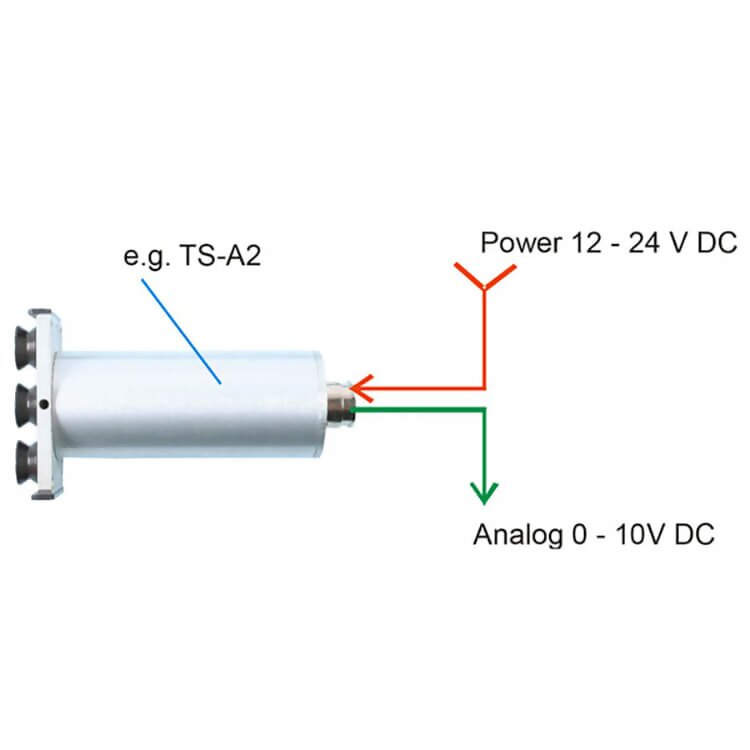

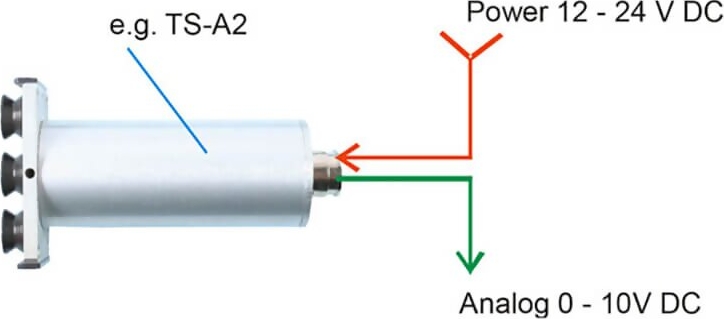

    Code "DC"
    • Output signal: 0 - 10 VDC
    Code "-MA"

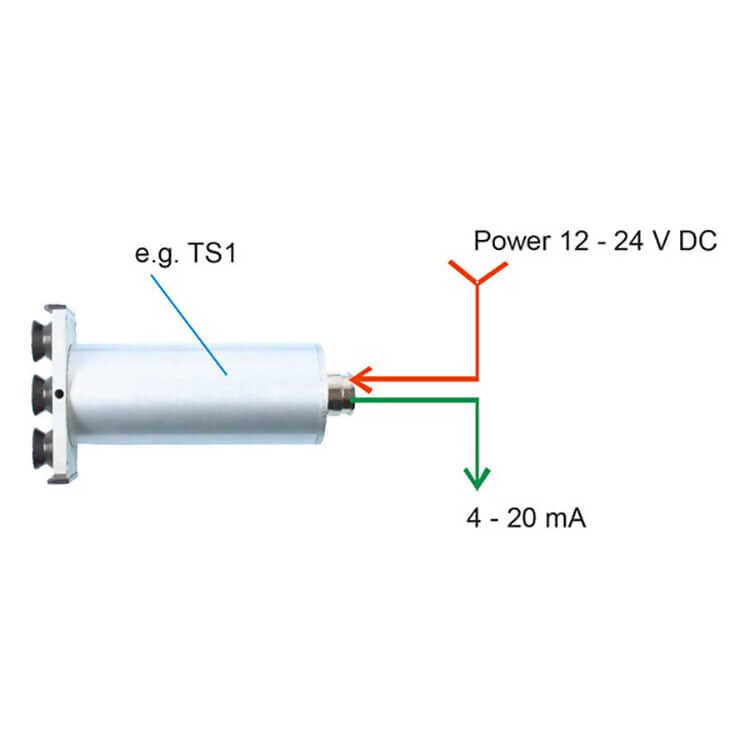

    • Output signal: 4 - 20 mA DC

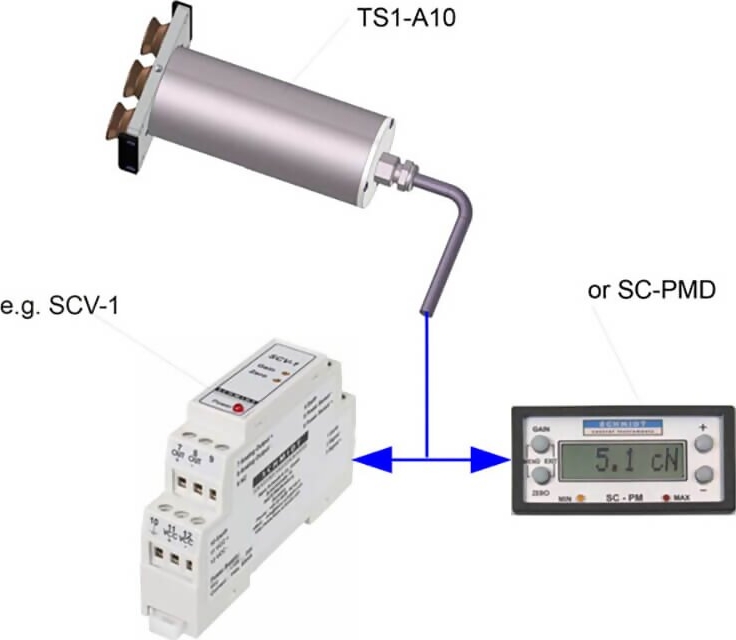

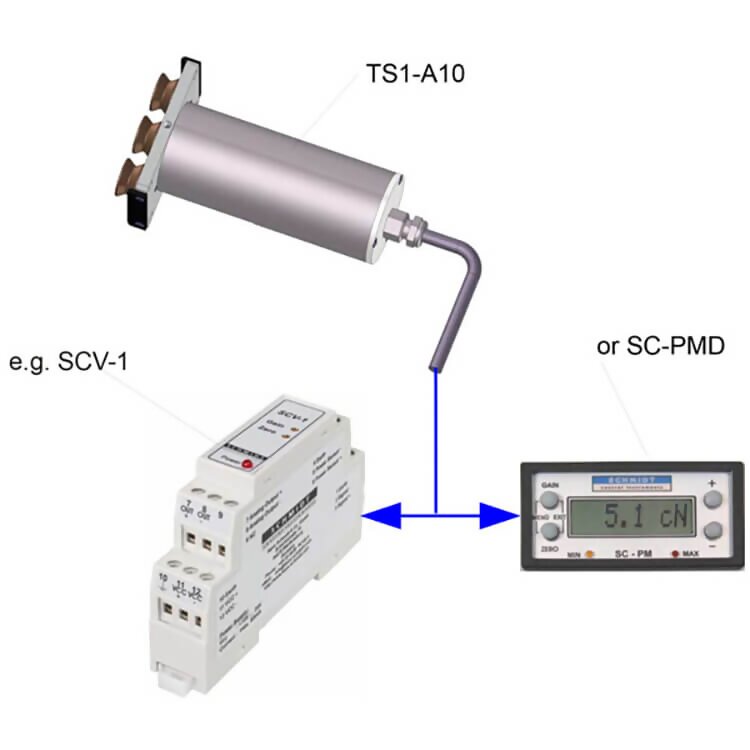

    Code A10
    • Output signal: mV/V for sensors without amplifier

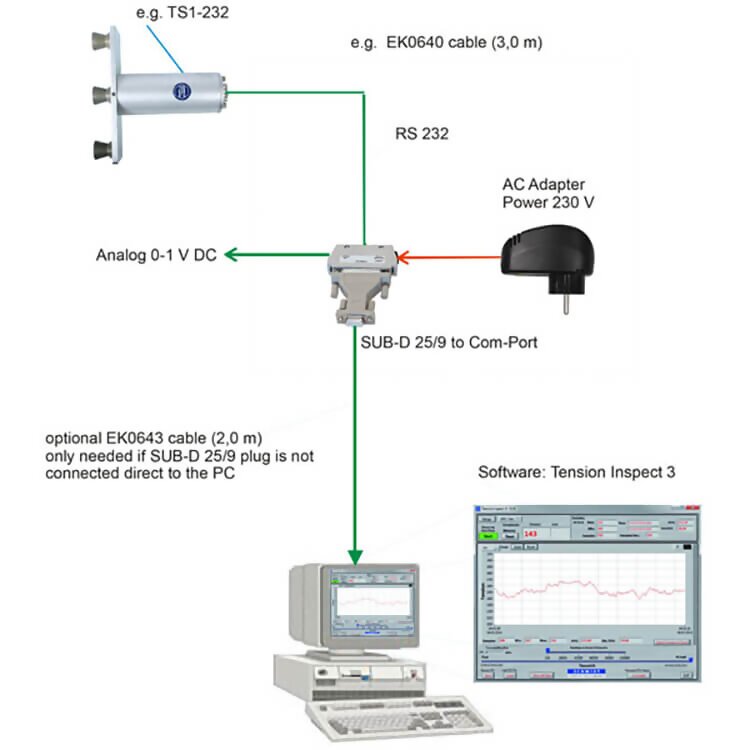

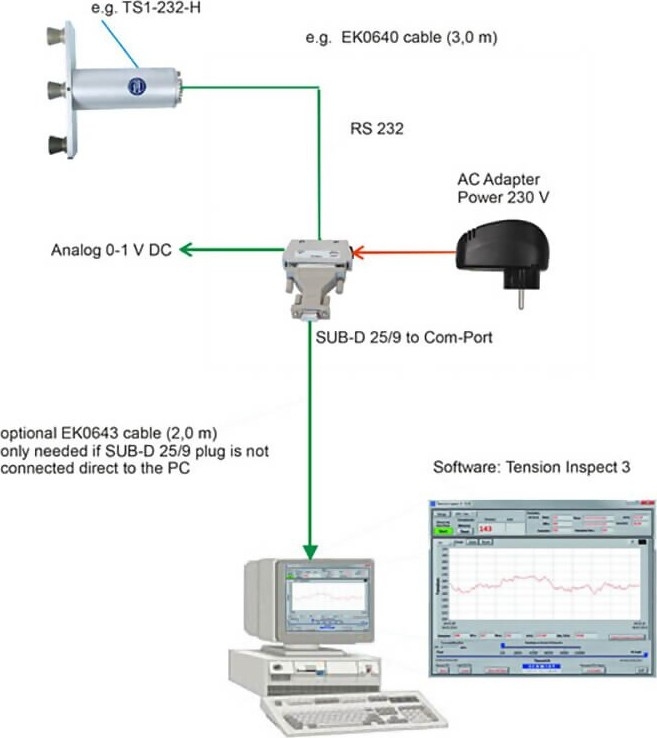

    Code 232
    • Output signal:
      • digital: RS 232
      • analog: 0 - 1 V DC

    Up to 100 readings can be transferred per second, (internal sampling rate max. 4800 times/s)

    Code 232-H
    • Output signal:
      • digital: RS 232
      • analog: 0 - 1 V DC
    • Only for tension range 200 Kg or higher
    • Up to 500 readings can be transferred per second, (internal sampling rate max. 25000 times/s)
    • Only for certain tension ranges and designs available
