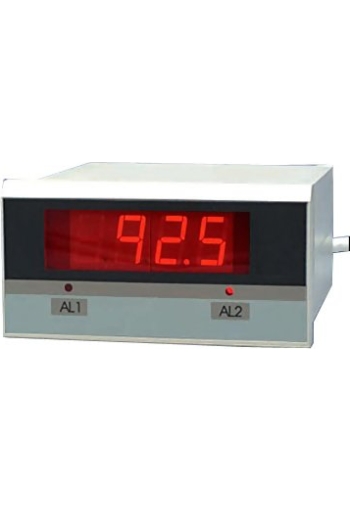

Tension Indicator
Designed for use with the TS621 Strain Gauge Amplifier or the RFSE Tension Sensor
Accurately displays tension values calibrated in any unit of measure on a bright LED display, designed for flush panel mounting.
Calibration and alarm settings are adjusted using screw potentiometers located behind the removable front panel
Features
- Designed for use with the TS621 Strain Gauge Amplifier or the RFSE Tension Sensor
- Provides 24 VDC power for TS621or RFSE
- User-set High & Low Alarm Limits with relays
- 4-20 mA and 0-10 VDC analog output (user set)
Specifications
| Display Range | 0– 1999 (calibrated for any units) |
| Display | 3 1 /2 - digit Red LED, 14.4mm high |
| Decimal Point | User-selected via internal jumper |
| Power Supply | 24 VDC @ 100mA |
| Analog Output | 4–20 mA or 0–10 VDC, user selected |
| Frequency Response | 1 Hz (with damping filter)
40 Hz (without damping filter) |
| Enclosure Material | High-Impact Plastic |
| Dimensions | 3.78" W x 1.89" H x 4.04" D
(96 x 48 x 103mm) |
| Panel Cutout | 92 x 44mm |
| Operating Temperature | 32 to 122° F (0–50° C) |
| Relay Operation | Hi–Hi/Hi or Hi–Lo |
| Relay Rating | 1 Amp @ 250 VAC/ 30 VDC, normally open |
| Power Required | 115/ 230 VAC + 10%, 50/ 60 Hz |
Related Products
RFS
On-Line Tension Sensor- Resolution of 0.1% and better
- Rugged stainless steel housing is environmentally sealed
- Overload protection up to 800%
TS621HD
High Dynamic Amplifier- Intended for amplification of high frequency sensor signals
- Large gain bandwidth; DC to 20kHz
- 24V DC power supply
- Galvanic Isolation
