Fixed Cables, Wire Rope and Guy Wires
0-100 emperical unit scale
Calibration with measurement sample required

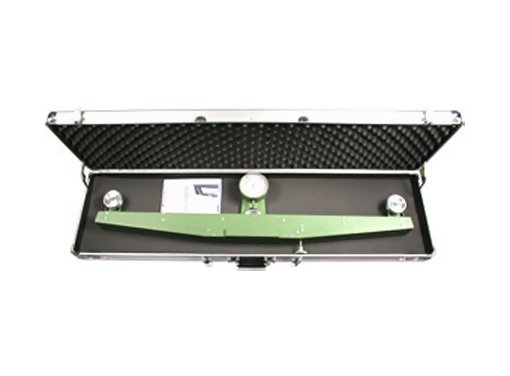

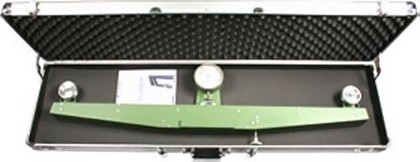

A rugged, lightweight portable field tension meter which measures line tensions - without breaking into the line.

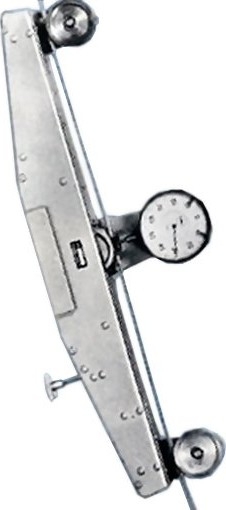

Operation is based on measuring cable deflection caused by the application of a constant force mid-way between two pulley supports. Cable tensions are then determined to an accuracy of ± 1% by referring to a calibration chart especially prepared for the cable size and type being measured.
*Actual tension range depends on the type of material being tested. Values shown are for average mild steel wire rope. Select model by cable diameter
Features
- Rugged Cable / Wire Rope Tension Meter
Specifications
| Dimensions | 42" x 10" x 3.5" |
| Weight | 8 pounds |
| Accuracy | ± 1% |
Ranges
| Model | Range | Cable Diameters |
| SY-1000 | 850 - 5500 lbs | 1/2" - 1" |
