Up to 10 Calibrations - 1 Free
Quick, easy operation
Durable construction
Backlit, digital display with color-bar graphic

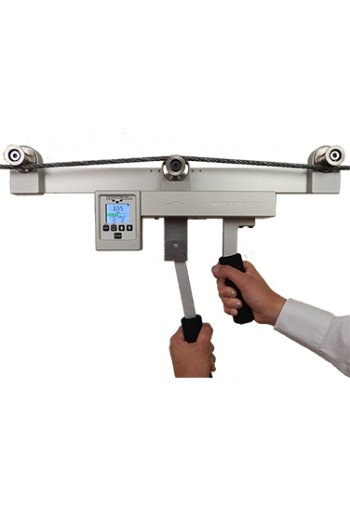

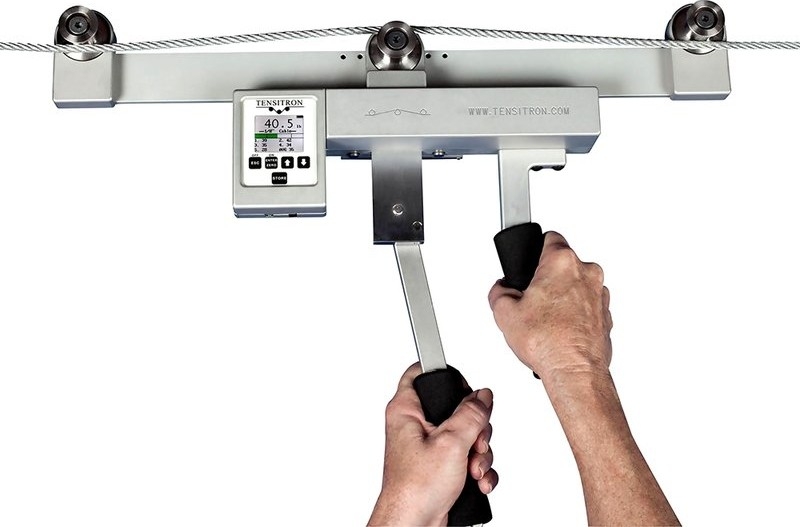

Safely install or monitor cables, wire rope, and other materials with a Tensitron CX-1 Digital Tension Meter for Large Cables. Achieve consistent tension to avoid mechanical stresses, and minimize the risk of damage on cables.
Use CX-1 tension meters to measure the tension for catenary systems, elevator maintenance, telecommunications cables, guy wire, zip lines, theater rigging, and more. Check the tension on flexible cables from 1/16 inch to ¾ inch in diameter

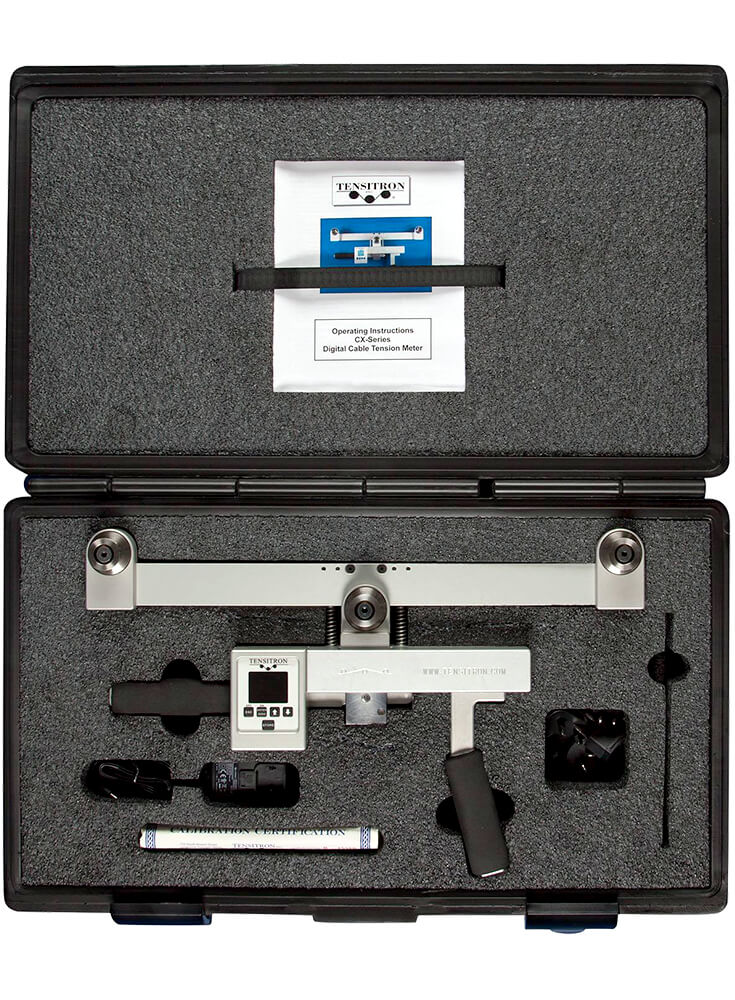

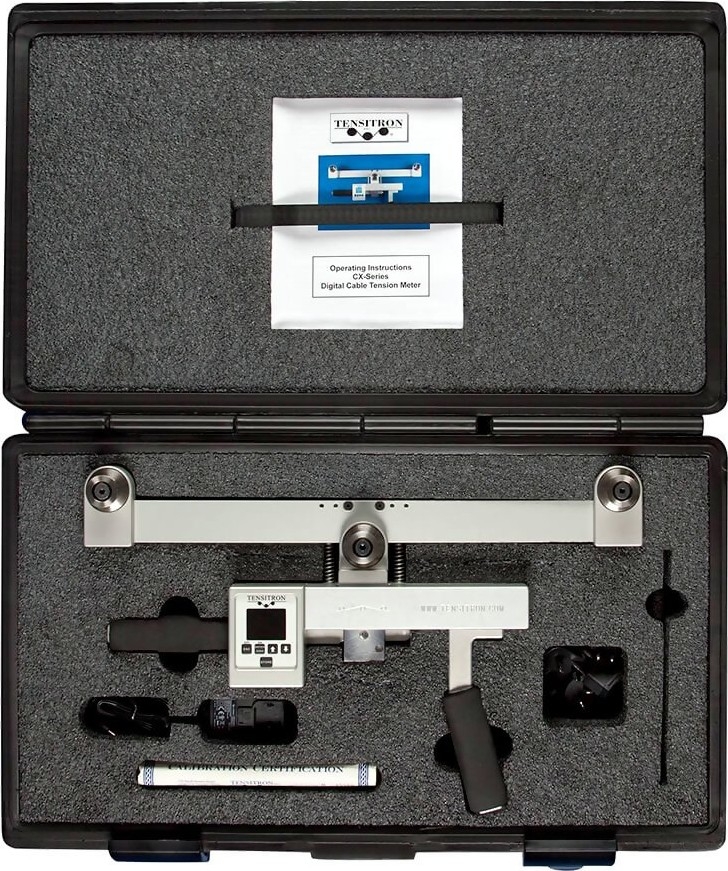

Kit Contents
- Tensitron CX-1 Cable and Wire Rope Tension Meter
- Re-chargeable NIMH battery assembly
- NIST-Traceable Calibration Certificate
- Power supply
- Operating Instructions
- Durable lightweight carrying case with protective foam inserts
Features
Fast & Versatile
- Quickly and easily test cable and wire rope tension
- Quick, easy operation
- Can be used on:
- Catenary systems
- Elevator cables
- Telecommunications cables
- Guy wires
- Zip lines
- Entertainment rigging
- Safety cables
- Tension wire
Accurate
- Improve safety and performance
- Measures tension from 10 to 2,000 lbs. on flexible cables from 1/16” to ¾” in diameter
- Selectable units (lb, kg, or daN)
- Measures slowly moving or stationary materials
- Analog or serial output (optional)
- Custom-calibrated for your application
Dependable
- Save time and costs with durable construction
- Durable, reliable construction
- Continuous or single-point data storage
- Secure-grip handles
- Includes carrying case and NISTtraceable calibration certificate
Convenient
- User-friendly and easy to transport
- Equipped with rollers for moving materials
- Easy-to-read backlit, digital display
- Color-bar graphic provides quick visual of tension levels
Specifications
| Accuracy | +/- 2% full-scale. Accuracy may differ depending on material measured |
| Battery | NiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge |
| Warranty | one year against factory defects |
Comparison Chart
*Contact about measuring more rigid materials and/or diameters up to 3/4 in. (19mm).
