    Product Description
    Up to 10 Calibrations - 1 Free
    Lightweight, compact design
    One-handed, easy operation
    Backlit, digital display with color-bar graphic

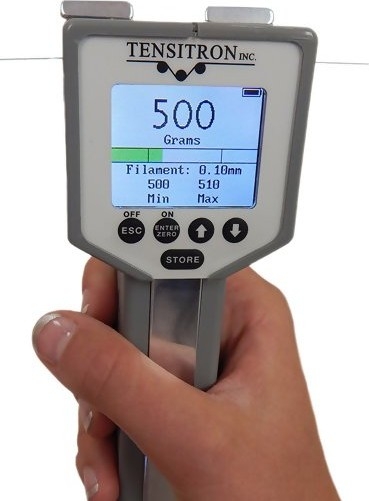

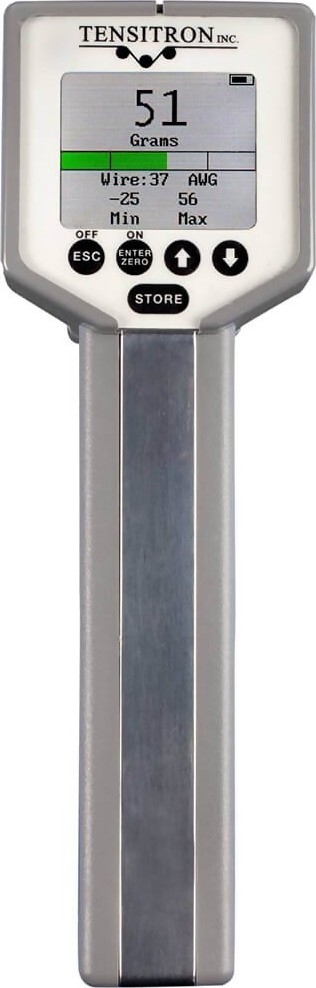

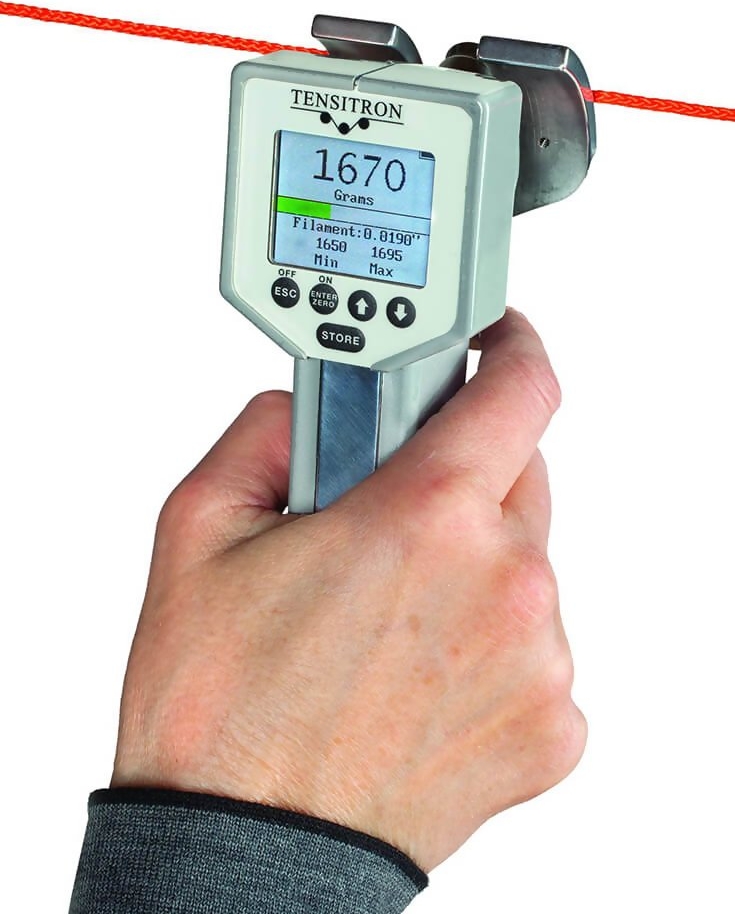

    Maintain process and quality control in manufacturing and testing environments with the Tensitron TX-1 Digital Trigger Tension Meter for Fine Wire & Filaments. Use the Tensitron TX-1 to check tensions on wire, yarn, fiber optics, film, tape, narrow fabrics, and flat materials


    line

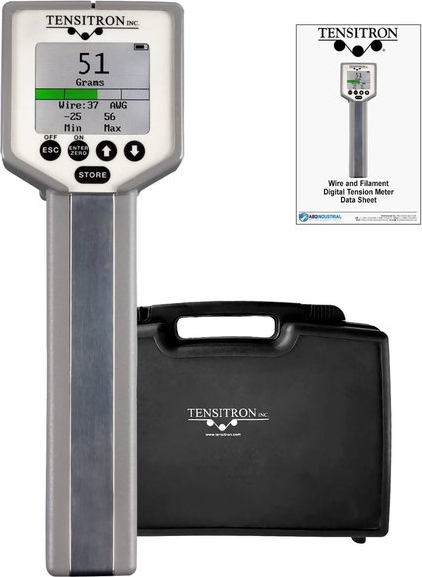

    Kit Contents
    line

    • Tensitron TX-1 Fine Wire & Filament Tension Meter
    • Re-chargeable NIMH battery assembly
    • NIST-Traceable Calibration Certificate
    • Power supply
    • Operating Instructions
    • Durable lightweight carrying case with protective foam inserts


    line
    Features
    line

    Quick, easy tension testing for fine wires and filaments

    • Increase yields and first quality
    • Improve process control
    • Save costs

    Convenient, Reliable Tension Measurement

    • Standard menu includes extensive range of filament and copper wire diameters
    • Custom rollers and calibrations available for other materials and diameters
    • Tension ranges from 0 to 5,000 grams
    • Measures moving or stationary materials
    • Data averaging function evens out readings in fastmoving applications
    • Displays tension in g., lb., or N
    • Data storage and statistics
    • Analog or serial data output (optional)
    • Quick, easy, one-handed operation
    • Easy-to-read, digital display
    • Long-lasting, durable construction
    • Color-bar graphic provides quick visual of tension
    • Speed and Length readings (optional)
    • Mounting bracket available for hands-free use
    • Includes carrying case and NIST-traceable calibration certificate

    Versatile Uses

    • Copper wire, EDM wire, magnet wire
    • Yarn, thread, fibers, filaments
    • Fiberglass roving
    • Carbon fiber
    • Fiber optic strands and thin cables
    • Film, tape, ribbon


    line
    Specifications
    line

    Accuracy+/- 1% full-scale
    BatteryNiMH (NOT lithium ion). Rechargeable. Up to 8 hours continuous use per charge
    Warrantyone year against factory defects


    line
    Comparison Chart
    line

    ModelMaterial Selection (Wire / Filaments)Resolution (grams)Range (grams)
    TX-125-137 AWG to 54 AWG or finer / .0002” to .0044” Filaments0.10-125
    TX-1000-132AWG - 40 AWG or finer / .002” to .008” Filaments110-1000
    TX-5000-128AWG - 40 AWG or finer / .02” to .120” Filaments550-5000
    TX-5EDM-1EDM Wires (.10mm, .15mm, .20mm, .25mm, & .30mm)550-5000


    line
    Downloads
    line

    Tensitron TX-1 Fine Wire & Filament Tension Meter - Data Sheet
    Tensitron TX-1 Fine Wire & Filament Tension Meter - Operating Instructions
    Tensitron TX-1 Fine Wire & Filament Tension Meter - Dimensions
