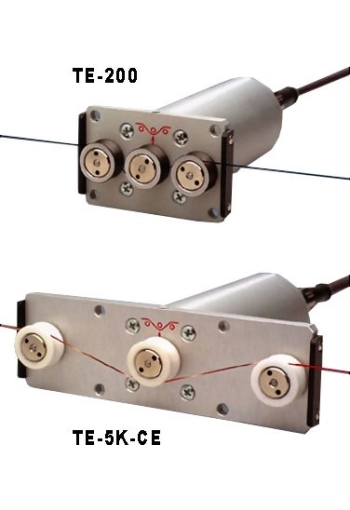

General Purpose Tension Sensor
10 Tension Ranges from 0-50 g up to 0-50.0 Kg
RS232 Serial Output (optional) allows you to connect to a PC for datalogging
10 Tension Ranges
0-50 g up to 0-50.0 Kg
Accurately measure the running line tensions of yarns, fibers, wires, and similar filaments. Compact size for easy installation.
Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.
NEW RS232 Serial Output (optional).
Features
- Precision strain gauge sensing for highest accuracy and repeatability.
- 0-1 V DC output, proportional to tension (0-10 V DC optional) .
- Roller shells are available in chrome-plated steel, hard-coated aluminum, plastic and ceramic.
- Frequency response of 100 Hz
- Optional 10ft. connecting cable, TE-CABLE-CN is recommended. Longer lengths are available.
- RS232 Serial output (optional) allows you to connect your sensor to our SensorView software.
Tension Ranges
| Model | Range | Model | Range |
| TE-50 | 0-50.0 g | TE-2K | 0-2000 g |
| TE-100 | 0-100.0 g | TE-5K | 0-5.00 Kg |
| TE-200 | 0-200 g | TE-10K | 0-10.0 Kg |
| TE-500 | 0-500 g | TE-20K | 0-20.0 Kg |
| TE-1K | 0-1000 g | TE-50K | 0-50.0 Kg |
Images
| Pinouts | Dimensions |
 | |
Specifications
| Accuracy | ± 1.5% FS or better |
| Sensor Excitation | 12-18 VDC, 21mA |
| Middle Roller Deflection | 0.5mm (maximum) |
| Sensor Output | 0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension |
| Frequency Response | 100 Hz |
| Overload Rating | 150% FS |
| Housing Material | Aluminum |
| Operating Temp. | 40 to 105° F (5-40° C) |
| Spacing of Outer Rollers | 40, 100, 150, 200 & 20mm, see dimensions above |
| Roller shell Material | Hardened Steel (Standard)
Chrome-plated Steel (CH)
Hard-coat Aluminum (AL)
Plastic (PL)
Ceramic (CE) |
| Maximum Linear Speed | 1000 m/min (Standard)
3000 m/min (K)
5000 m/min (U) |
| Output (Optional) | Analog: 0 –2 V AC, linearized, app. 500 Hz
Digital: RS 232 (9600,8,N,1) |
