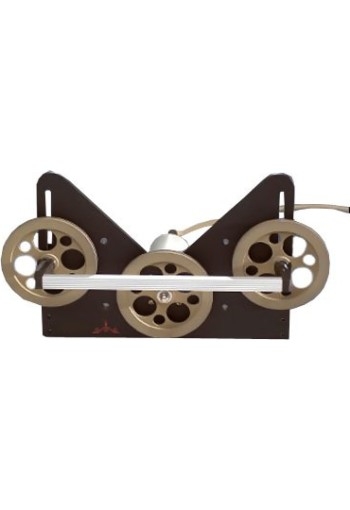

Optic Fiber Tension Sensor
6 Tension Ranges from 0–100 g up to 0–5.00 Kg
Large 70 mm aluminum rollers minimize bending of material which might damage or brake the fragile filament
6 Tension Ranges: 0–100 g up to 0–5.00 Kg
Large 70 mm aluminum rollers minimize bending of material which might damage or break the fragile filament.
The outer rollers are mounted on a movable plate to minimize contact when measurements are not being made.
Tension ranges of 10Kg and higher are available without moveable outer rollers.
Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference
Features
- 70mm V-grooved rollers are rated for speeds up to 5000 m/min.
- Specify TE-CABLE-CC 5 ft. connecting cable (optional, longer lengths are available upon request).
- Frequency response of 100 Hz.
- 0-1 V DC output, proportional to tension (0-10 V DC optional).
- Precision strain gauge sensing insures highest accuracy.
- Optional rollers are available for a wide variety of material profiles.
- Surface mount electronics provide long-term reliability
Specifications
| Accuracy | ± 1.5% FS or better |
| Sensor Excitation | 12-18 VDC, 21mA |
| Middle Roller Deflection | 0.5mm (maximum) |
| Sensor Output | 0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension |
| Frequency Response | 100 Hz |
| Overload Rating | 150% FS |
| Housing Material | Aluminum |
| Operating Temp. | 40 to 105° F (5-40° C) |
| Spacing of Outer Rollers | 40, 100, 150, 200 & 20mm, see dimensions above |
| Roller shell Material | Hardened Steel (Standard)
Chrome-plated Steel (CH)
Hard-coat Aluminum (AL)
Plastic (PL)
Ceramic (CE) |
| Maximum Linear Speed | 1000 m/min (Standard)
3000 m/min (K)
5000 m/min (U) |
| Output (Optional) | Analog: 0 –2 V AC, linearized, app. 500 Hz
Digital: RS 232 (9600,8,N,1) |
Ranges
| Model | Range | Model | Range |
| TF-100 | 0-100 g | TF-1K | 0-1000 g |
| TF-200 | 0-200 g | TF-2K | 0-2000 g |
| TF-500 | 0-500 g | TF-5K | 0-5.00 Kg |
