Online Tension Sensor
Tension sensor with integrated measuring amplifier
Stationary electronic tension sensor, single roller system, for mounting at an existing deflection pulley
Large, hardened guide rollers for minimized material deflection with 29.5 mm groove ⌀
Tension meter is available with digital output for data processing with PC
Features
- V-grooved guide rollers, ball-bearing mounted
- Tension sensor with integrated measuring amplifier
- Various output signals: analog, digital (optional), current (optional), analog DMS (optional)
- Many configurations are possible
- Easy calibration to customized material by operator
- Tension sensor with mechanical overload protection
- Wide variety of roller types can be specified
- Guide rollers 30 or 70 mm ⌀, made of Aluminium or steel

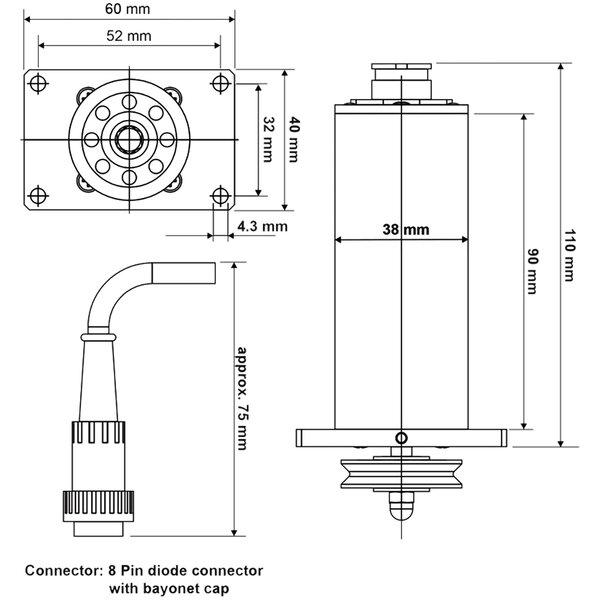

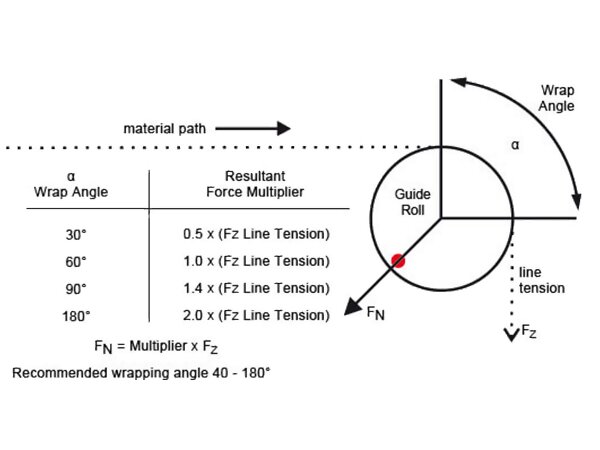

- In- and outcoming angle β min 20°
- Rugged aluminium housing
- Certificate of Compliance with the order 2.1 according EN 10204 is included
- Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
Specifications
| Accuracy | factory calibration material: ±1 % full scale and ±1 digit
other calibration material: ±3 % full scale or better |
| Overload protection | 100 % of tension range |
| Measuring principle | Strain gauge bridge |
| Measuring roller deflection | Max. 0.5 mm |
| Natural frequency | Approx. 500 Hz, depending on tension range |
| Signal processing | Analog (option: digital) |
| Temperature drift | Less than ±0.05 % full scale/°C |
| Output signal | Standard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ
Option: 0 - 10 V DC (analog), 4 - 20 mA (current) or mV/V (DMS) digital RS 232 |
| Damping (fg) | Standard: 30 Hz (other values on request) |
| Temperature range | 10 - 45 °C |
| Air humidity | 85 % RH, max. |
| Power supply | +15...24 V DC, max. 50 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated |
| Housing material | Aluminium |
| Weight, net (gross) | Approx. 250 g (approx. 400 g) |
Available Models
| Model | Resultant Force Capacity (G/KG) | Resultant Force Capacity (Newtons) |
| TSR-1000 | 1000 grams | 10 N |
| TSR-2000 | 2000 grams | 20 N |
| TSR-5K | 5 Kg | 50 N |
| TSR-10K | 10 Kg | 100 N |
Guide Rollers
| V-Groove | Line Speed
Vmax...m/min | Roller Material |
| Standard | 4000 | Hardened steel |
| Code F | 4000 | Hard-coated aluminium |
| Code FB | 4000 | Tempered steel |
Output Signal

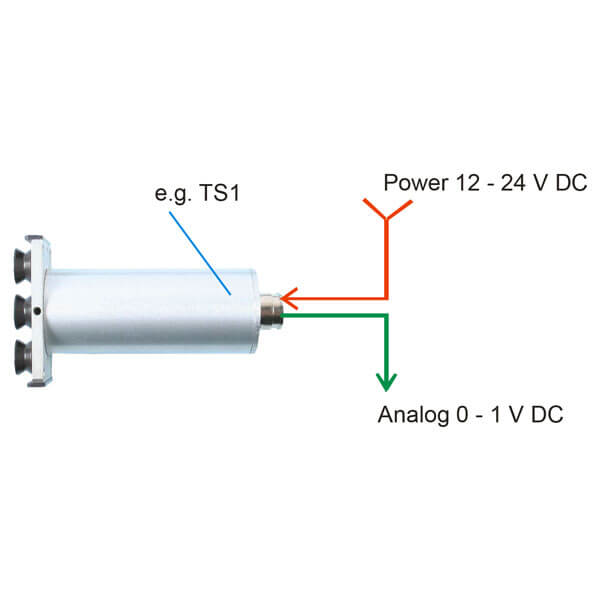

Standard - Output signal: 0 - 1 VDC
- Click image for more information
|  |

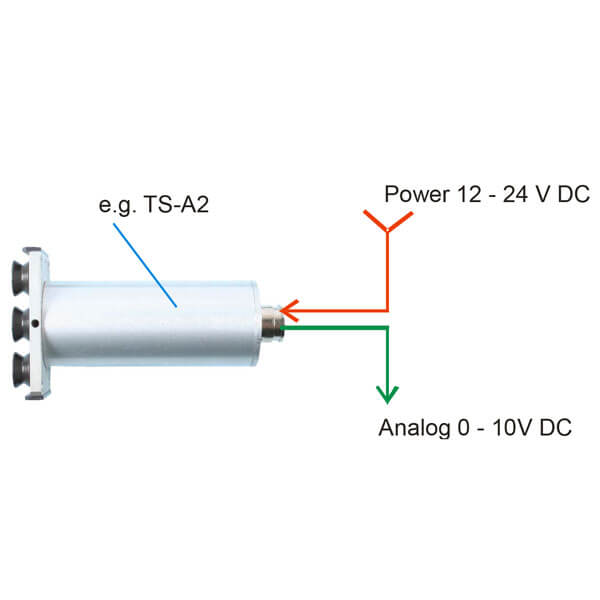

Code A2 - Output signal: 0 - 10 VDC
- Click image for more information
| |

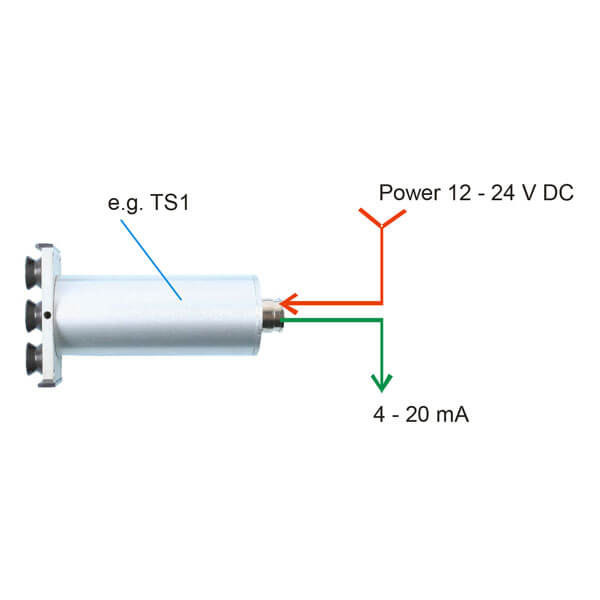

Code A3 - Output signal: 4 - 20 mA DC
- Click image for more information
| |

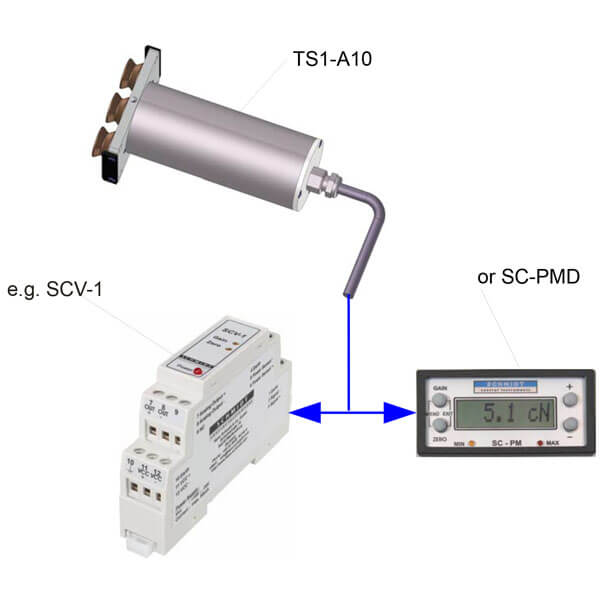

Code A10 - Output signal: mV/V
- for sensors without amplifier
- Click image for more information
| |

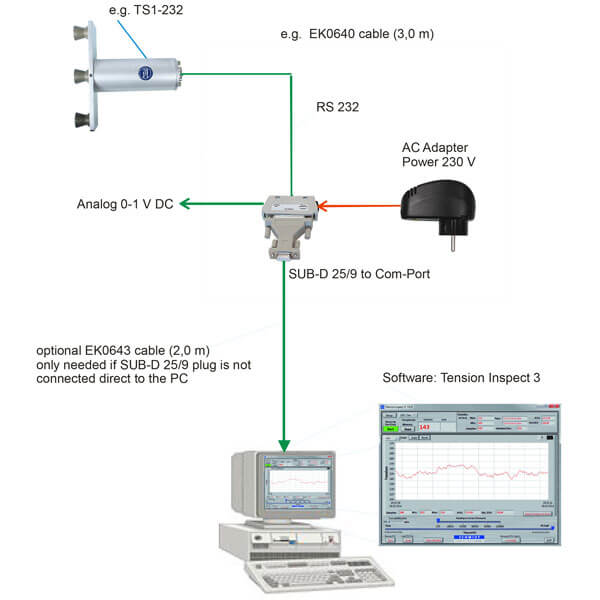

Code 232 - Output signal
- digital: RS 232
- analog: 0 - 1 V DC
- Up to 100 readings can be transferred per second, (internal sampling rate max. 4800 times/s)
- Click image for more information
| |
Code 232-H - Output signal
- digital: RS 232
- analog: 0 - 1 V DC
- Only for tension range 200 Kg or higher
- Up to 500 readings can be transferred per second, (internal sampling rate max. 25000 times/s)
- Only for certain tension ranges and designs available
- Please contact us for details
- Click image for more information
| |
