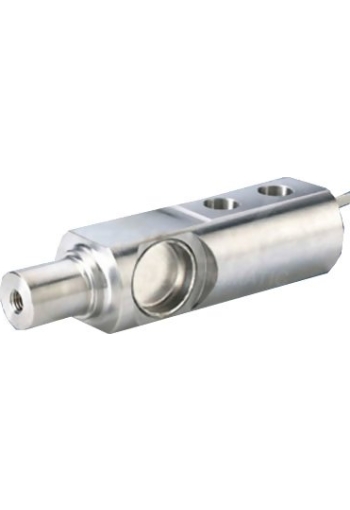

    High-Capacity, Radial Force Online Tension Sensor
    3 Ranges up to 1500 KG

    3 Ranges

    500 KG (1100 LBS/5000N)
    1000 KG (2200 LBS/10000N)
    1500 KG (3300 LBS/15000N)


    line
    Features
    line

    • Designed as a single-roller system -uses an existing reversing point for tension measurement.
    • Rugged stainless steel housing is environmentally sealed.
    • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available.
    • System of protection IP67 - waterproof.
    • Overload protection up to 800%.
    • Resolution of 0.1% and better


    line
    Specifications
    line

    Measuring Ranges500 KG (1100 LBS/5000N)
    1000 KG (2200 LBS/10000N)
    1500 KG (3300 LBS/15000N)
    Measuring PrincipleStrain Gauge
    Accuracy±0.5% Full Scale or better
    Sensor Excitation10 VDC (12 VDC, max.)
    Sensor Output1.5 mV/V
    Input Resistance1000 Ohms
    Output Resistance1000 Ohms
    Overload Protection400 - 800%
    Deflection0.07mm (max.)
    Housing MaterialStainless Steel
    Environmental ProtectionIP67 (Water-Proof)
    Cable Type4.5 mm diameter shielded cable with bare leads
    Cable Length10 ft. (3 meter), longer lengths available. Inquire
    Operating Temperature15 to 122° F (-10 to 50° C)
    Sensor Excitation19 - 28 VDC
    (24 VDC recommended @ 36 mA)
    Sensor Output0 - 10 VDC (standard)
    4 - 20 mA (optional)
    Fequency Responce5 msec (200 Hz)
    Zero Adjustment±45%
    Weight1100g
