Tramex WDIK5.1 Water Damage Restoration Inspection Kit

See More Tramex Moisture Meters

Tramex WDIK5.1 Water Damage Restoration Inspection Kit

See More Tramex Moisture Meters
This product has been discontinued

Product Description
Click to view new version released: Tramex WDIK Water Damage Restoration Inspector Kit
Industry:  Water Damage Restoration

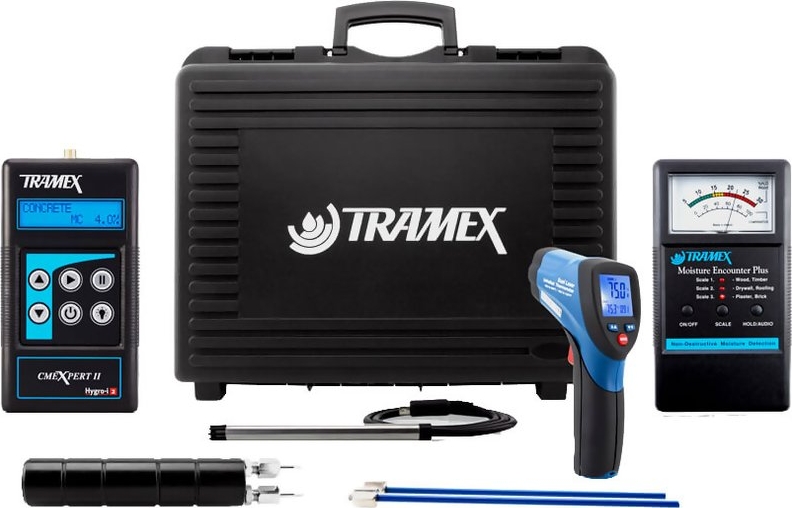

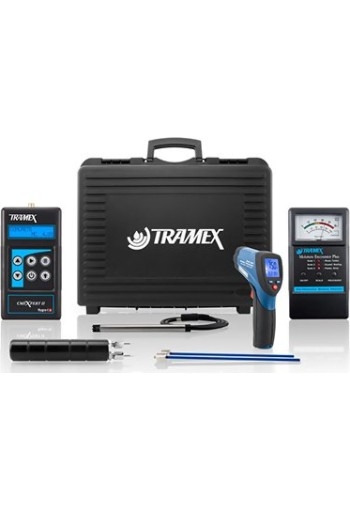

Kit Contents:

  • CMEX2 Non-destructive, digital concrete moisture meter.
  • MEP Non-destructive analog moisture meter for general building materials.
  • HIPP-IE Hygro-I Probe with Electronic Interface Cable - most advanced and cost efficient method of RH testing of the sub-floor available
  • HH14TP30 Heavy-duty Wood Pin-Type Probe - measures the moisture content of wood. Hand Held Electrode 5/8" Pins & Cable is a practical and accurate way of determining that wood is at the correct moisture level for floor covering installation
  • (8) Hygro-I Hole Liners  - used with the Hyrgo-i Probe and are ASTM F2170 complaint. (Requires a 3/4" concrete drill bit which is not included in kit)
  • SP200 Long insulated pins - for deep wall inspection
  • IRTX Infrared surface thermometer - for testing surface temperatures and can be used in conjunction with the Hygro-i ® sensor to monitor dew point conditions.
  • Heavy-duty carrying case

Measuring Range:

  • Moisture Content of Concrete (NDT): 0 to 6.9 % (moisture by weight)
  • Moisture content of wood: Pin-type Probe 7-40%. NDT MEP 5-55%
  • Gypsum Scale: 0 to 10 (comparative)
  • Reference Scale for Building Materials: 0 to 100 (comparative)
  • Relative Humidity: 0 to 99%


The Tramex WDIK5.1 Water Damage Restoration Inspection Kit is acomplete kit for moisture testing of concrete & wood flooring and numerous other building materials such as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. Featuring the Tramex MEP moisture meter for non-invasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The Tramex CMEX2 digital concrete moisture meter allows for testing per ASTM F2659 and the reusable Hygro-i ® probe for testing relative humidity, temperature and dew point in the environment, or performing ASTM F2170 (or Hood Method with optional Hood) for relative humidity readings in concrete slabs. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the Hygro-i ® probe. A heavy-duty pin-probe measures Moisture Content in wood. The Water Damage Restoration Inspection Kit comes in a protective heavy-duty carrying case with die-cut foam lining.

line
Features
line

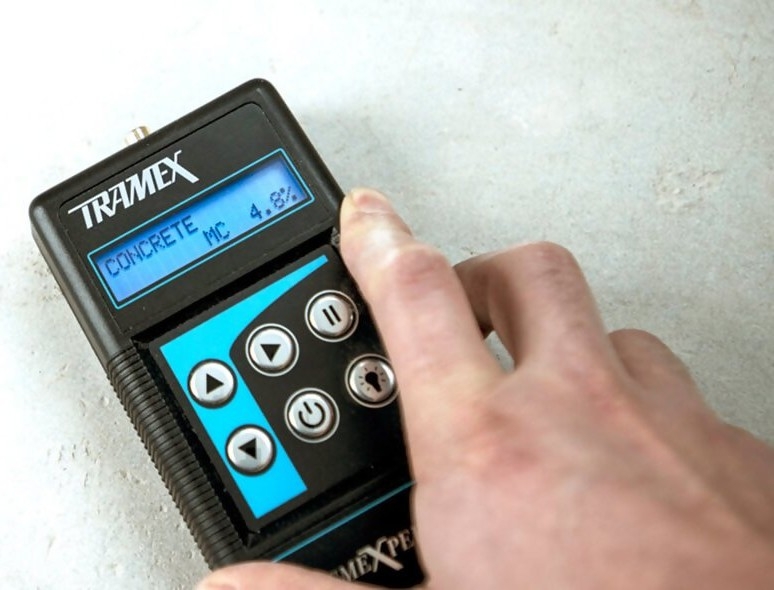

CMEX II

  • Measures up to 6.9% Moisture Content in Concrete.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
  • Attaches to a relative humidity Hygro-i ® probe for in-situ testing of concrete and ambient conditions.
  • 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment.

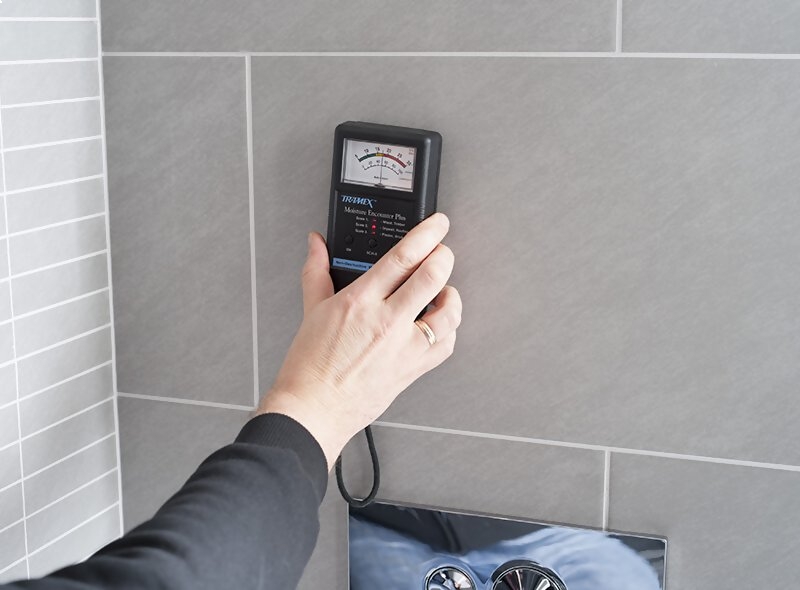

MEP

  • Wide range of readings for wood from 5% to 30%
  • Deep signal penetration up to 1¾” (30mm) into the materials being tested without the need to damage the surface.
  • Three ranges of sensitivity: Wood, Timber / Drywall, Roofing / Plaster, Brick – making it ideal for testing various building materials.

line
Kit Contents
line

  • MEP - NDT* moisture meter for general building materials.
  • CMEX II - concrete moisture and humidity meter.
  • Relative Humidity probe.

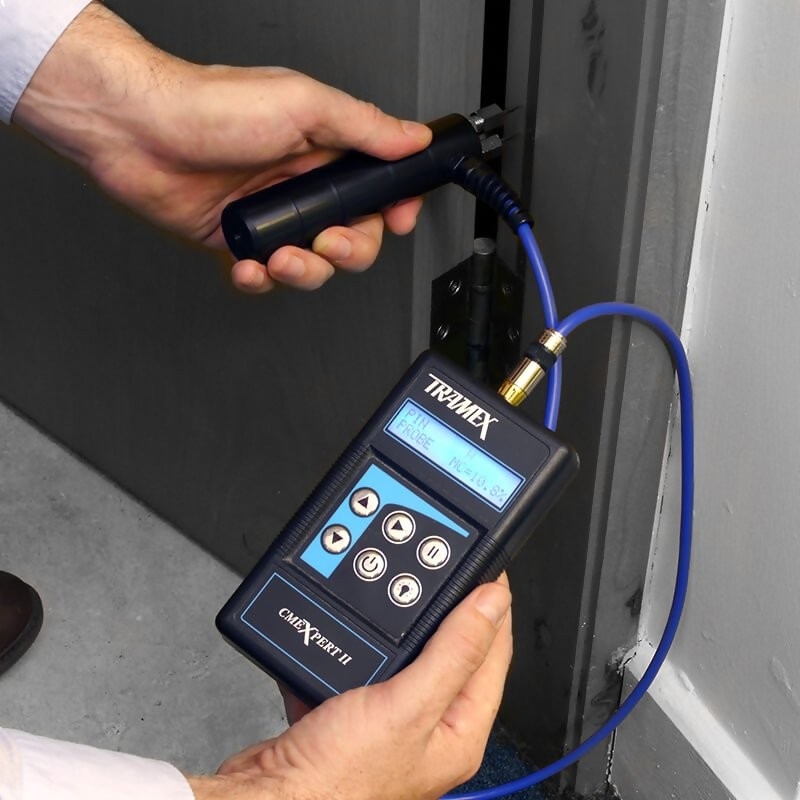

  • Heavy-duty pin-type wood probe.
  • 7" insulated pins.
  • Infrared thermometer.
  • * NDT - non-destructive test


line
Specifications
line

Size13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm)
Weight2.49lbs (1.13kg)
Power2 x 9 volt PP3
BatteryIncluded
Measuring range - MEP
Depth of penetration(NDT*) 1¼" (30mm) (in wood, drywall)
Moisture content for Wood(NDT*) 5 to 30 %
Reference scale for building materials0 to 100
Measuring range - CMEX II
Depth of penetration in concrete(NDT*) approx. ." (20 mm)
Moisture content for Concrete(NDT*) 0 to 6.9 %
Comparative for Gypsum floor screed(NDT*) 0 to 10
Reference scale(NDT*) 0 to 100
Relative Humidity (RH probe)0 to 99%
Moisture content for wood (with pin probes)7 to 40 %

* NDT - non-destructive test


line
Related Products
line

Tramex CMEX2
CMEXpert II Concrete Moisture Encounter Expert CMEX II

  • A handheld electronic moisture meter used for testing moisture conditions in concrete and other floor slabs and screeds. Versatile, precise and easy to use, theTramex CME4 allows the user to make multiple tests over a large area in the shortest possible time
related

line

Tramex MEP
Moisture Encounter Plus Moisture Meter

  • The Tramex MEP Moisture Encounter Plus is a non-destructive overall building inspection moisture meter based on Impedance measurement which has applications for numerous industries. It has many unique features that make moisture measurement and evaluation fast, precise and versatile
related

line

Tramex WDZK5.1
Water Damage Restoration EZ Kit

  • A compact kit for instant and precise non-destructive testing of moisture conditions in numerous building materials such as concrete and other cementitious materials per ASTM F2659, as well as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing
related

line

Tramex WDMK5.1
Water Damage Restoration Master Kit

  • The ultimate Tramex kit for moisture testing of concrete & wood flooring and numerous other building materials such as drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing
related


line
Downloads
line

Tramex WDIK5.1 Water Damage Restoration Inspection Kit - Quick Guide
Tramex WDIK5.1 Water Damage Restoration Inspection Kit- Data Sheet
Tramex CMEX2 CMEXpert II Concrete Moisture Encounter Expert CMEX II - Quick Guide
Tramex CMEX2 CMEXpert II Concrete Moisture Encounter Expert CMEX II - Instruction Manual
Tramex CMEX2 CMEXpert II Concrete Moisture Encounter Expert CMEX II - Data Sheet
Tramex MEP Moisture Encounter Plus Moisture Meter - Quick Guide
Tramex MEP Moisture Encounter Plus Moisture Meter - Instruction Manual
Tramex MEP Moisture Encounter Plus Moisture Meter - Data Sheet
Tramex Moisture Meters - Accessories
