Tramex IQCK Flooring Installation Quick Check Kit

See More Flooring Moisture Inspection Kits

Tramex IQCK Flooring Installation Quick Check Kit

See More Flooring Moisture Inspection Kits
Price:
$855.00
    warrenty

    Product Description
    Avoid Moisture Related Floor Failures with this Quick Check Procedure at Time of Install
    Non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation

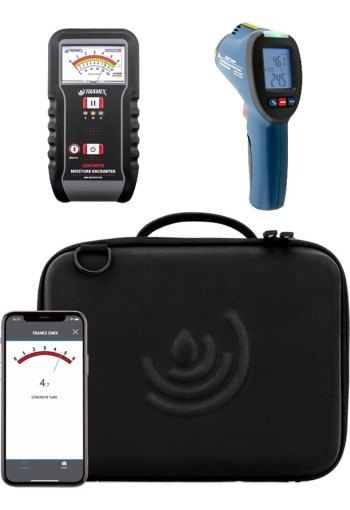

    Compact Kit for performing the Tramex Installation Quick Check for Concrete Moisture
    Avoid Moisture Related Floor Failures with this Quick Check Procedure at Time of Install

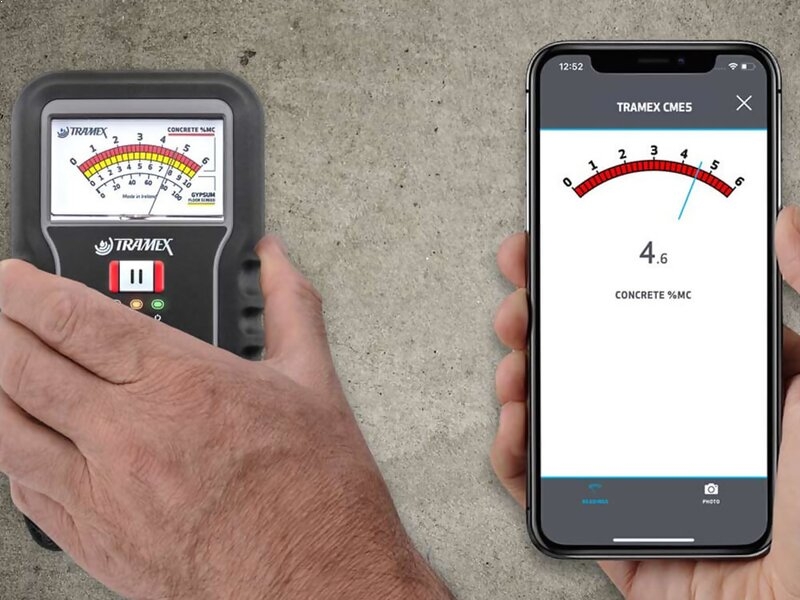

    The Tramex IQCK Flooring Installation Quick Check Kit is a compact kit for instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation. Even if pre-installation tests have been performed, checking the %MC and ambient dew-point conditions at the time of installation is crucial to ensure successful installation. The Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter allows for non-destructive quantitative testing of concrete moisture content using Gravimetric testing as a baseline. The Tramex IRT2DP Infrared Surface Thermometer And Dew Point Detector provides surface temperature readings and ambient temperature and dew point conditions to avoid condensation-related issues at the time of installation and floor failures. The Tramex Meters App allows for data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts. The Tramex Flooring Installation Quick Check Kit comes in a Tramex Easy-travel case.


    line
    Kit Contents
    line


    line
    Specifications
    line

    Kit:

    Size13.2” x 9.5” x 3.2” (33.5cm x 24cm x 8cm)
    Weight2.8lbs (1.3kg)
    Power2 x AA batteries, 1 x 9 volt PP3 battery

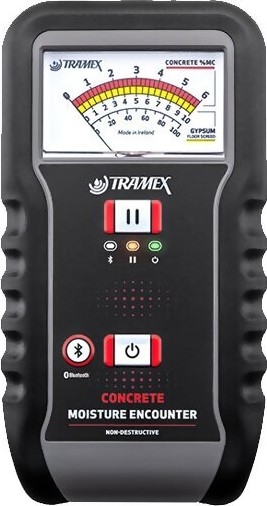

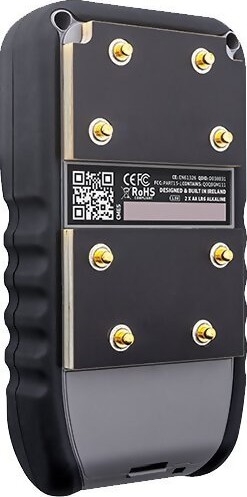

    Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter:

    Size6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm)
    Weight12.1oz (344g)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayAnalogue
    Depth of penetrationapprox. ¾" (20 mm)
    Moisture Content for Concrete0 to 6 %
    Comparative for Gypsum floor screed0 to 10
    Reference scale0 to 100

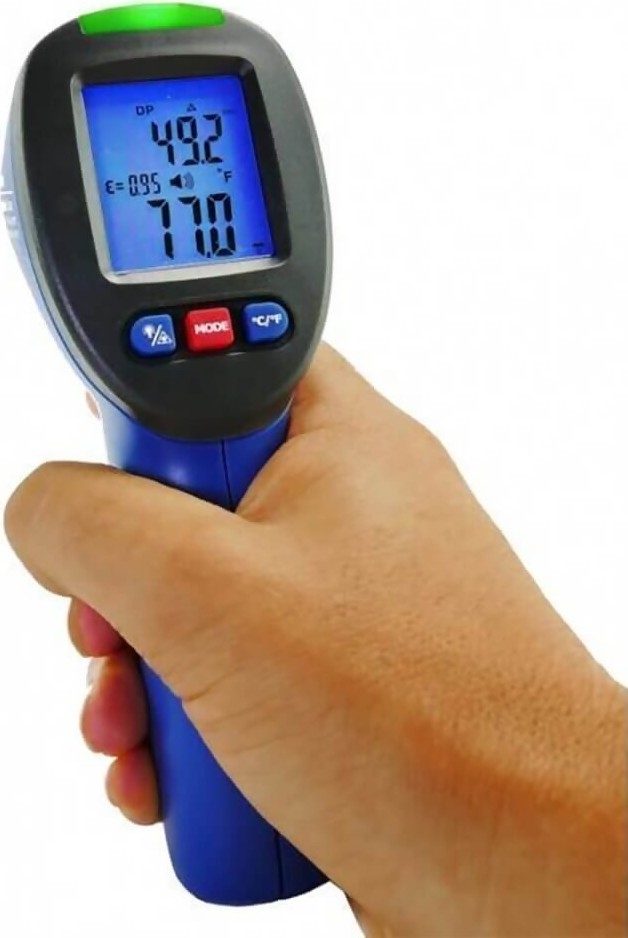

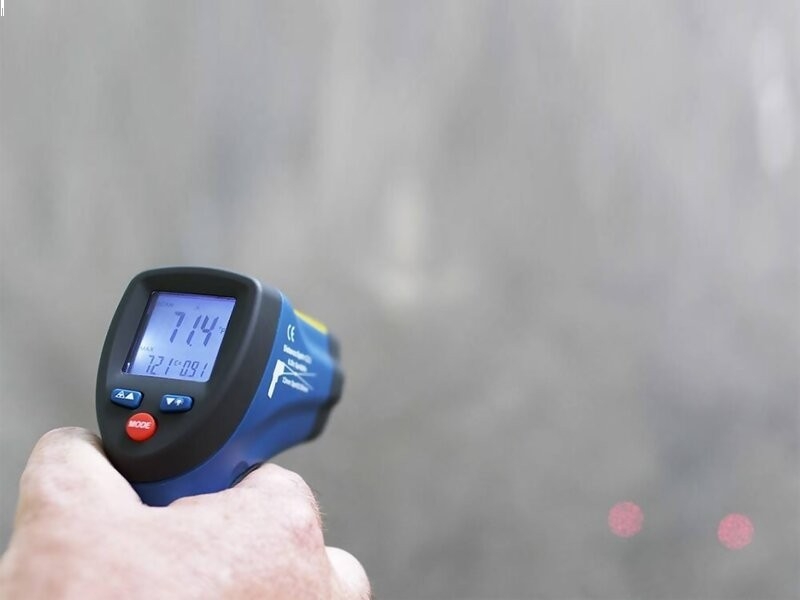

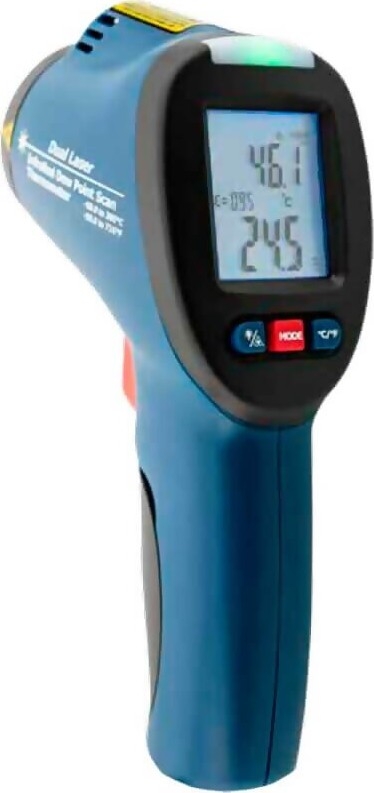

    Tramex IRT2DP Infrared Surface Thermometer And Dew Point Detector:

    Temperature Range-58ºF to 716ºF (50ºC to 380ºC)
    Display resolution0.1
    EmissivityFixed at 0.95
    Temperature accuracy-58º to 32ºF / -50º to 20ºC: +/- 32º to 716ºF / 3.5ºC 20º to 380 ºC: +/-1.5ºC
    Wavelength range8 – 14um
    Humidity Range0 - 100% RH
    Humidity accuracy+/-3.5% (20% to 80%)
    Dew point temperature(-22 to 212)ºF / (-30 to 100)ºC
    D:S20:1
    Operating temp32 to 122ºF (0 to 50ºC)
    Storage temp-4 to 140ºF  (-10 to 60ºC)
    Relative humidity10%-90%RH operating, <80%RH storage


    line
    Related Products
    line

    Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter

    • Clear easy-to-read analog dial
    • Instant and precise readings to a depth of approximately  3/4" into the slab
    • Reproducible and reliable results
    related

    line


    Tramex IRT2DP Infrared Surface Thermometer And Dew Point Detector

    • Calibration Check Box for Moisture Encounter 5 - ME5
    related

    line


    Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    related

    line

    Tramex Extension Handle for ME5, CME5 and CMEX5

    • The Extension Handle can be used with the ME5CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
    • Order Code: E5-HBS

    line

    Tramex Calibration Check Plate

    • Calibration Check Plate Tramex CME5, CMEX5, CME4 and CMEX2
    • Order Code: CALCRH


    line
    Downloads
    line

    Tramex IQCK Flooring Installation Quick Check Kit - Data Sheet
    Tramex CME5 Concrete Moisture Encounter - Quick Guide
    Tramex CME5 Concrete Moisture Encounter - Instruction Manual
    Tramex CME5 Concrete Moisture Encounter - Data Sheet
    Tramex DL-RHTX Feedback DataLogger - Instruction Manual
    Tramex Meters App - Visualizing, Photographing and Geo-tagging
    Accessories for Tramex Moisture Meters - Online Catalog
