Rapid detection function
Precise non-contact measurements
Dual laser targeting

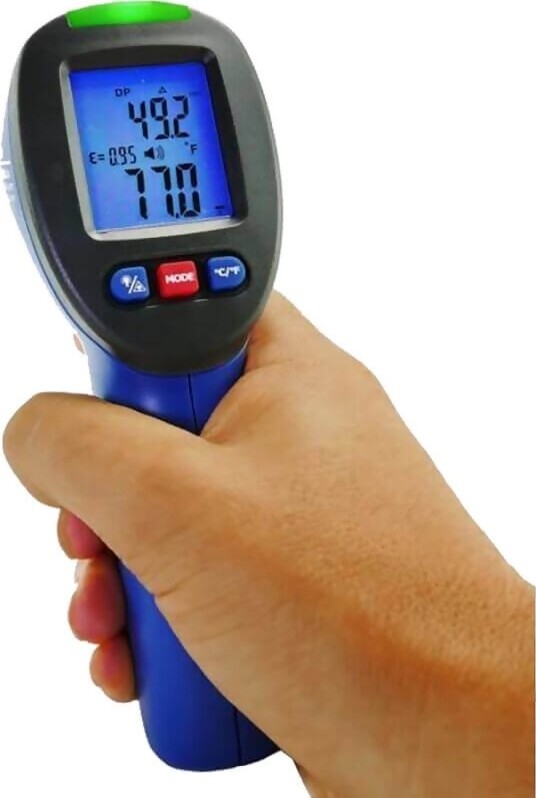

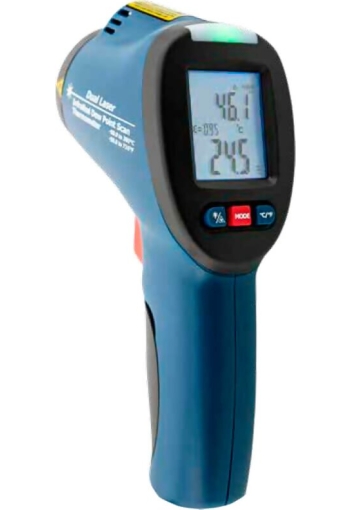

The Tramex IRT2DP Infrared Surface Thermometer And Dew Point Detector is a handheld dual laser, non-contact Infrared Thermometer and Dew Point detector with tricolor light (and audible) indication as reading goes close to dew point temperature. It is used to measure and display ambient and surface temperature, relative humidity & dew point temperature.
Kit Contents
- Tramex IRT2DP Infrared Surface Thermometer And Dew Point Detector
- Power Supply 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Features
- Rapid detection function
- Precise non-contact measurements
- Dual laser targeting
- 3 Mode display- Humidity / Dew Point Temperature / Ambient Temperature
- Green - Yellow – Red LED light and audible signal indicate proximity to Dew Point Temperature
- Automatic Data Hold
- User selectable ºC or ºF
- Pre-set Emissivity of 0.95
- Backlight LCD display
- Unique flat surface, modern housing design
Specifications
| Temperature Range | -58ºF to 716ºF (50ºC to 380ºC) |
| Display resolution | 0.1 |
| Emissivity | Fixed at 0.95 |
| Temperature accuracy | -58º to 32ºF / -50º to 20ºC: +/- 32º to 716ºF / 3.5ºC 20º to 380 ºC: +/-1.5ºC |
| Wavelength range | 8 – 14um |
| Humidity Range | 0 - 100% RH |
| Humidity accuracy | +/-3.5% (20% to 80%) |
| Dew point temperature | (-22 to 212)ºF / (-30 to 100)ºC |
| D:S | 20:1 |
| Operating temp | 32 to 122ºF (0 to 50ºC) |
| Storage temp | -4 to 140ºF (-10 to 60ºC) |
| Relative humidity | 10%-90%RH operating, <80%RH storage |
