Rex RX-DD-5-B Type B Digital Durometer with Timer for Harder elastomers and plastics. Use above 93 A scale

See More Durometers

Rex RX-DD-5-B Type B Digital Durometer with Timer for Harder elastomers and plastics. Use above 93 A scale

See More Durometers
Price:
$1,545.00
    warrenty

    Product Description

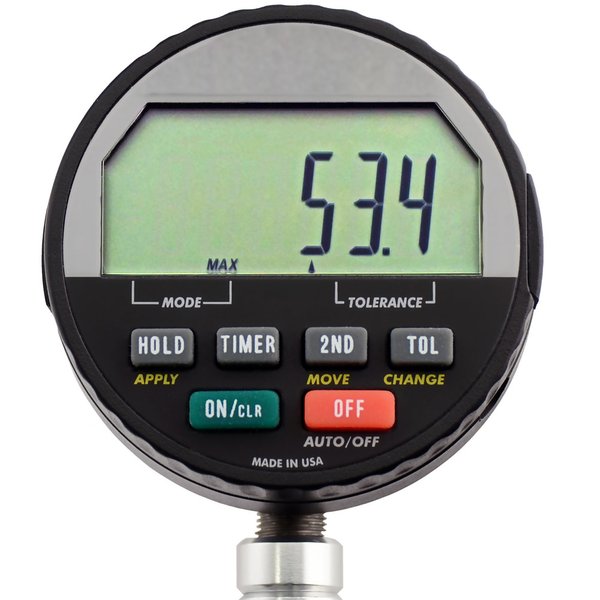

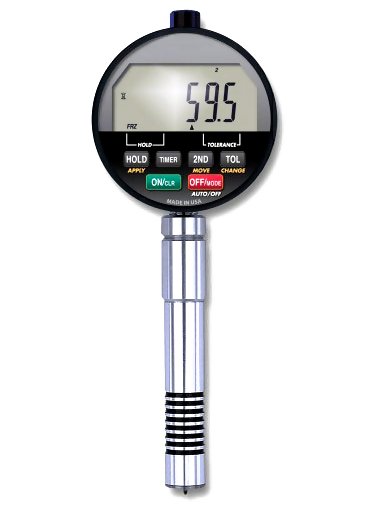

    Rex RX-DD-5 Digital Durometer with Adjustable Timer
    Adjustable Measurement Timer with Onscreen Countdown
    Available Scales: A, D
    Store and View up to 200 Measurements
    Includes NIST Calibration Certificate
    Conforms to ASTM D-2240

    Available Scales: A, D, B, C, DO, E, M, O, OO, OOO, ASKER C

    The Rex RX-DD-5 digital durometer is the latest innovation for performing timed hardness testing. The Rex RX-DD-5 is equipped with an adjustable timer and onscreen countdown that can be set to delay from 0-30 seconds. When enabled, the timer function will be automatically activated when the presser foot meets the test specimen. Up to 200 readings can be stored and viewed inside the durometer or downloaded through the USB port.


    line

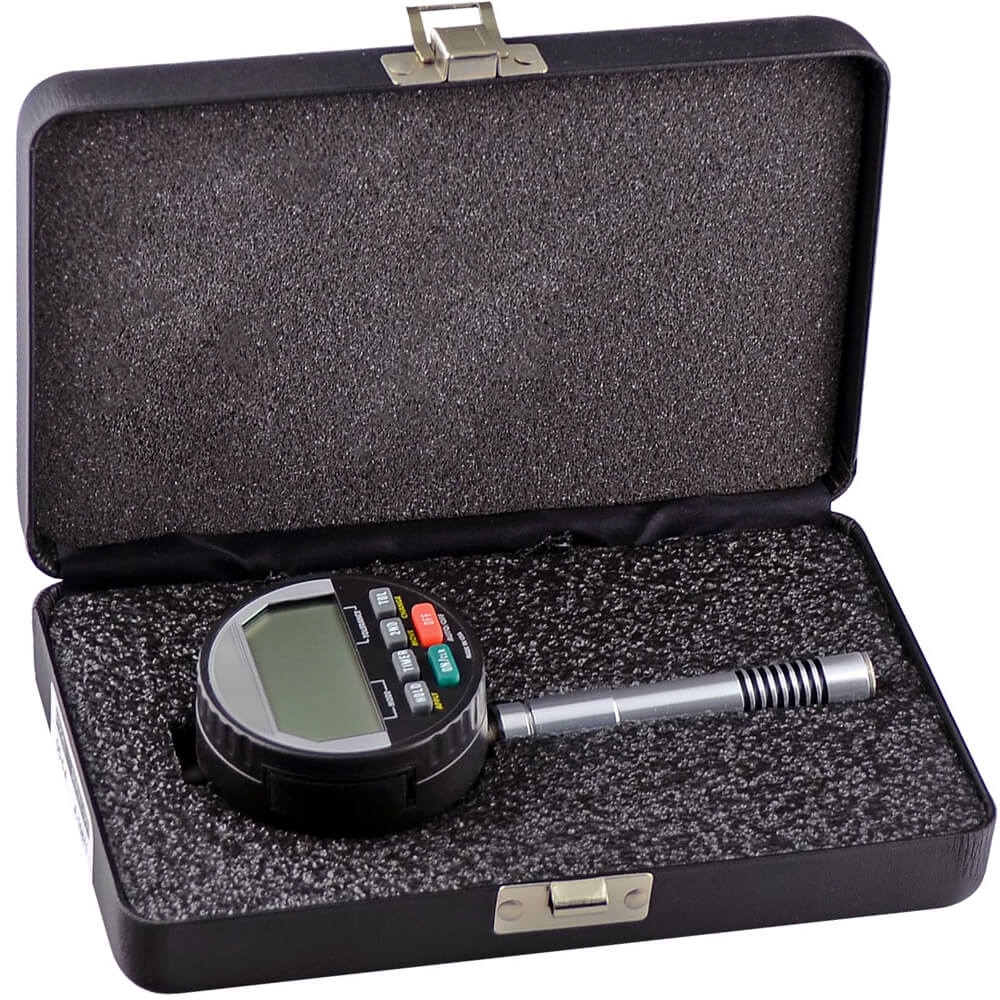

    Kit Contents
    line

    • Rex RX-DD-5 Digital Durometer with Adjustable Timer
    • 115V AC Adapter
    • Calibration certificate in a foam-fitted metal
    • Instruction Manual
    • Carrying case


    line
    Features
    line

    • Conforms to ASTM D-2240 (ISO, DIN and JIS Conformance Also Available)
    • Adjustable Measurement Timer with Onscreen Countdown
    • Store and View up to 200 Measurements
    • High and low buttons for setting tolerance limits
    • Holds reading until reset
    • Dial rotates up to 270°
    • Extra-Large Number Display
    • Download and Collect Data Using USB Smart Cable (Sold Separately)
    • Custom Made Carrying Case
    • Includes NIST Calibration Certificate
    • One Year Warranty


    line
    Specifications
    line

    Measruing Range0 - 100 Units
    Resolution0.1 Units
    Accuracy*±1 durometer unit (A,B,C,D,E,O,DO) | ±2 durometer units (OO,OOO) | ±4 durometer units (M)
    Tolerance± 0.5 at "100" and -0 +1 at "0"
    Power Supply(2) 3V CR-2450 Batteries
    115V AC Adapter Included. 230V AC Adapter Optional
    Mounting Thread5/16-40
    Dimensions2.25" x 6.125"
    Weight7.15 oz (202.69 grams)
    Warranty1 year
    RS232 Output9600 baud, no parity, 8 data bits, 1 stop bit (requires external power)

    * Note: per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.


    line
    Portable Battery-Powered Printer for Hardcopy Documentation
    line

    Need a hard copy printout of your measurement results?

    Our P-190 Printer with the G03-0086 Cable will allow you to print each reading as it's shown on the display. The user simply depresses the thumb switch each time they want a value transferred to the printer. Simple yet effective!

    The battery-powered P-190 Printer uses standard rolls of adding machine paper, unlike thermal printers the printout will not fade over time. It is supplied with a battery charger for operation on all power worldwide.

    Order the following items as shown in the accessories section of the BUY NOW section at the bottom of this page.
    P-190 Printer
    G03-0086 Data Transfer Cable and Thumb Switch


    line
    Related Products
    line

    Rex OS-1 Durometer Test Stand

    • Durometer Operating Stand for use with type A, B, C, D, DO, E, O, OO, and OOO

    line

    Rex OS-2 Durometer Test Stand

    • Type A, B, E and O scale durometers

    line

    Rex DD-4 Precision Digital Shore Durometer RX-DD

    • Available Scales: A, AO, B, C, D, DO, E, M, O, OO, OOO (Asker, ISO, DIN & JIS Scales also available, inquire)

    line

    Rex Durometer Test Block Kits

    • NIST Traceable Certificates of Conformance


    line
    Downloads
    line

    Rex RX-DD-5 Digital Durometer with Adjustable Timer - Data Sheet
    Rex RX-DD-5 Digital Durometer with Adjustable Timer - Instruction Manual
    Rex RX-DD-5 Digital Durometer with Adjustable Timer - Instruction Manual Supplement
    Rex RX-DD-5 Digital Durometer with Adjustable Timer - Drivers Instruction Manual
    Rex RX-DD-5 Digital Durometer with Adjustable Timer - USB Drivers 32 Bit
    Rex RX-DD-5 Digital Durometer with Adjustable Timer - USB Drivers 64 Bit
