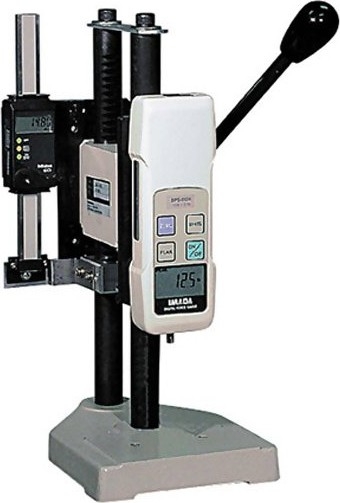

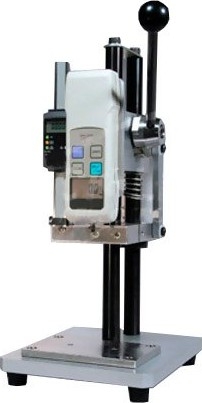

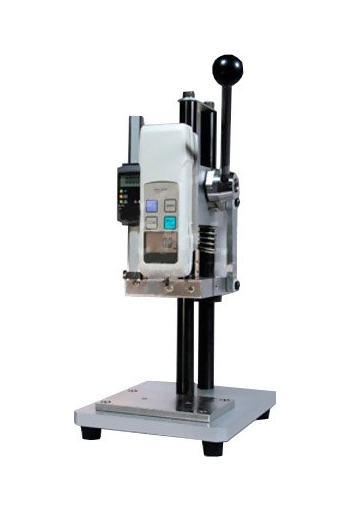

Imada NLV-220 Vertical Lever Test Stand
Force Gauge sold Separately
2 Models for testing Tension or Compression
220 Lb Capacity
Capacity: 220 Lbs
Model Imada NLV-220 vertical manual lever test stands provide maximum versatility and reliability. Lever action provides quick, consistent testing. A pull down on the lever creates either compression or tension, depending on the model. A return spring resets the lever on compression models. The stands will accommodate any of the standard range force gauges and can be equipped with a precision digital distance meter. The optional extender plate increases clearance to 14" for larger samples. The Imada NLV-220 is perfect for compression and tension applications where rapid action is desired.
Opional digital distance meter available.
Features
- Imada NLV-220-C Configured for compression. Pull the lever arm down and toward you and the gauge moves down to create compression.
- Imada NLV-220-C-S Configured for compression and has a distance meter.
- Imada NLV-220-T Configured for tension. Pull the lever arm down and toward you and the gauge moves up to create tension.
- Imada NLV-220-T-S Configured for tension and has a distance met
Specifications
| Capacity | 220 Lbf (100 Kgf) |
| Stroke | 2" |

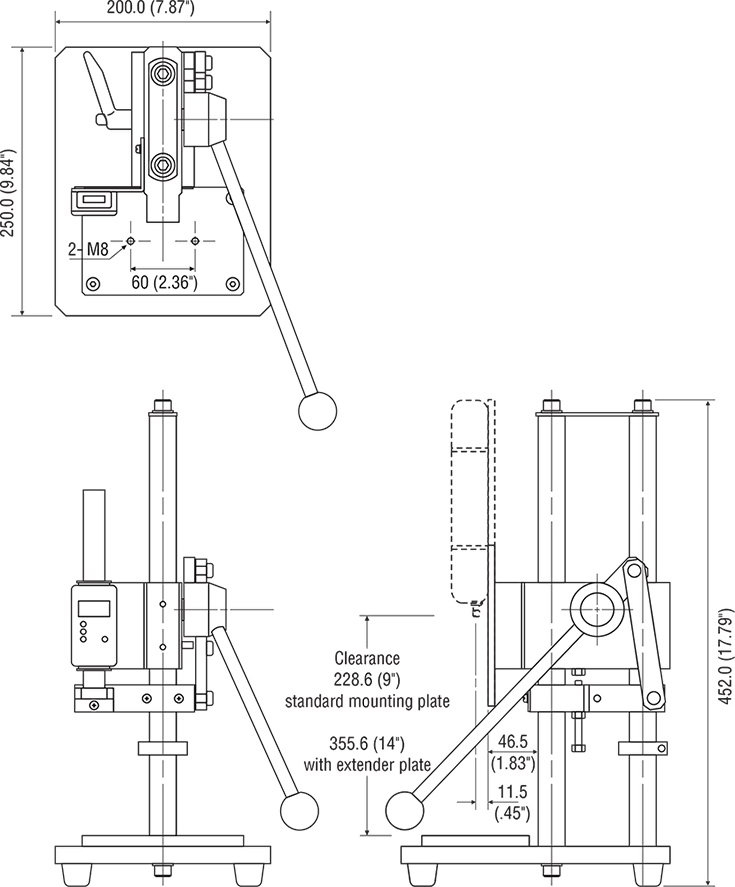

| Maximum Clearance | 9" (14" with optional extender plate) |
