Imada DS2 Digital Force Gage

See More Force Gauge Attachments

Imada DS2 Digital Force Gage

See More Force Gauge Attachments
This product has been discontinued

Product Description
This product has been replaced by the Imada DST Digital
The Imada DS2 Digital Force Gage has been replaced by the DST Digital Force Gauge
Imada Digital Force Gauge with Output
Accuracy ± 0.2%
Measure force in lbs, Kgs or N
7 Ranges up to 220 lbs
RS-232C, Digimatic and Analog outputs
Reversible display

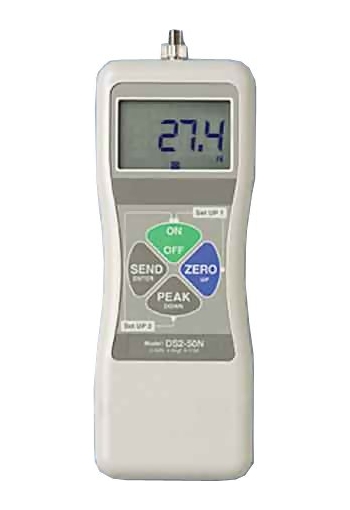

The Imada DS2 digital force gauges feature a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments.

When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you.

If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and ±1VDC analog) enable you to acquire data for permanent record.

All DS2 gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available.

Optional Handle DOH-1

force gauge handle

line
Features
line

  • Real time and peak mode (selectable)
  • RS-232C, Digimatic and analog outputs
  • 2 Year Warranty
  • lb, kg, and Newton units are push-button selectable
  • Ergonomic, heavy-duty metal construction
  • Overload alarm, low battery display indicator
  • Runs on internal NI-MH batteries or AC adapter
  • Overload capacity 200% F.S.
  • Supplied with NIST Calibration certificate
  • Programmable High/Low setpoints with LCD indicators
  • User selectable sampling rate, 30 or 1000 per/second (Hertz)
  • Reversible Display
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ

line
Force Ranges
line

Model Capacity Resolution
DS2-0.4 7.00 oz
200 g
2.000 N
0.01 oz
0.1 g
0.001 N
DS2-1 18.00 oz
500 g
5.000 N
0.01 oz
0.1 g
0.001 N
DS2-4 4.400 lb
2.000 KG
20.00 N
0.001 lb
0.001 Kg
0.01 N
DS2-11 11.00 lb
5.000 Kg
50.00 N
0.01 lb
0.001 kg
0.01 N
DS2-44 44.00 lb
20.00 Kg
200.0 N
0.01 lb
0.01 kg
0.1 N
DS2-110 110.0 lb
50.00 Kg
500.0 N
0.1 lb
0.01 kg
0.1 N
DS2-220 220.0 lb
100.0 Kg
1000 N
0.1 lb
0.1 kg
1 N


line
Specifications
line

Accuracy ± 0.2% Full scale ± 1 LSD
Display 4 digit, 12 mm high
Overload capacity 200% Full scale,
display flashes beyond 105% full scale
Data Processing Speed 1,000 data/second (30 data/second rate selectable)
Display Update 10 times per second
Outputs RS-232, Mitutoyo Digimatic and ±1 VDC analog output
Temperature range 32° to 100° F (0 - 40° C)
Low battery indicator Display flashes when battery is low
Power supply Rechargeable NiMH battery pack or AC adapter (included)
Setpoints Programmable high/low setpoints with LCD indicators
Housing dimension 215 x 65 x 51 mm (L x W x H)
Weight, net (gross) approx. 100% g (1300 g)
Warranty 2 Years


line
Related Products
line

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges

  • Full SPC and graphing capabilities
  • Automates your data collection
  • Provides a running log of all measurements along with a chart of the data as well as statistical information
related

line


MV-110
Motorized Test Stand

  • Screw feeder for smooth, positive movement
related

line

HV-110
Manual Test Stand

  • Hand wheel design provides a high degree of precise control
  • Optional digital distance meter
related

line

MESURgauge
Mesurgauge Load & Travel Analysis Software

  • Sends data from a force or torque gauge and travel display to a PC for further analysis
related

line
Complete Kit
line

All DS2 gauges are sold in a complete kit with gauge, hard plastic carrying case, a set of six measuring adapters and AC adapter/charger.

complete kit

line
Dimensions
line
