ElektroPhysik 80-165-0004 QuintSonic-T Ultrasonic Multi-layer Thickness Gauge with Tablet Display

See More Coating Thickness Gauges
Price:
$9,700.00
    warrenty

    Product Description
    For non-destructive coating thickness measurements of up to 8 layers of paint, varnish, plastics, and other coatings applied on plastic, composites, metal, and other materials.
    Total thickness, as well as individual layer thickness, can be measured in one simple process

    The ElektroPhysik QuintSonic-T Multi-layer Ultrasonic Coating Thickness Gauge with Tablet Display is a Multi-Layer Ultrasonic Coating Thickness Gauge, specially designed for non-destructive coating thickness measurements of up to 8 layers of paint, primer, and other coatings applied on plastic, composites, metal, and other materials. Total thickness, as well as individual layer thickness, can be measured in one simple process.

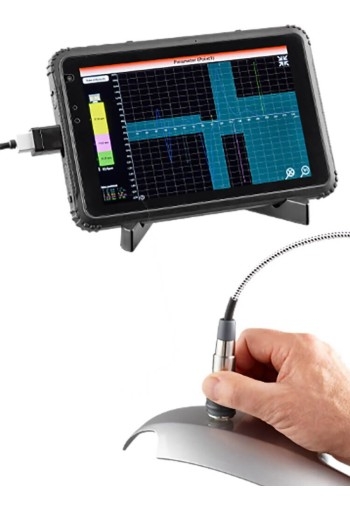

    Featuring a large 8-inch display, the QuintSonic T offers a user-friendly overview of the measurement as well as the corresponding view of the ultrasonic signal (A-scan). Parameters for signal adjustment are displayed simultaneously and can be adjusted for the current measurement quickly and easily. Comprehensive data management of measuring values allows for data output in text and Excel format as well as creation of complete measurement reports in pdf format. The integration of descriptive texts and photos supports the documentation of measurement data. Additionally, the software allows for the storage of individual A-scans for subsequent adjustment of clipping domains or blocked domains.

    The ElektroPhysik QuintSonic-T Multi-layer Ultrasonic Coating Thickness Gauge with Tablet Display is ideal for harsh environments thanks to an IP 67 & MIL-STD 810 G rating and extremely strong Gorilla® glass.


    line
    Kit Contents
    line

    • QuintSonic Coating Thickness gauge
    • Industrial Tablet Display
    • Tablet Stand
    • Probe with 1m / 39" cable
    • Operating manual German / English
    • 1 bottle distilled water
    • 1 bottle coupling gel
    • Carrying Case


    line
    Features
    line

    • Non-destructive coating thickness measurements
    • Up to 7.5mm / .29 Inches depending on material
    • Large and Rugged Tablet Display Included
    • Measurement of the total thickness as well as the individual layer thickness of a multi-layer system in only one operation
    • Storage for measurements, statistics, and material calibrations


    line
    Specifications
    line

    Measuring range / Resolution / Accuracy Layer 1Measuring range 356 µm Resolution 0,25 µm Accuracy 0,25 µm
    Measuring range / Resolution / Accuracy Layer 2Measuring range 890 µm Resolution 0,5 µm Accuracy 0,5 µm
    Measuring range / Resolution / Accuracy Layer 3Measuring range 1.900 µm Resolution 1 µm Accuracy 1 µm
    Measuring range / Resolution / Accuracy Layer 4Measuring range 3.900 µm Resolution 2 µm Accuracy 2 µm
    Measuring range / Resolution / Accuracy Layer 5Measuring range 7.500 µm Resolution 4 µm Accuracy 4 µm
    (at 2375 m/s ultrasonic velocity in all layers)
    Data portsIrDA 1.0, USB and RS232 via adapter cable (available as an option)
    Power supply4 x AA batteries, Optional AC Adapter
    Display160 x 160 pixel LCD, backlit
    Dimensions153 mm x 89 mm x 32 mm (basic unit); dia. 25 mm x length 60 mm (sensor)
    Min Layer ThicknessApprox. 10 µm / 0.3 mils (depending on the ultrasonic velocity in the layer)
    Min Measuring Area5 mm Ø / 0.2" Ø
    Measurement Timeapprox. 1 s
    Statistical functions
    (per batch):
    n, min, max, mean value, standard deviation, coefficient of variation, block statistics (normconforming / user adjustable), histogram, trend diagram
    Minimum curvature radiusconvex: 50 mm / 2" concave: NA
    Measuring unitsμm, mm, mils, inch
    Operating Temperature+5...50°C
    Storage Temperature-10...+50°C
    Data portsIrDA 1.0, USB and RS232 via adapter cable (available as an option)
    Power supply4 x AA batteries, Optional AC Adapter
    Display160 x 160 pixel LCD, backlit
    Dimensions153 mm x 89 mm x 32 mm (basic unit); dia. 25 mm x length 60 mm (sensor)
    Weight310 g (basic unit incl. batteries), 80g (sensor)
    InterfaceBluetooth, WiFi ,SD-card


    lineRelated Productsline

    ElektroPhysik QuintSonic-7
    Ultrasonic Coating Thickness Gauge

    • Non-destructive measurement of all types of coatings on various materials

    line

    DeFelsko PosiTector 200

    • Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic and more. Advanced models measure up to 3 layers with graphics


    line
    Downloads
    line

    ElektroPhysik QuintSonic-T Multi-layer Ultrasonic Coating Thickness Gauge with Tablet Display - Data Sheet
    ElektroPhysik QuintSonic-T Multi-layer Ultrasonic Coating Thickness Gauge with Tablet Display - Instruction Manual
