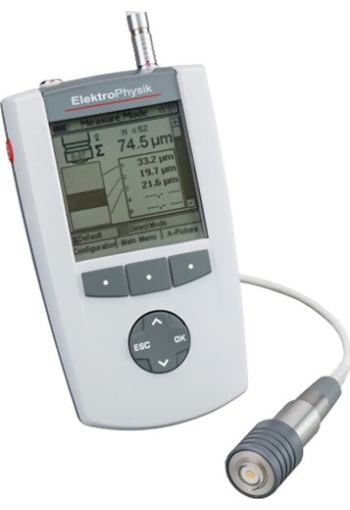

ElektroPhysik QuintSonic-7 Ultrasonic Coating Thickness Gauge
Non-destructive measurement of all types of coatings on various materials
Measuring range: Up to 7.5mm / .29 Inches depending on material

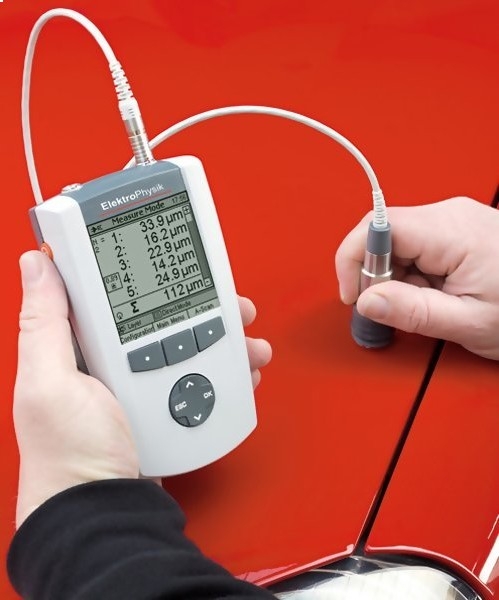

The QuintSonic-7 Ultrasonic Coating Thickness Gauge is a new, portable gauge, especially designed for non-destructive coating thickness measurements of paint, varnish, plastics and other insulation coatings applied on wood, plastics, glass, ceramics etc. as well as for polymer layers on metals. Up to now, these materials could only be measured destructively. The QuintSonic-7 enables measurement of up to 5 coatings in a single operation.

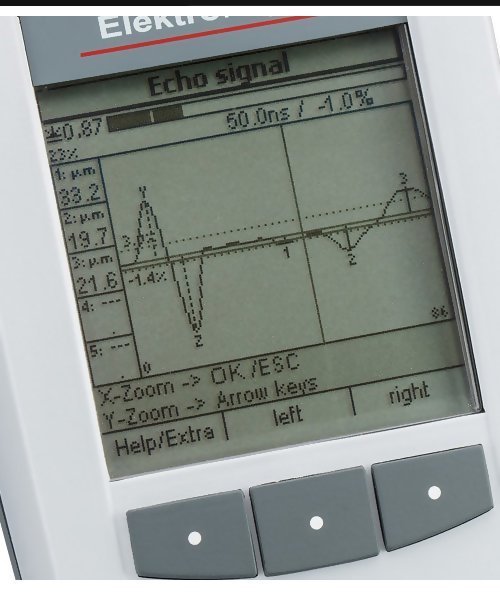

As a special feature, the gauge offers the possibility to measure the total thickness as well as the individual layers of a multi-layer system in only one measuring process. The QuintSonic coating thickness gauge measures single and multi-layers of coatings up to a total thickness of 500 mm. The robust gauge is appropriate for use in the laboratory, in production and on site.

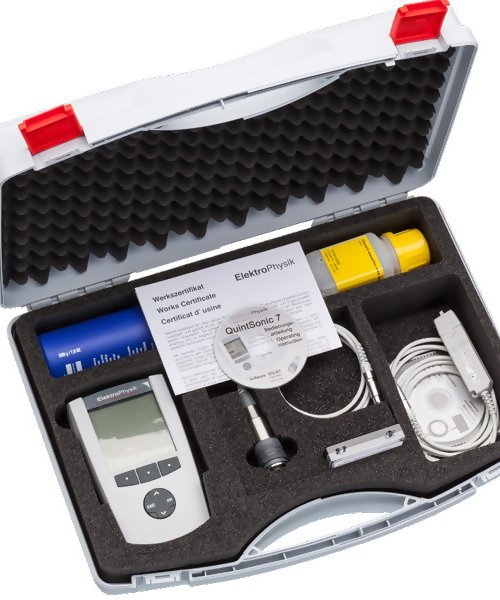

Kit Contents
- QuintSonic Coating Thickness gauge

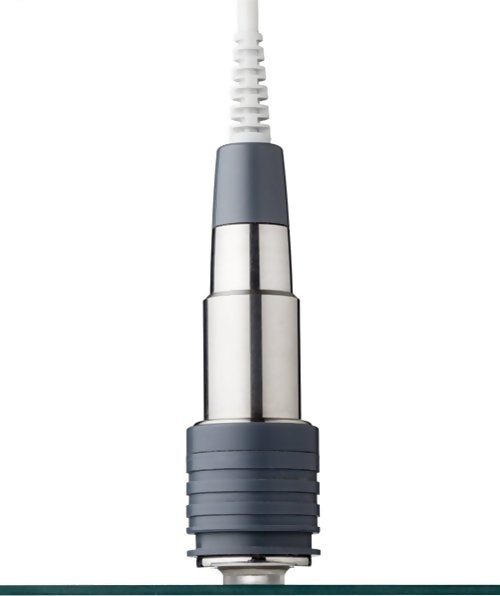

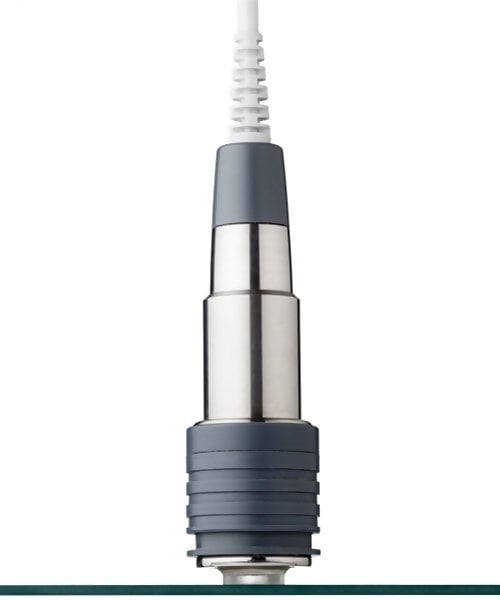

- Probe
- Cable
- Plastic case
- Coupling liquid, 100 g
- Operating instruction
- Mains unit with Euro / US adapter
Features
- Non-destructive coating thickness measurements
- Suited for coatings up to a total thickness of 500 mm
- Robust measuring gauges for use in the laboratory, in production and on site
- Measurement of the total thickness as well as the individual layer thickness of a multi-layer system in only one operation
- Storage and documentation of measuring values
- Limit setting with optical and acoustic warning when limits are exceeded
- Conforms to DIN EN ISO 2808 & ASTM D6132
Specifications
| Measuring ranges | Single layers:10 ?m - 500 ?m
Multi layers:Max. 500 mm totally
Wall thickness of metals: 0.1 mm - 8 mm
Wall thickness of plastics: 0.2 mm - 3 mm |
| Resolution | 1 mm |
| Measuring uncertainty | < 100 mm ± (2 mm + 3 %*)
> 100 mm ± (2 mm + 2 %*) |
| Memory Capacity | max. 10,000 measuring values in max. 500 batches |
| Statistical evaluation | n, x- , s, kvar, max, min, with time and date of print-out and reading |
| Limit setting | with optical and acoustic warning when limits are exceeded |
| Interfaces | RS 232 C for MiniPrint data printer |
| Power supply | 2,4 V akkupack: 2 x 1,2 V AA NiMH or NiCd (approx. 2,500 measurements) |
| Charger | 90 V to 264 V (charging time: 4 hours) |
| Dimensions and weight | Gauge: 150 mm x 82 mm x 35 mm/150 g Probe: 30 mm x 45 mm dia. |
| Ambient temperature | -15 °C - 55 °C |
| Weight | 310 gr |
