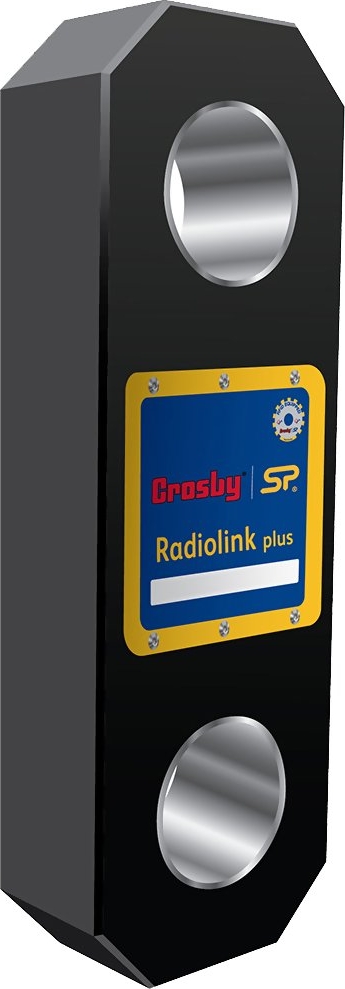

    Straightpoint RadioLink Compound Plus Wireless Dynamometer
    Wireless Dynamometer without hand-held digital display
    Capacities up to 300 Ton (660,000 lbs)
    Optional Bluetooth Output for connection to the free HHP APP
    Connect up to 126 Compound Plus Loadcells to a single PC with INSIGHT Software

    The Straightpoint RadioLink Compound Plus (CP) Wireless Dynamometer is designed for weighing and dynamic load monitoring in a wide range of applications. All Compound Plus Dynamometers are supplied with 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or INSIGHT Multiple Wireless Loadcell Software. There is also a version "-BLE" providing a Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets.

    The Compound Plus (CP) wireless dynamometer is the same as a Radiolink Plus but supplied without the SW-HHP Hand-Held Indicator.

    The CP is constructed of high-quality aircraft-grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry-leading dynamometer even more suitable for use in the harshest environments.

    When supplied with the 2.4GHz wireless output the CP featured industry-leading wireless technology and range, has an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error-free transmission of both static weight and dynamic load to a wireless handheld controller.

    The long-range Bluetooth signal connects to any iOS or Android device that has our free HHP app installed, providing the operator with a wireless range of up to 328ft / 100m. This allows them to stand in a safe position away from the load, with no requirement to read directly from the dynamometer. The app will also allow the operator to log data versus time, or on events such as over or underload. An adjustable alarm will alert the operator on their smartphone if any overload is occurring.

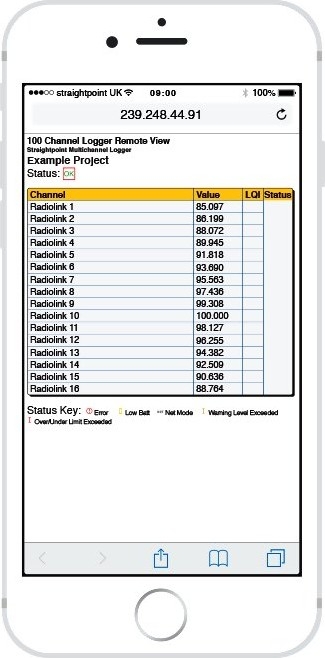

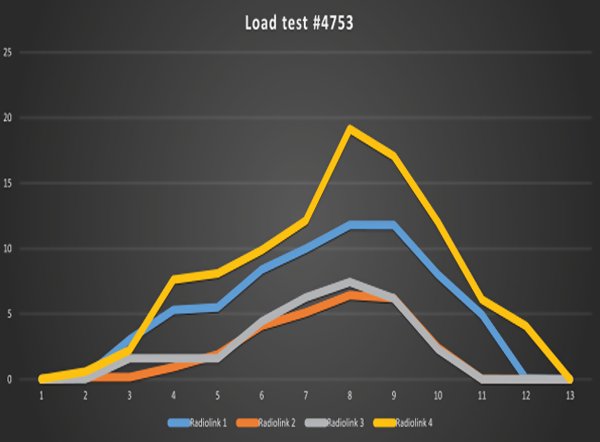

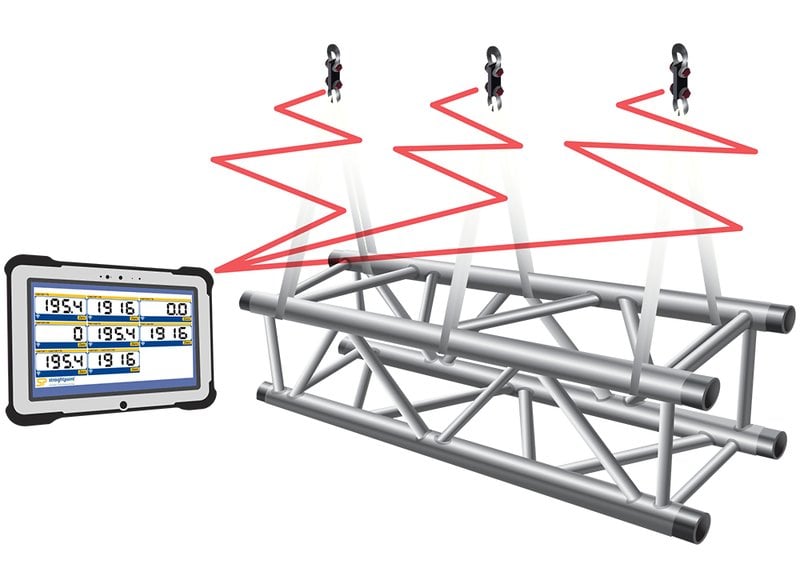

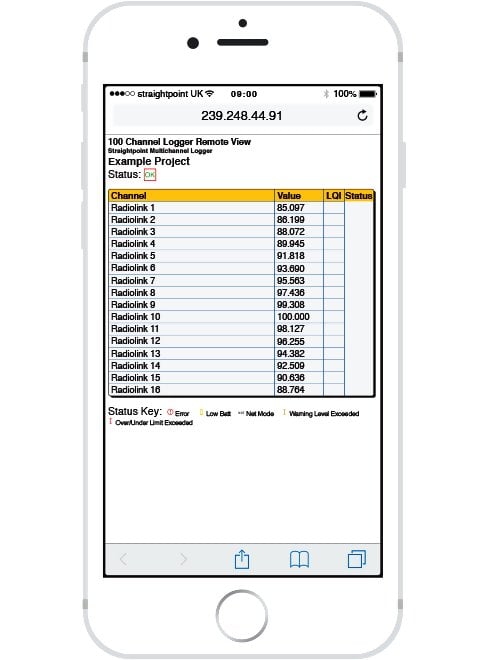

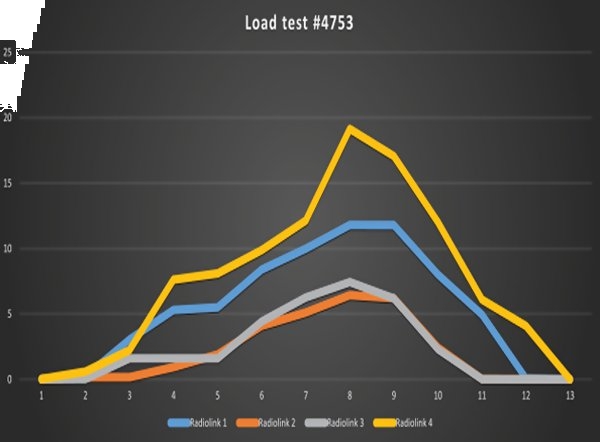

    Designed for measurement of both Static and Dynamic Loads the Compound Plus can also be used in combination with our range of high-speed wireless data logging software allowing for simultaneous control, display and real-time data logging of up to 100 Straightpoint telemetry Load Cells. A .csv file format is used for data logging and opens in MS Excel allowing the easy visual presentation of the logged data and simple test certificate generation.

    The Compound Plus utilizes easily sourced AA alkaline batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure, and replacement.

    A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analog (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.

    The CP Compound Plus Dynamometer Loadcells are supplied without the SW-HHP Wireless Hand-Held Indicator or Software. Both are available for purchase as an option.


    line
    Kit Contents
    line

    • RadioLink Compound Plus
    • 4x AA batteries
    • RFID tag
    • Calibration certificate
    • Instruction Manual
    • Models up to 35T/77,000lbs are supplied in foam fitted carrying cases. Larger capacities are supplied in an approved shipping crate
    • Shackles are not included


    line
    Features
    line

    • Supplied with a Traceable Calibration Certificate
    • Accuracy of ±0.1% full scale with a safety factor of 4:1 up to 12:1 (depends on capacity)
    • 2.4GHz Wireless Output for connection to the optional battery-powered SW-HHP Handheld Display or SW-MWLC Multiple Wireless Loadcell Software
    • 2.4GHz Wiresless Output features a transmission distance of 2300 Ft (700 meters)
    • "-BLE" Bluetooth Output for connection to the no-cost HHP App for Apple and Android Phones and Tablets.
    • The Bluetooth Output features a transmission distance of 328 Ft (100 meters)
    • Compound Plus Housing is IP 67 Rated (NEMA6) for use in the harshest indoor & outdoor environments
    • Battery life of 1200 hours continuous use using 4x AA Alkaline Batteries
    • DNV Type Approval (DNVGL-ST-0378 – Standard for offshore and platform lifting appliances)
    • Uses powerful "internal" antenna eliminating the possibility to damage it
    • Uses standard Crosby Shackles, optional
    • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
    • Made in the UK


    line
    Specifications
    line

    Accuracy±0.1% full scale
    Safety Factor4:1 up to 12:1 (depends on capacity)
    Battery Life1200 Hrs (continuous use)
    Battery TypeRemote Display 2 x AA / Loadcell 4 x AA
    Display Type6 digit 0.9 inch LCD (22mm)
    Operating Temp14°F to 122°F (-10°C to +50°C)
    Radio Frequency2.4GHz
    Wireless Range2300 feet (700 meters)
    Bluetooth Range328 Ft (100 meters), requires "-BLE" version with Bluetooth output
    Data Transmission Rate3Hz up to 200Hz can be ordered for dynamic load monitorning applications
    Housing Protection SensorIP67 / NEMA 6 (Waterproof)
    Warranty2-Years


    lineComparison Chartline

    SP
    Crosby
    CapacityRes.UnitsWeightSafety Factor
    CP1T
    2789018
    1,000kg
    2200 lb
    0.5 kg
    1 lb
    kg
    lb
    1.5 kg
    3.3 lb
    12:1
    CP2T5
    2789022
    2.5 te
    5500 lb
    0.001 te
    2 lb
    te
    lb
    1.5 kg
    3.3 lb
    7:1
    CP6T5
    2789027
    6.5 te
    1100%0 lb
    0.001 te
    2 lb
    te
    lb
    2.4 kg
    5.3 lb
    7:1
    CP12T
    2789016
    12 te
    26000 lb
    0.002 te
    5 lb
    te
    lb
    3.7 kg
    8.2 lb
    7:1
    CP25T
    2789021
    25 te
    55000 lb
    0.005 te
    10 lb
    te
    lb
    5 kg
    11 lb
    5:1
    CP35T
    2789024
    35 te
    77000 lb
    0.005 te
    10 lb
    te
    lb
    8.6 kg
    19 lb
    5:1
    CP55T
    2789026
    55 te
    120000 lb
    0.01 te
    20 lb
    te
    lb
    13 kg
    28.7 lb
    5:1
    CP75T
    2789028
    75 te
    165000 lb
    0.01 te
    20 lb
    te
    lb
    16 kg
    35.3 lb
    5:1
    CP100T
    2789001
    100 te
    220000 lb
    0.05 te
    100 lb
    te
    lb
    34 kg
    75 lb
    5:1
    CP150T
    2789017
    150 te
    330000 lb
    0.05 te
    100 lb
    te
    lb
    46 kg
    101.4 lb
    4:1
    CP200T
    2789019
    200 te
    440000 lb
    0.1 te
    200 lb
    te
    lb
    82 kg
    180.8 lb
    5:1
    CP250T
    2789020
    250 te
    550000 lb
    0.1 te
    200 lb
    te
    lb
    82 kg
    180.8 lb
    4:1
    CP300T
    2789023
    300 te
    660000 lb
    0.1 te
    200 lb
    te
    lb
    118 kg
    260 lb
    5:1
    CP500T
    2789025
    500 te
    1100000 lb
    0.1 te
    200 lb
    te
    lb
    248 kg
    546.7 lb
    5:1
