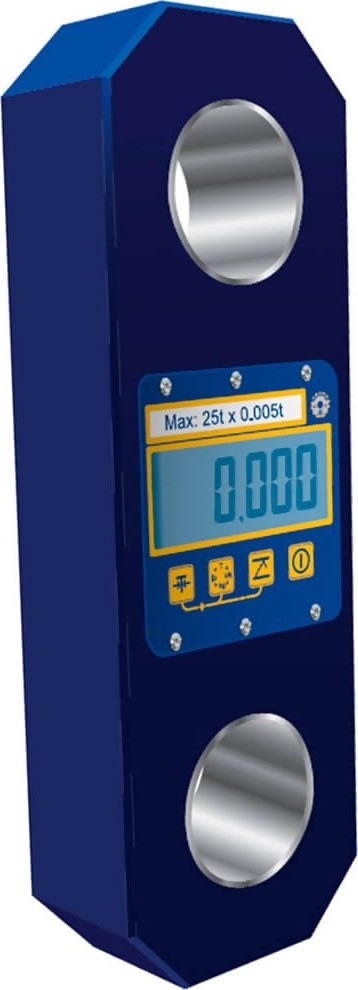

    Straightpoint LoadLink Plus Digital Dynamometer Tension Loadcell
    Digital Dynamometer with Built-In Display
    Capacities up to 300 Tonnes / 660,000 lbs

    The Straightpoint LoadLink Plus Digital Dynamometer Tension Loadcell is designed for weighing and dynamic load monitoring in a wide range of applications. It has been in production and supplied globally to the lifting and rigging industry since 1979.

    The Loadlink plus has an easy to read LCD display and push button operation for a host of features demanded by operators worldwide.

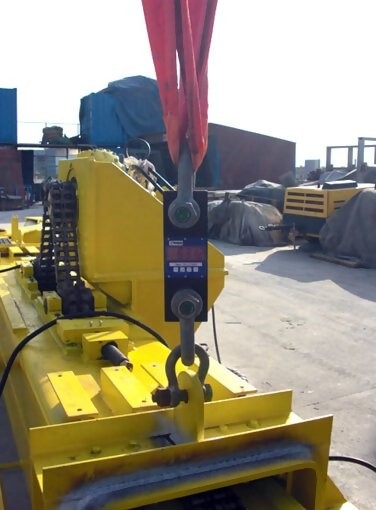

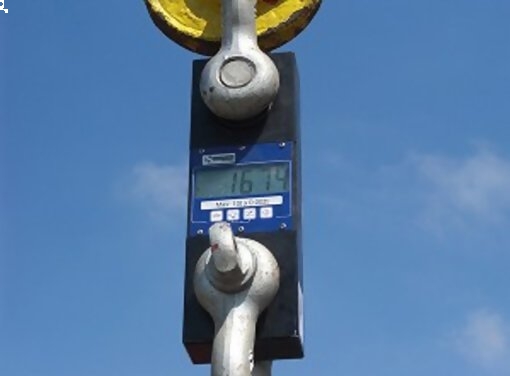

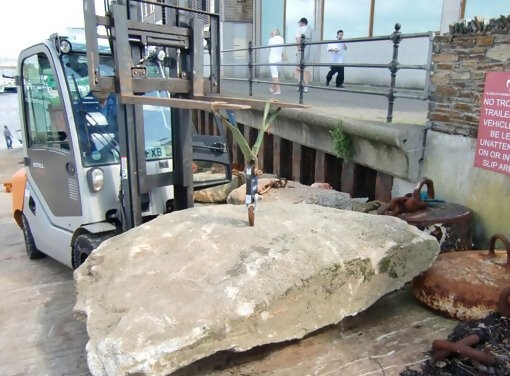

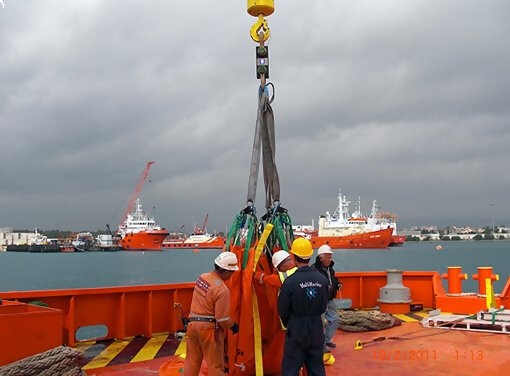

    This range of digital dynamometer load cells are used on a daily basis for load monitoring, weighing and heavy lifts ranging in capacity from 1 to 300 tonnes, by a variety of industries including rigging, shipping, transportation, offshore and onshore oil and gas, utilities, aerospace and mining.

    The Loadlink plus is manufactured from high-quality and high-tensile aircraft grade aluminum. Due to this manufacturing process Straightpoint Loadlink digital dynamometer load cells are on average 30% lighter than our closest competitor with the same safety rating making them idea for portable load testing.

    Thirty years of experience manufacturing this rugged, lightweight loadcell with advanced electronics and full feature display make the Loadlink Plus the number one product for the lifting and rigging industry worldwide.


    line
    Kit Contents
    line

    • Straightpoint LoadLink-Plus Digital Dynamometer Tension Loadcell
    • RFID tag
    • Calibration Certificate
    • Instruction Manual

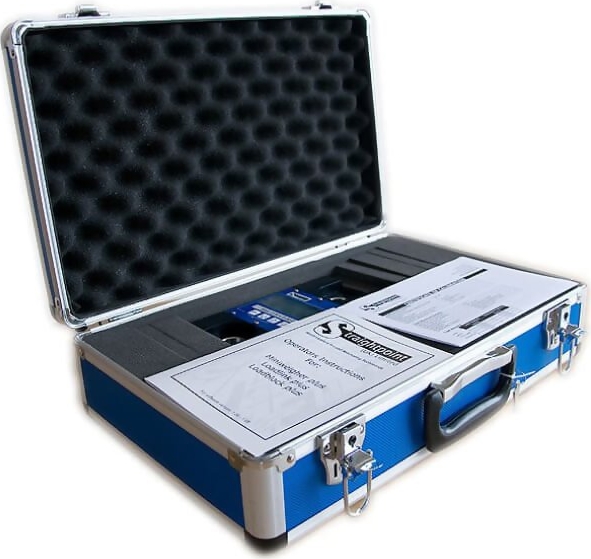

    Models up to 35T/77,000lbs are supplied in foam fitted carrying cases. Larger capacities are supplied in an approved shipping crate


    line

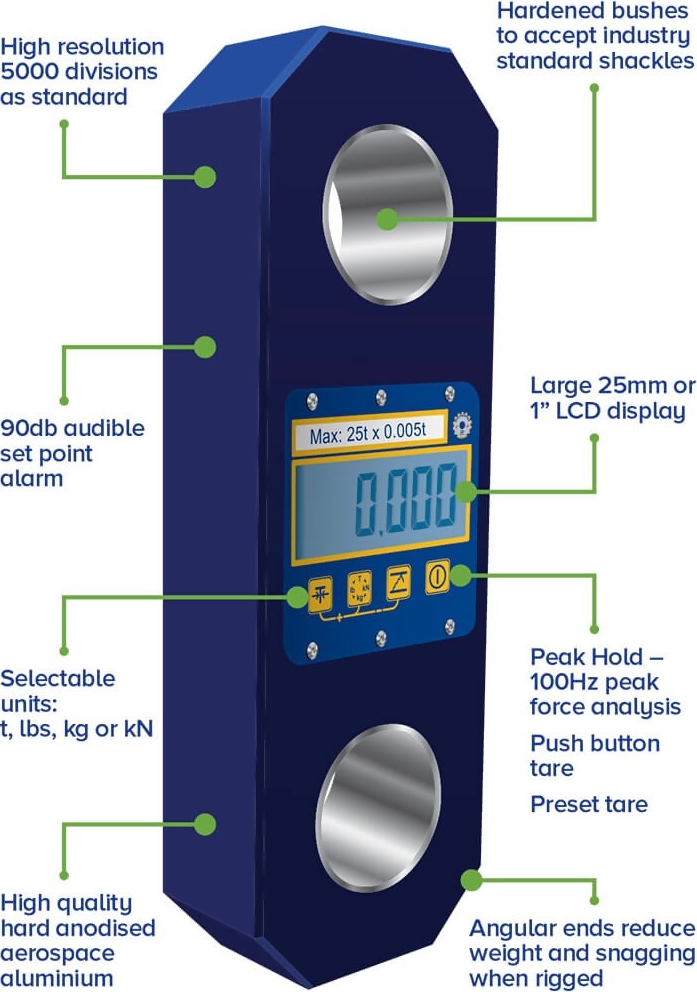

    Features
    line

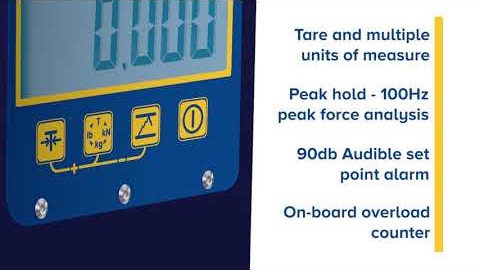

    • Large easy to read LCD Display
    • High Accuracy of ±0.1% full scale
    • Selectable Units - t, lbs, kg or kN
    • High Resolution, 5000 divisions as standard
    • Peak Hold – 100Hz peak force analysis
    • Tare and Preset tare
    • Lightweight due to aluminum construction
    • Overload Counter – ideal for rental industry
    • 90 db Audible Set Point Alarm to warn operator of overload

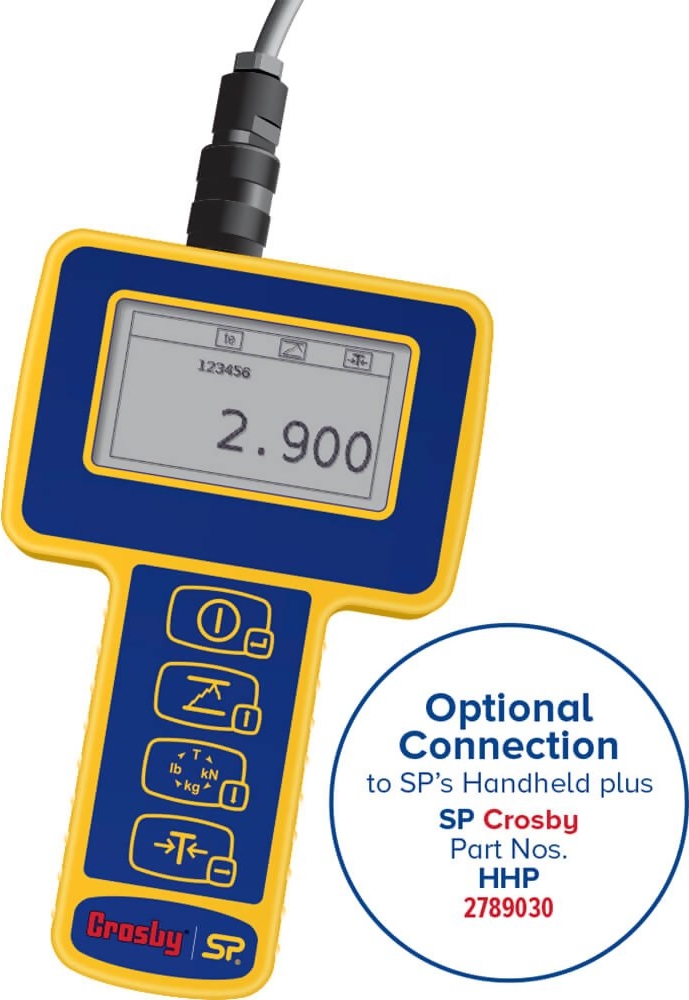

    • RS-485 Serial Output to connect to Handheld plus or Desktop Controller
    • Designed for use with standard Crosby or Green Pin Shackles
    • Complete Design of load cell has been validated by Finite Element Analysis
    • "-WS" models are supplied with two (2) shackles, refer to BUY NOW Section at bottom of page
    • Bluetooth Option allows user to use Free App for wither Android or IOS Smarphones to view, log and transfer data via email or text. This eliminates the need for using a separate Hand-Held indicator.
    • DNV Type Approval (DNVGL-ST-0378 – Standard for offshore and platform lifting appliances)
    • Environmental protection rating of IP65 / NEMA5
    • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
    • Made in the UK


    line
    Specifications
    line

    Accuracy+/- 0.1% of Full Scale
    Battery Type9v PP3
    Battery Life80 hours continuous
    Display Type6 digit 1 inch LCD (25mm)
    Operating Temp14°F to 122°F (-10°C to +50°C)
    Protection SensorIP65 / NEMA5
    Warranty1-Year (FREE Extension to 2-Years with Product Registration)


    line

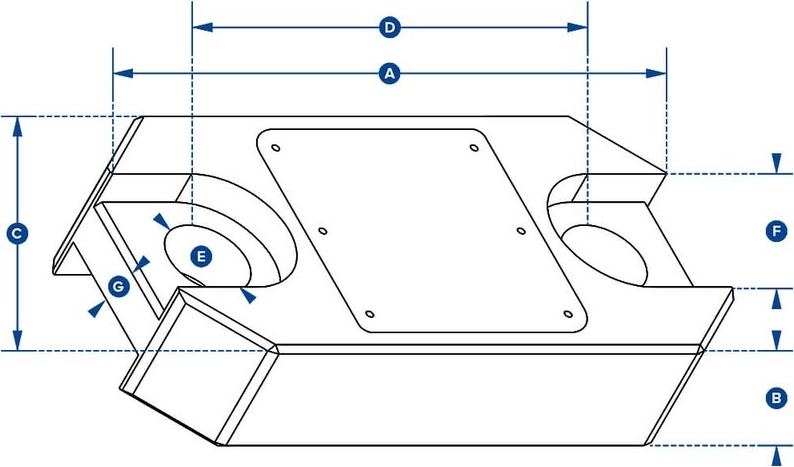

    Ranges
    line

    ModelCapacityRes.WeightSafety
    Factor
    Load Pin
    Diameter
    Overall Height
    LLP1T2000 lb
    1000 kg
    1 lb
    0.5 kg
    3.1 lb
    1.4 kg
    12:13/4 In
    19 mm
    8.03"
    204 mm
    LLP2T55500 lb
    2.5 te
    2 lb
    0.001 te
    3.1 lb
    1.4 kg
    5:13/4 In
    19 mm
    8.03"
    204 mm
    LLP5T11000 lb
    5 te
    2 lb
    0.001 te
    4.4 lb
    2 kg
    5:11 In
    25 mm
    9.80"
    249 mm
    LLP12T26000 lb
    12 te
    5 lb
    0.002 te
    7.1 lb
    3.2 Kg
    5:11-3/8 In
    35 mm
    12.01"
    305 mm
    LLP25T55000 lb
    25 te
    10 lb
    0.005 te
    11 lb
    5 kg
    5:12 In
    51 mm
    13.39"
    340 mm
    LLP35T77000 lb
    35 te
    10 lb
    0.005 te
    19 lb
    8.6 kg
    5:12-1/4 In
    57 mm
    15.47"
    393 mm
    LLP50T110000 lb
    50 te
    20 lb
    0.01 te
    25.3 lb
    11.5 kg
    5:12-1/4 In
    57 mm
    16.69"
    424 mm
    LLP75T165000 lb
    75 te
    20 lb
    0.01 te
    35.3 lb
    16 kg
    5:12-3/4 In
    70 mm
    18.50"
    470 mm
    LLP100T220000 lb
    100 te
    100 lb
    0.05 te
    75 lb
    34 kg
    5:13-1/4 In
    83 mm
    23.94"
    608 mm
    LLP150T330000 lb
    150 te
    100 lb
    0.05 te
    101.4 lb
    46 kg
    4:13-3/4 In
    95 mm
    26.38"
    670 mm
    LLP200T440000 lb
    200 te
    200 lb
    0.1 te
    158.7 lb
    72 kg
    5:14-3/4 In
    121 mm
    27.56"
    700 mm
    LLP250T550000 lb
    250 te
    200 lb
    0.1 te
    158.7 lb
    72 kg
    4:15 In
    127 mm
    27.56"
    700 mm
    LLP300T660000 lb
    300 te
    200 lb
    0.1 te
    260 lb
    118 kg
    5:16 In
    152 mm
    31.73"
    806 mm
