WTTM Motorized Wire Terminal Pull Tester

As of November 2011 the WTTM is no longer available. a replacement will be announced early 2012.

Motorized Wire Terminal Pull Tester

Capacity: 220LB / 100KG / 1000N

Conforms to all international test standards: MIL, UL, SAE, DIN, IEC, BS and EN

WTTM Motorized Wire Terminal Pull Tester

As of November 2011 the WTTM is no longer available. a replacement will be announced early 2012.

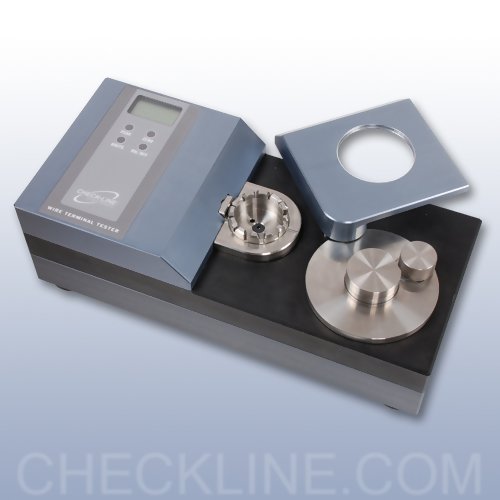

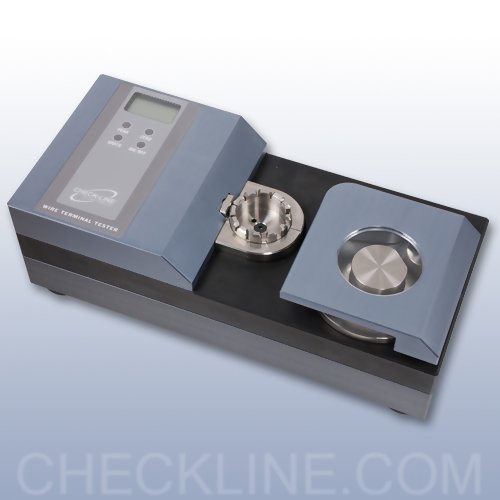

The new Check•Line WTTM Motorized Wire Terminal Pull Test is designed for tensile strength testing of wire terminals in accordance with DIN, EN, BS, IEC, UL, SAE and MIL standards

Its very simple operation allows the users to acquire reliable and reproducible test results: the user inserts the wire terminal into the receptacle adapter, and the open wire end into the combined clamp-pull device. After the protection cover has been closed, the motor starts. The wire will be fixed into position, and then constantly pulled.

Suitable for wires AWG 30 to AWG 8 (diameters from 0.010" to 0.130").

Features

Easy to use - with automatic peak value recording, very high accuracy and reproducibility of measurement results

Selectable pull rates of 1 to 10 inches/min (25 to 250 mm/min)

Supplied with FREE Data Transfer program and serial cable

Includes NIST Calibration Certificate

Photo Gallery - click any photo to enlarge

Operating Procedure

To operate, simply follow these steps:

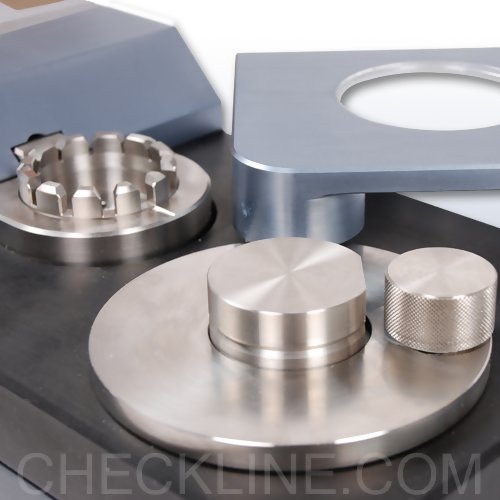

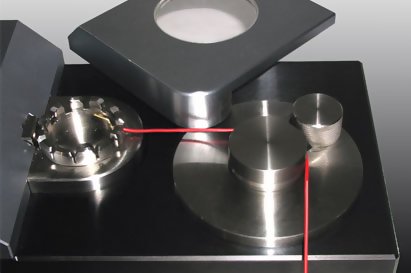

1. Select the appropriately sized slot in the Wire Terminal Fixture and rotate to the front position
2. Insert the terminal and wire so that it is secured on the back-side of the slot
3. Route the wire so that it passes through the clamping device
4. Select Peak-Hold or Continuous Measure mode using the PEAK key
5. Press the ZERO key to perform tare function
6. Close the protective cover and the motor will start the test
7. Read current force and breaking force on the digital display

Dimensions

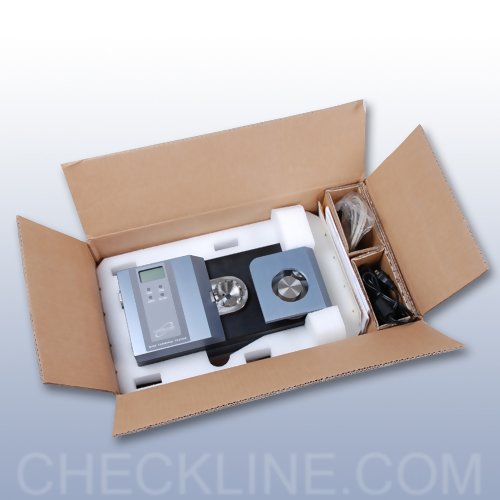

Complete Kit


The WTTM is supplied as a complete kit including Instrument with terminal adapter and clamp-pull device, universal AC-Adapte/charger 100-240VDC, RS232-interface, connection cable for serial I/O Port (9p-D-Sub), WTT-COMM software and operation manual.

Download

FMI Connect Software Click Here To Download

PDF Instruction Manual Click Here To Download

PDF Data Sheet Click Here to Download

Specifications

Measuring Range	WTTM-110: 0-50 Kg / 0-110 lbs / 0-500N WTTM-220: 0-100 Kg / 0-220 lbs / 0-1000N (units selected via keypad)
Resolution	WTTM-110: 0.01 Kg / 0.1 lbs / 0.1 N WTTM-220: 0.1 Kg / 0.1 lbs / 1 N
Terminal Adapter Slot width (mm)	0.5, 0.8, 1.0, 1.4, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0
Accuracy	±0.5% F.S. (±½ digit)
Operating Modes	Real Time: Displays actual value in Kg, lbs or N Peak: Displays peak value in Kg, lbs or N
Wire Diameter	SAE AS7928 II: AWG 8...30 IEC 60352-2: Cross section 0.05...10mm² Maximum: 0.236" (6mm)
Overload	120% Full Scale (LCD indicator at 120%)
Display	LCD, 4-1/2 digit, 12mm high
Update Rate	Real Time Mode: 333msec Peak Mode: 1msec
Memory	Peak Value
Power Supply	Universal AC Adapter 100-240VDC (50/60Hz) Internal NiCd battery

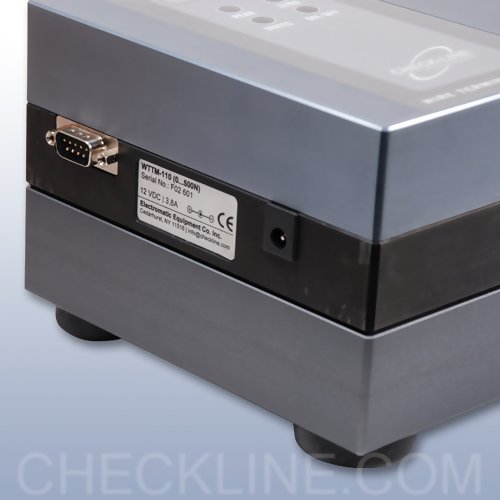

Interface	RS-232C - 19,200 KB / 8 / N / 1 / None (selectable baud rate)
Temp. Range	Operating: 32 to 104° F (0 to 40° C) Storage: -4 to 140° F (-20 to 60° C)
Weight	42 lbs (19 Kg) (Shipping weight 44lbs)
Dimensions	13.8" x 6.3" 4.3" (350 x 160 x 110mm)
Material	Anodized aluminum, steel and stainless steel V2A
