    Product Description

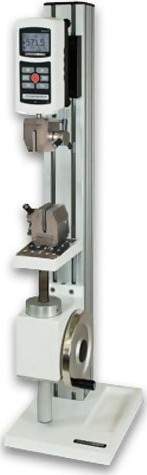

    Mark-10 WTT-1000 Wire Pull Tester 1000 lb Capacity
    Supplied with Heavy-Duty Wedge Grips

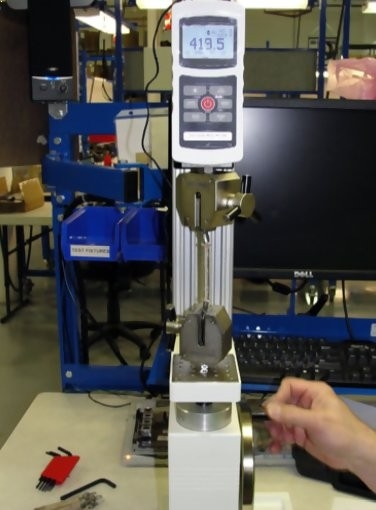

    The Mark-10 WTT-1000 system is designed for testing large diameter wires for UL and MIL Spec Testing.

    Available with a set of heavy-duty self-tightening wedge grips or a combination of wedge grip and vise grip to securely hold your samples. A hook is also included which can be used to grip ring terminals.

    Measurement accuracy is ±0.1% of full scale, and resolution is 0.5 lbs / 0.2 Kg / 2 N. A large, backlit LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges' many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

    On-board data memory for up to 1,000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

    Kit Contents


    The WTT-1000-CG is sold as a complete test system that includes the following items;

    line

    The WTT-1000-WG is sold as a complete test system that includes the following items;

    Features


    • Includes NIST Traceable Calibration Certificate
    • 3 Year Warranty
    • Test for UL 486 & Mil Spec and other standards
    • Display force values in peak or real-time measuring mode
    • Modular system can be used for many other tension and compression testing applications
    • USB, RS-232, Mitutoyo, and analog output
    • Peak readings and set points always displayed
    • 13 inches of clearance without grips. 4 inches of travel

    Specifications


    Capacity1,000lbs (4.5Kn)
    Stroke4.00" (102 mm)
    Travel Rate0.013" (0.34 mm)/wheel rev
    Sampling Rate7,000 Hz
    Accuracy± 1lbs / 0.5 Kg / 5 N
    PowerAC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
    Battery LifeBacklight on: up to 7 hours of continuous use
    Backlight off: up to 24 hours of continuous use
    Measurement UnitslbF,ozF,gF,kgF,N,kN,mN (depending on model)
    OutputsUSB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
    Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
    Analog: ±1V DC, ±0.25% of full scale at capacity.
    General Purpose: Three open drain outputs, one input.
    Set Points: Three open drain lines.
    Configurable settingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
    Safe Overload150% of full scale (display shows "OVLD" at 110% and above)
    Warrany3 years

    Related Products


    WTT Manual Wire Terminal Pull Tester

    • system consists of a manual hand-wheel test stand, digital force gauge and wire gripping fixtures for wire diameters up to 0.24 inches / 6mm.
    Click image for more info

    Mark-10 G1093 High Capacity Wire Terminal Grip

    • Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.46 in. (11.8 mm). The wheel is machineable for larger samples.
    Click image for more info

    Mark-10 G1094 Eccentric Roller Grip

    • The Mark-10 G1094 Eccentric Roller Grip features a serrated cam, for effectively securing wires, plastics, textiles, and other materials in pull testing applications.
    Click image for more info

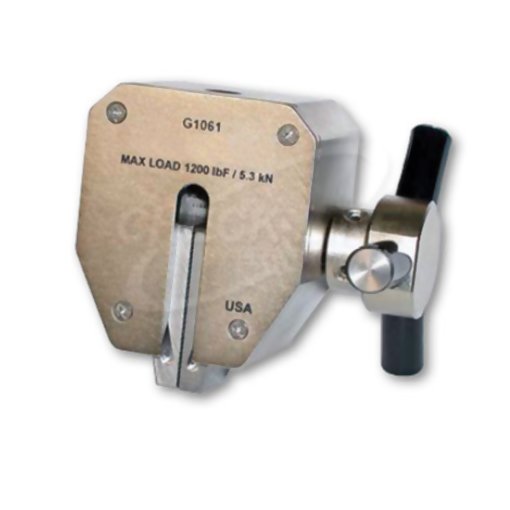

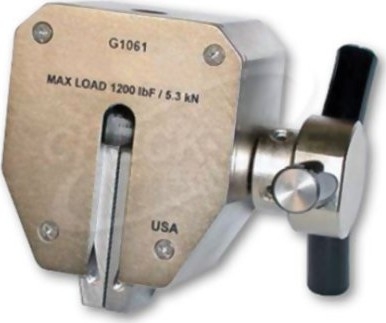

    Mark-10 G1061 Self-Tightening Wedge Grip
