Name: WTT Manual Wire Terminal Pull Tester
Brand: Checkline
SKU: 1481

WTT Manual Wire Terminal Pull Tester

See More Wire Terminal Pull Testers

WTT Manual Wire Terminal Pull Tester

Capacity 220 lbs / 100 kg / 1000 N

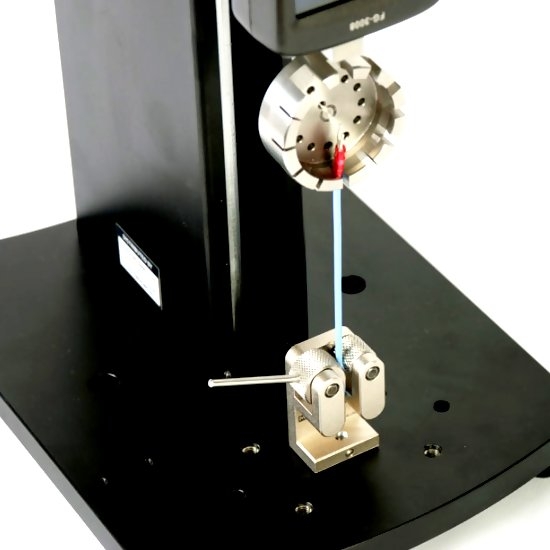

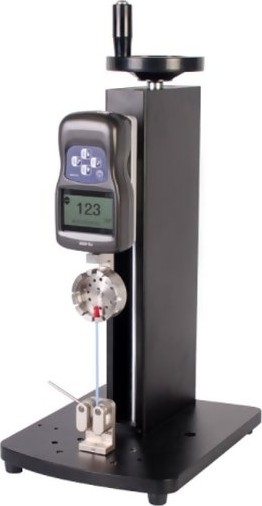

The Checkline WTT Wire Terminal Pull Tester precisely measures the pull off force of crimped on wire terminals up to 220 lbs / 100 kg. The system consists of a manual hand-wheel test stand, digital force gauge and wire gripping fixtures for wire diameters up to 0.24 inches / 6mm.

line
Features
line

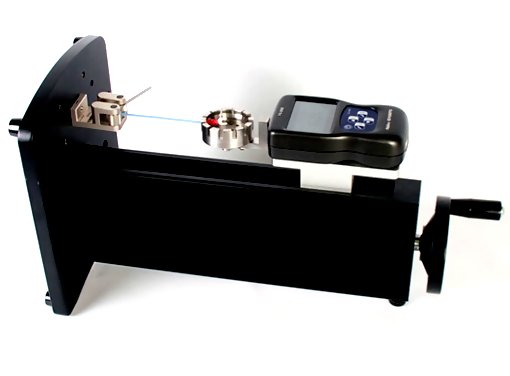

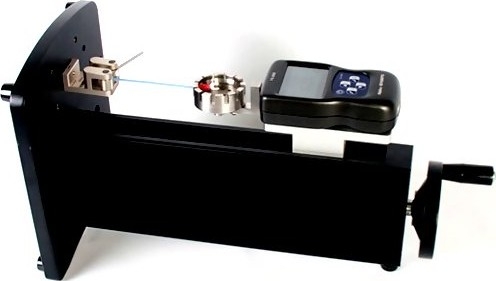

Vertical or Horizontal operation
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
500 reading memory
Supplied with Factory Calibration Certificate, NIST Traceable Cert is Optional
Includes Data Logging Software
USB and RS232 Output
User selectable measuring units (lbs / Kg / N)

line
Specifications
line

Capacity	WTT-100: 110 Lb / 50 kg / 500 N WTT-200: 220 Lb / 100 Kg / 1000 N
Resolution	WTT-100: 0.1 Lb / 0.01 Kg / 0.1 N WTT-200: 0.1 Lb / 0.1 Kg / 1 N
Accuracy	± 0.3% F.S.
Stroke	9" (230 mm) without attachments installed
Overload Capacity	150% of F.S. (LCD flashes beyond 110% of F.S.)
Display Update Rate	10 times/second
Memory	500 readings
Power	Internal Ni-MH rechargeable batterie, Universal Power adapter included
Battery Life	Approximately 16 hours continuous use per full charge
Outputs	USB, RS-232; High & Low Limit NPN’s
Operating Temperature	14 to 104°F (-10 to 40°C)
Dimensions	9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight	19 lbs / 8.6 Kg
Warranty	1 Year

line
Complete System
line

The WTT is sold as a complete test system that includes the following items

FG-3000 - Digital Force Gauge
FGS-250W - Manual Test Stand
G1002 - Wire Cam Grip
G1076-M6 - Wire Terminal Grip

line
Related Products
line

WT3-201
Wire Pull Tester

Includes NIST Traceable Calibration Certificate (without data)
Automatic output / data storage / zeroing upon sample break helps automate testing processes

line

WT3-201M
Motorized Wire Pull Tester

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline WTT-100 Manual Wire Terminal Pull Tester, 110 lb / 50 Kg / 500 N Capacity View Model Details

$1,630.00

Checkline WTT-200 Manual Wire Terminal Pull Tester, 220 lb / 100 Kg / 1000N Capacity View Model Details

$1,630.00

Recommended Accessories

PRICE

NISTCAL NIST Traceable Calibration Certificate for WTT

$100.00

Ring Terminal Fixture Insert for WTT-100/200

$220.00

FG-7CHRG Replacement AC-Adapter/Charger for FG-3000/7000 Force Gauges & TTC Torque Testers (requires USB Type B cable or order FG-7USB)

$19.00

FG-7CHRG-EU Replacement AC-Adapter/Charger for FG-3000/7000 Force Gauges & TTC Torque Testers with Euro Plug (requires USB Type B cable or order FG-7USB)

$19.00
