Buy Quality TI-CMX Ultrasonic Coating and Wall Thickness Gauge

Price: $1,895.00 to $1,995.00

Ultrasonic Coating & Wall Thickness Gauge

Range:
0.025 - 9.999 inches
0.63 - 254.0 mm

Resolution: 0.001" (0.01 mm)

Datalogging: NO

TI-CMX Ultrasonic Coating & Wall Thickness Gauge

The new TI-CMX Ultrasonic Coating & Wall Thickness Gauge measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the TI-CMX Ultrasonic Coating & Wall Thickness Gauge automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating.

Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

Five user-selected operating modes are included:

Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.

Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.

Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.

Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)

Coating Only: Measures coating thickness only.

Try the TI-CMX Ultrasonic Coating & Wall Thickness Gauge yourself!
Click here for our TI-CMX Ultrasonic Coating & Wall Thickness Gauge Demo

Features of the TI-CMX Ultrasonic Coating & Wall Thickness Gauge

Auto probe recognition with Auto Zero or Manual Zero.

Wide variety of dual-element probes can be used for nearly any application.

Bar graph with user-set start end values providing highest resolution around the target thickness value.

Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.

Includes NIST-Traceable Calibration.

CE Certified.

Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).

64 custom setups can be stored and retrieved for convenient use and labeled for easy identification

Display Hi/Lo Alarm Limits with audible and visual indicators.

2 Year Warranty

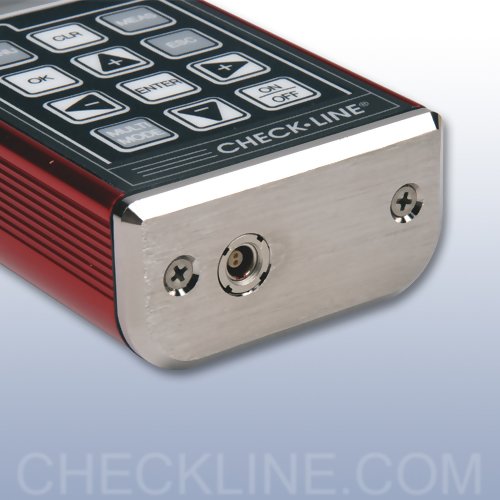

Metal housing provides strong protection against harsh environments.

Measures Coatings up to 0.100"

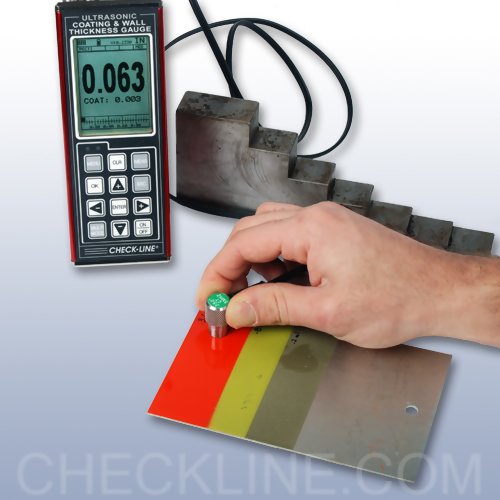

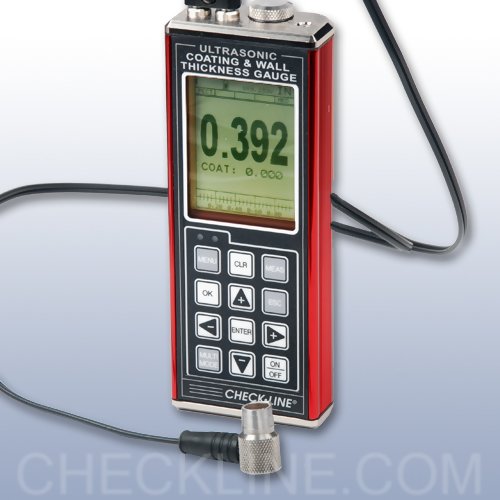

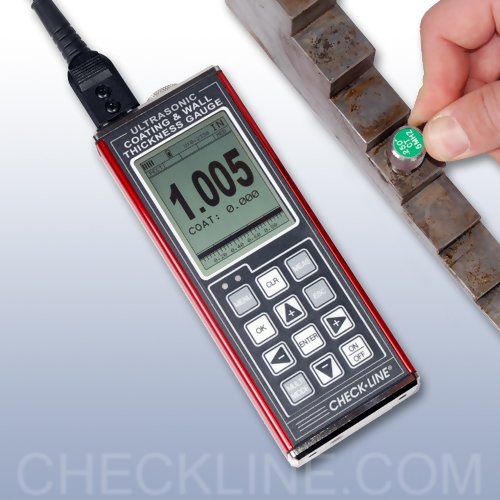

Photo Gallery for the TI-CMX Ultrasonic Coating & Wall Thickness Gauge

Click any photo to enlarge

High Speed Scan Mode & B-Scan Mode

Hi-Speed Scan Mode	B-Scan Mode

Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off.	The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. the B-Scan view draws at a rate of seven seconds per screen from right to left.

Related Products for the TI-CMX Ultrasonic Coating & Wall Thickness Gauge

TICC-MVX Protective Holder for Ultrasonic Gauges
Constructed from heavy duty Cordura Nylon Includes wrist & shoulder straps

___________________________________________

NIST-Traceable Steel Test Block 3 Sizes Available
Precision Machined and Finished Includes NIST Report and Test Data

___________________________________________

Uncertified Steel Test Block For Ultrasonic Gauges
For convenient confirmation of thickness gauge calibration

___________________________________________

CF12 Coupling Fluid
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle

___________________________________________

CF-2H High Temperature Coupling Fluid
Temperature Range: 0° to 600° F -18° to 315° C

___________________________________________

V-Block Transducer Holder
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.

Complete Kit of the TI-CMX Ultrasonic Coating & Wall Thickness Gauge


The TI-CMX Ultrasonic Coating & Wall Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, operating manual, RS-232 cable and software —all in a foam-fitted carrying case.

Measuring Limits of the TI-CMX Ultrasonic Coating & Wall Thickness Gauge

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	NA
	Minimum Substrate Thickness - NFe	NA

Specifications of the TI-CMX Ultrasonic Coating & Wall Thickness Gauge

Range in Steel:	Pulse-Echo Mode: Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters) Echo-Echo Mode: Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating.
Max Coating	0.100"
Resolution:	.001 inches (0.01mm)
Velocity Range:	.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units:	Inch or mm
Measurement Modes:	- Pulse-Echo (corrosion mode) - Pulse-Echo Coating (Corrosion w/o coating) - Echo-Echo (thru-paint) - Temp Comp (auto adjust for material temp) - Coating Only (Ultrasonic Coating Gauge)
Transducer Types:	Dual Element (1 to 10 MHz).
Output	RS-232 for upload/download of setups
Memory capacity:	TI-CMX: None TI-CMXDL: over 200,000 measurements
Power Source:	Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life:	Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off:	After 5 minutes of non-use
Display:	1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard:	Membrane switch with twelve tactile keys
Case:	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature:	-14° to 140°F (-10° to 60°C)
Weight, net:	383 grams
Dimensions:	63.5 W x 165 H x 31.5 D mm
Warranty:	2 year limited
Certification:	CE Approved, Factory calibration traceable to national standards
