RX-DD Digital Durometer

Price: $995.00 to $1,295.00
Precision Digital Durometer With Memory & Data Output
Available Scales: A, B, C, D, DO, M, O, OO, OOO
Conforms to ASTM D-2240
Includes NIST Calibration Certificate

Model DD Digital Durometers


Available Scales: A, B, C, D, DO, M, O, OO, OOO

The new Check•Line RX-DD is a precision Digital Durometer ideal for laboratory use. It features a large direct drive LCD display, RS232 data ports for computer compatibility, a locking feature to prevent accidental erasure of tolerances, automatic shutoff, low battery warning, and accessories such as MTI and SPC type printers, audio attachments and software.

Type M Durometers require test stand OS-3 per ASTM D2240.


line
reddot Features
line
bluedot High and low buttons for setting tolerance limits
bluedot Solid state circuitry with LCD display
bluedot One year warranty
bluedot Holds Peak reading until reset
bluedot 0.1 Unit Resolution
bluedot Supplied in custom fit carrying case
bluedot Includes NIST Calibration Certificate
bluedot Conforms to ASTM D-2240

line

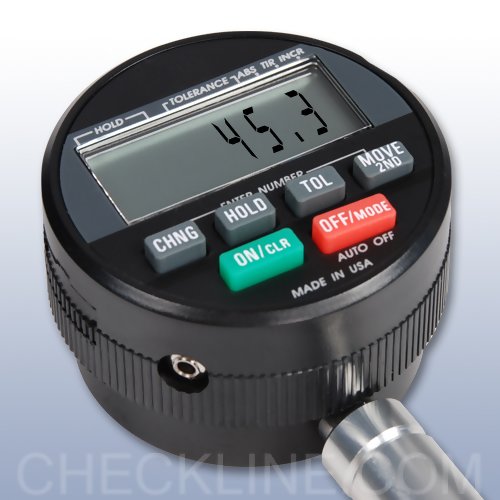

reddot Photo Gallery - click any photo to enlarge
line




line
reddot Related Products
line

RX-DD-MS
Digital Multi-Scale Durometer		related

bluedot Digital Multi-Scale Durometer allows user to measure in a variety of scales with one guage.


___________________________________________


SWC-1
RX Lab Durometer Software		related

bluedot Provides a running log of all measurements along with a chart of the data as well as statistical information

bluedot Includes RS-232 Cable


___________________________________________


Durometer Test Block Kits
Test Function Of Durometers		related

bluedot Enables user to perform a quick check for proper durometer operation


___________________________________________


RX-BF
"Big Foot" Durometer Foot Adapter		related

bluedot The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter


___________________________________________


RX-CLW
Constant Load Weight for Types A, B, O, OO & OOO		related

bluedot The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg



line
reddot Dimensions
line dimensions

line
reddot Complete Kit
line

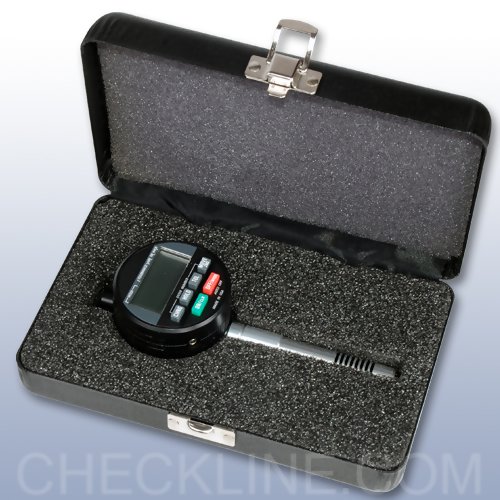

The RX-DD is supplied as a complete kit including the durometer, AC adapter & instruction manual in a foam-fitted metal carrying case.
complete kit

line
reddot Slim Probe Durometers
line
SlimProbe Durometers
We offer custom slim probe versions of most durometer models and types. The slim probe attachment can be modified to fit your specific needs or applications.

Click here for more information


line
reddot Specifications
line
Resolution0.1 Units
Dimensions2.25" x 6.125"
Weight7.15 oz.
Power Supply(2) 3V CR-2450 Batteries
AC Adapter Optional
Warranty1 year

line
reddot Download
line

manual Technical Information For RX-DD-M  Click Here To Download

manual PDF Instruction Manual  Click Here To Download
