MLT Portable Yarn Tension & Rate Meter

Yarn Tension Meter
Shorter setup times because existing items can be called up and repeated
Uniform stitch length ensures a uniform fabric structure
Price  $1,395.
Portable Yarn Tension & Rate Meter

The Model MLT WESCO meter is a stand-alone electronic apparatus for accurately measuring and displaying three (3) quality-critical parameters involved in knitting, namely, yarn consumption, yarn tension and yarn speed. All contribute to producing repeatable, uniform quality fabric and products from circular knitting machines with rotating needle cylinders and flat knitting machines, including all body, hosiery and sock machines.

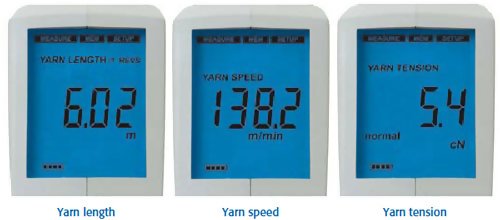

The WESCO MLT displays the Normal, Average and Peak values for yarn tension. All values are shown on an easy to read back-lit LCD display.

A unique, trigger-operated, yarn access system provides easy and sure yarn access and contact with a yarn tension-sensing pin and a yarn speed wheel, while a machine frame-mounted sensor counts revolutions every time a specific, rotating or moving magnetic part passes it, to provide machine RPM and yarn consumption information

This easy-to-use instrument accumulates the data required to produce repeatable, uniform material and products from one machine to the next, even when using different cylinder diameters.

line
reddot Features
line
bluedot Accurately measures Machine Speed, Yarn Length, Yarn Tension and Yarn Speed, in selectable metric or English units
bluedot Also displays yarn Normal, Average and Peak Tension values realized during the measuring periodd
bluedot Battery-powered, lightweight and well-balanced for high portability and easy handling
bluedot User can adjust the preset cylinder rotation count from 1 to 100 as desired
bluedot MLT WESCO gauge supplied with Battery Charger, Revolution Sensor, Data Transfer Cable, Sensor Holder, Magnet, Calibration Kit supplied in Carrying Case
bluedot 1-Year Warranty
line

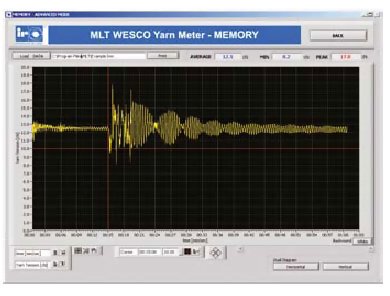

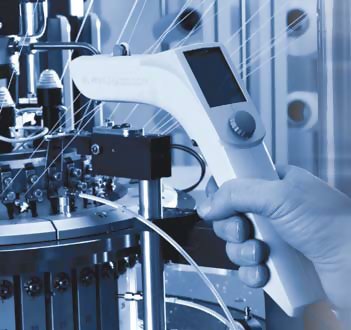

reddot Photo Gallery - click any photo to enlarge
line


line

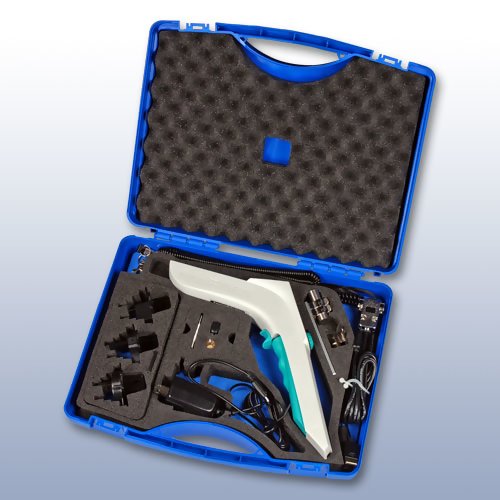

reddot Complete Kit
line

Supplied as a complete kit with MLT WESCO meter, Battery Charger (with US, EU, UK, & Australia Plug Adapters), Revolution Sensor (with cable and plug), Data Transfer cable with plug, Holder for Revolution Sensor, Magnet with holder, Calibration Kit (20g weight + yarn sample) and Instruction Manual – all supplied in a foam-fitted Carrying Case

complete kit
line
reddot Specifications
line
Power SupplyTwo 1.2 V rechargeable NiMH batteries
Battery ChargerPrimary, 100 to 240 V AC, 47 - 63 Hz; secondary 5 V, 2 A DC
LCD Digital Display1 to 9,999 metres or inches
Max yarn speed1,000 m/min or 1100 yd/min
Revolution measuring range1 to 100 revolutions
Battery Life50 hours in normal service
Battery stand-by time300 hours
Yarn tension0 - 50 cN (normal, average or peak value)
Accuracy± 1 cm or ± 1 inch
line
reddot Download
line
manual PDF Brochure  Click here to download
manual Instruction Manual  Click here to download
manual Spare Parts Listing  Click here to download
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

MLT Portable Yarn Tension & Rate Meter - Model




Accessories:
Accessories for Textile Test Instruments:







  • Manufactured by: Checkline
