Running Diameter & Thickness Gauges
For measuring the diameter of moving wire, filaments and thickness of ribbon and narrow fabrics
Measuring Range: 0.001" - 0.200" (0.01-5.00mm)
Price: $395.00
Running Diameter & Thickness Gauges |
Measuring Ranges: 0 - 0.200” or 0 – 5.00 mm
Resolution: 0.001”, 0.01 mm, 0.005 mm Ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, make these dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foil, ribbon, narrow fabrics, etc. – without stopping the manufacturing process.
 |
 Features

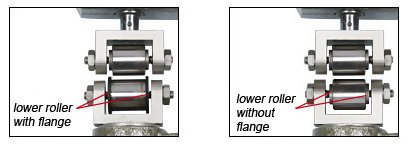

 Precision steel rollers for wire speeds up to 500 ft/min | | Lightweight and compact | | Available with or without roller flanges |
| | Inch or mm versions | | Pocket-Sized | | Traceable certificate optionally available |
|
Download
Related Products
FD-50R
Digital Thickness Gauge |  |
For measuring moving objects, roller width 8.7 mm Opening by lifting device (lever) - self closing |
Specifications
| Model | Measuring Range
Metric | Resolution | Lower
Roller
Flanges | | J50R | 0.01 mm - 5.00 mm | 0.01 mm | Yes | | J50RO | 0.01 mm - 5.00 mm | 0.01 mm | No | | J50RS | 0.005 mm - 5.00 mm | 0.005 mm | Yes | | J50RSO | 0.005 mm - 5.00 mm | 0.005 mm | No | | Inch | | | | JZ50R | 0.001" - 0.200" | 0.001" | Yes | | JZ50RO | 0.001" - 0.200" | 0.001" | No | | Jaw depth | 2 inches (50 mm) | | Spring force | 3.6 ozf (1 Newton) | | Scale diameter | 2.25 inches (50 mm) | | Roller width | 0.34 inches (8.70mm) | | Maximum line speed | 164 yd/min (150 m/min) |
Note: For ribbon and narrow fabric material, use models without flanges. |
