Name: Checkline FD-200-25 Digital Thickness Gauge
Brand: Checkline
SKU: 633

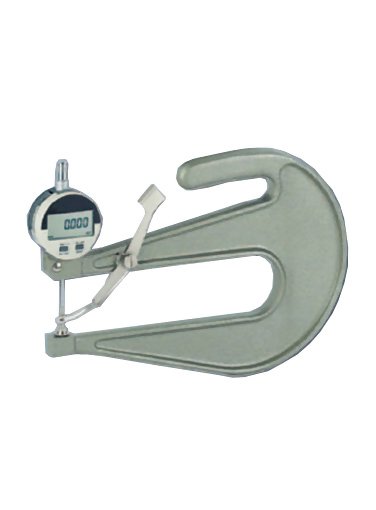

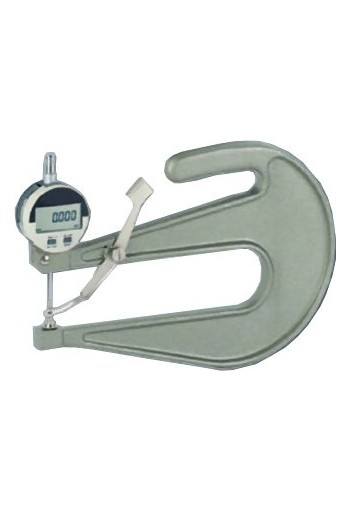

Checkline FD-200-25 Digital Thickness Gauge

See More Dial Thickness Gauges

Measuring Range: 0 - 25 mm / 1 inch

Resolution: 0.001 inch / 0.01 mm

8" (200 mm) Jaw Depth

The Checkline FD-200-25 Digital Thickness Gauge has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.

The FD-200-25 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

line

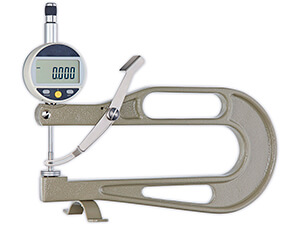

Kit Contents
line

Thickness gauge FD-200-25
Battery
Transport packing case

line
Features
line

Operating by lifting device - self closing
User selectable units mm and inch
Easy to read LCD Display
Resolution 0.001 mm (0.0001 inch)
RS 232 output for datacollection
Calibration Certificate included with all FD Models

line
Specifications
line

Resolution	0.001 mm / 0.0001 inch
Measuring range	0 - 25 mm / 1 inch
Depth of jaws	200 mm
Display	LCD 6 digit, 8.5 mm high
Measuring principle	Capacitive
Measuring pressure	< 1.4 N
Feeler shape	a,b,c,d or e
Lifting device	Operating by lifting device - self closing
Data output	RS 232, optical coupling
Power supply	Battery 3 V Lithium, CR 2032
Temperature range	10 - 45°C
Weight, net	1000 g

line

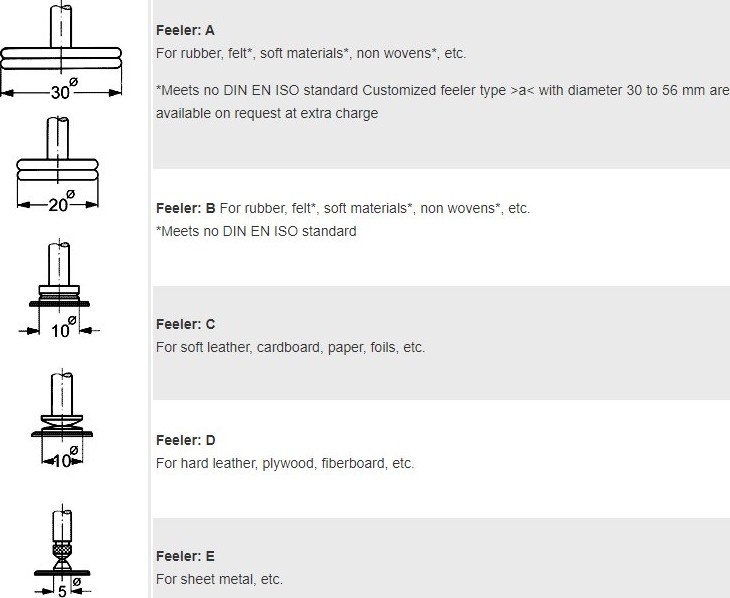

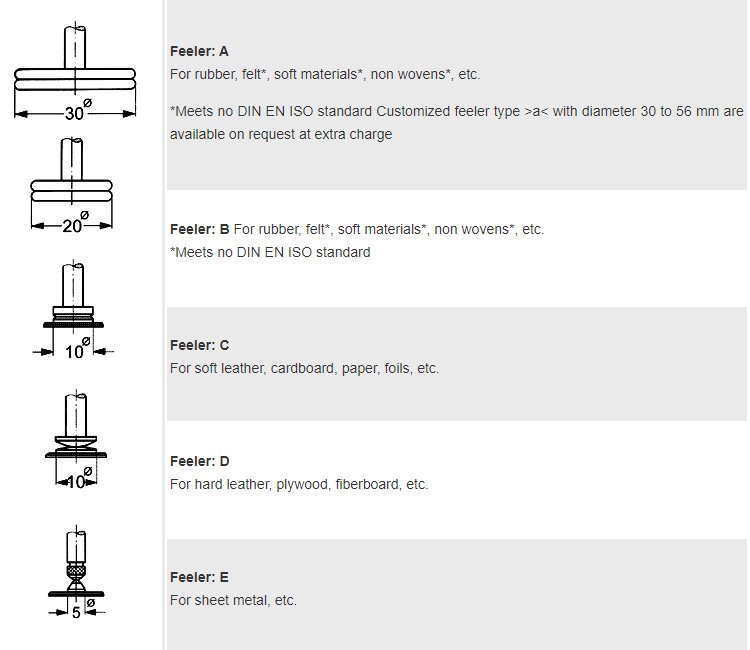

Feeler Shape
line

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.

line
Related Products
line

TSTG
Table Stand for Thickness Gauge

Table stand for thickness gauge

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline FD-200-25-A Digital Thickness Gauge, Range 0-1.00", Depth of Jaw 200mm, Feeler A For Rubber, Felt, Soft materials, Non Wovens View Model Details

$1,205.00

Checkline FD-200-25-B Digital Thickness Gauge, Range 0-1.00", Depth of Jaw 200mm, Feeler B for Rubber, Felt, Soft materials, Non Wovens View Model Details

$1,205.00

Checkline FD-200-25-C Digital Thickness Gauge, Range 0-1.00", Depth of Jaw 200mm, Feeler C for Soft Leather View Model Details

$1,205.00

Checkline FD-200-25-D Digital Thickness Gauge, Range 0-1.00", Depth of Jaw 200mm, Feeler D for Hard Leather View Model Details

$1,205.00

Checkline FD-200-25-E Digital Thickness Gauge, Range 0-1.00", Depth of Jaw 200mm, Feeler E for Sheet Leather View Model Details

$1,205.00

Checkline FD-200-RO Digital Thickness Gauge, 200mm Jaw Depth, 25mm / 1 inch range - with Rollers View Model Details

$1,755.00

Checkline FD-200-R Digital Thickness Gauge, 200mm Jaw Depth, 25mm / 1 inch range - with Flanged Rollers View Model Details

$1,502.00

Recommended Accessories

PRICE

NIST-CAL Optional NIST Traceable Certificate(See Sample in Downl

$110.00

DCPRMD-USB USB Data Output Cable for data transfer to PC

$182.00

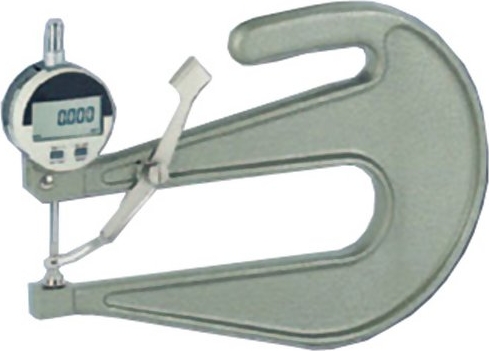

Checkline FD-200-25 Digital Thickness Gauge

Images & Videos

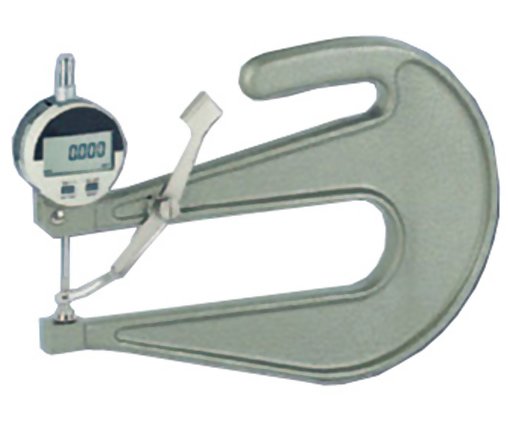

Checkline FD-200-25 Digital Thickness Gauge
