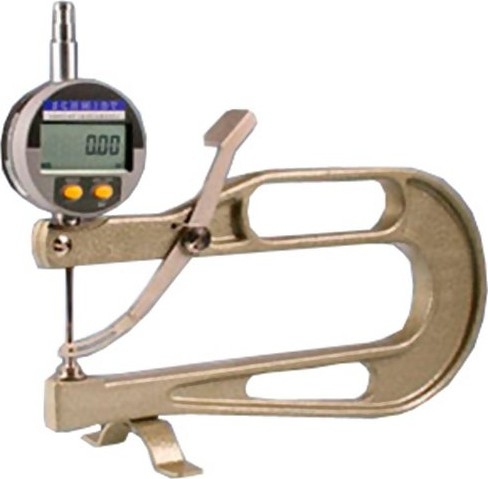

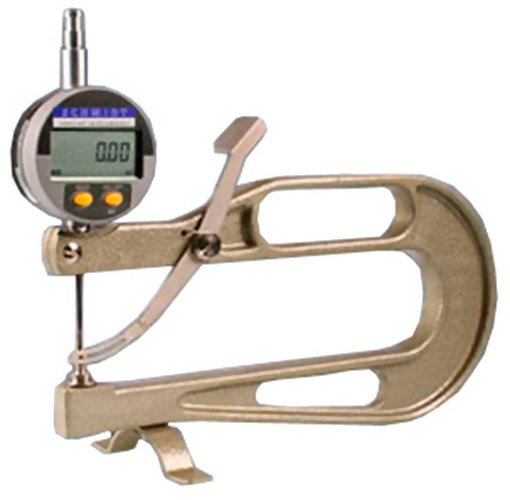

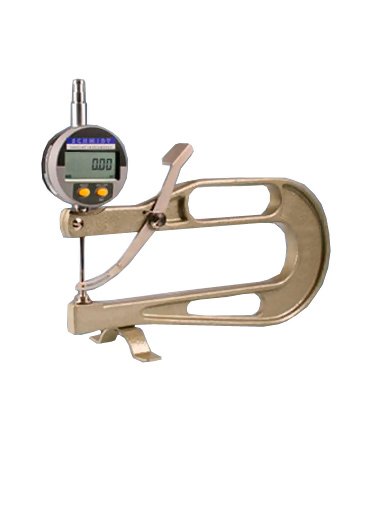

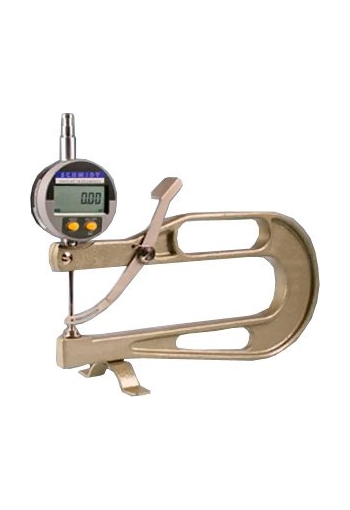

Digital Thickness Gauge
Resolution: 0.001 inch / 0.01 mm
8" (200 mm) Jaw Depth
The digital thickness gauge serie has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.
The JD-200-25 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Kit Contents
- JD-200-25 Digital Thickness Gauge
- Packing Case
Features
- Operating by lifting device - self closing
- Resolution 0.01 mm (0.001 inch)
- Includes swing-out foot for on-table operation
- Dial gauge model: Sylvac S229
- User selectable units mm and inch
- RS 232 output for datacollection
- Easy to read LCD Display
Specifications
| Resolution | 0.01 mm / 0.001 inch |
| Measuring range | 0 - 25 mm / 1 inch |
| Depth of jaws | 200 mm |
| Display: | LCD 6 digit, 8.5 mm high |
| Measuring principle | Capacitive (Sylvac) |
| Measuring pressure | < 1.4 N |
| Feeler shape | a,b,c,d or e |
| Lifting device | Operating by lifting device - self closing |
| Data output | RS 232, optical coupling |
| Power supply | Battery, 3 V Lithium, CR 2032 |
| Temperature range | 10-45°C |
| Weight, net | 700 g |
Tension Ranges

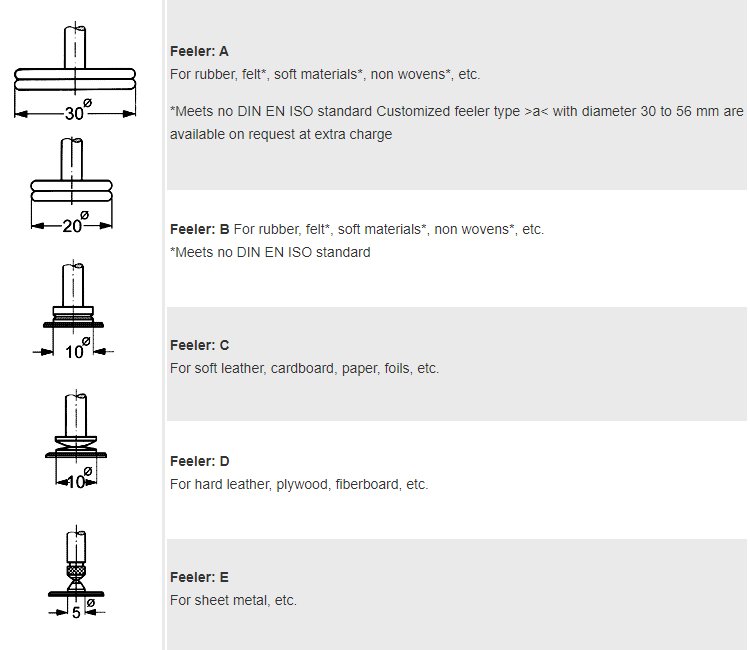

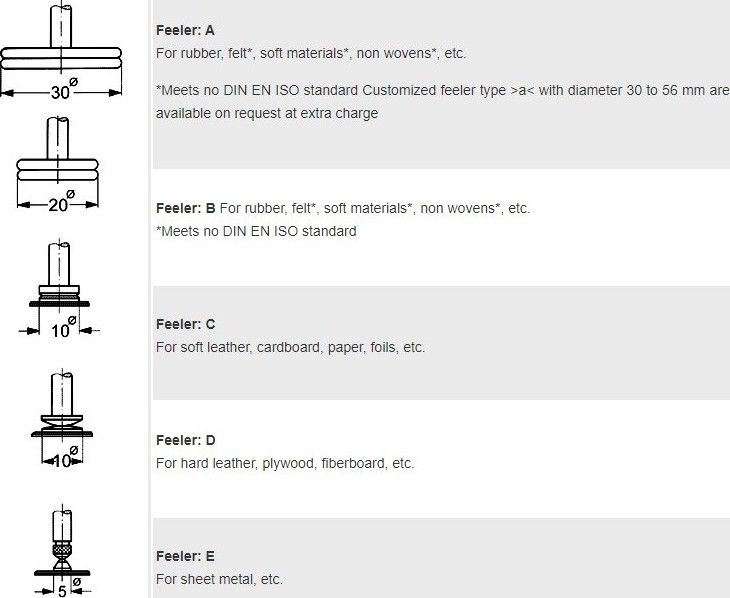

Feeler Shape
To order, please indicate the desired feeler, e.g. JD-200-B for gauge with feeler >b<. this means that not all feelers are included in the package!< />>
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard Customized feeler type >a |
