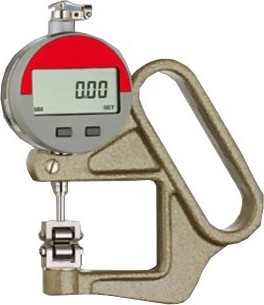

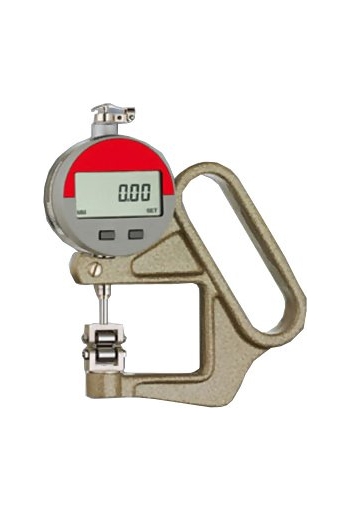

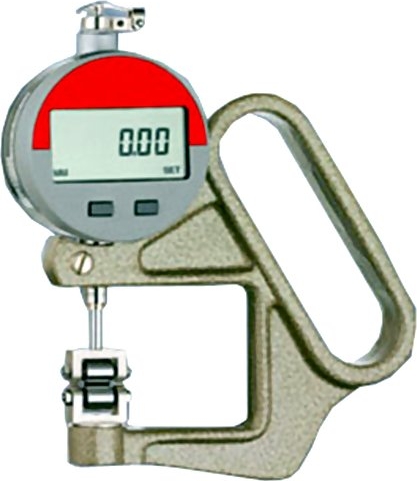

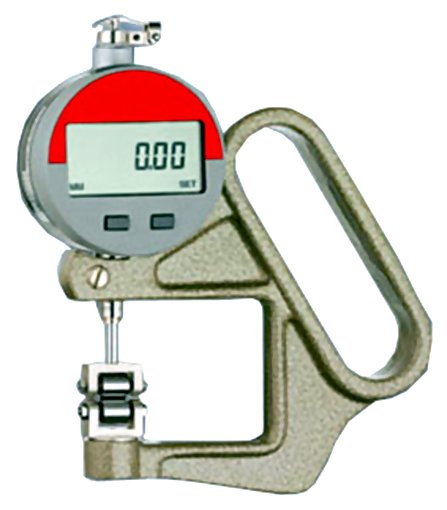

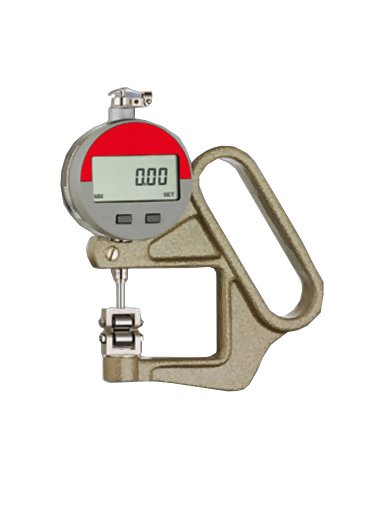

Digital Running Diameter and Thickness Gauges

---

Measuring Range: 0 - 10 mm / 0 - 0.4 inch

---

Resolution: 0.001 inch / 0.01 mm

---

2" (50 mm) Jaw Depth

---

Measuring Range: 0 - 10 mm / 0 - 0.4 inch
Resolution: 0.01 mm (0.001") or 0.001 mm (0.0001")

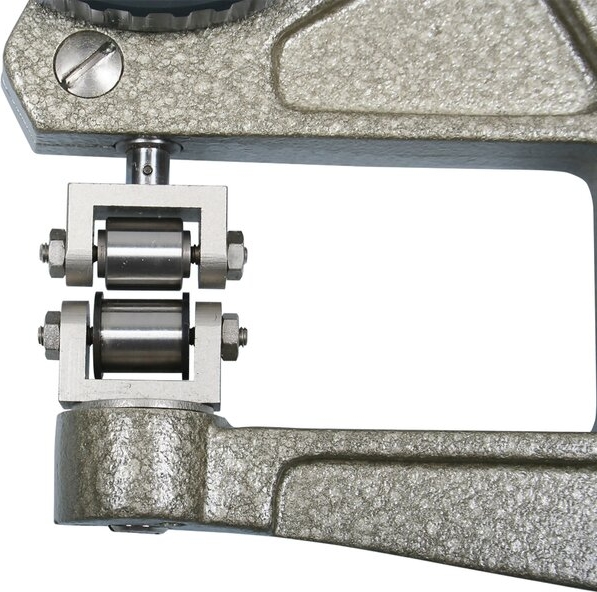

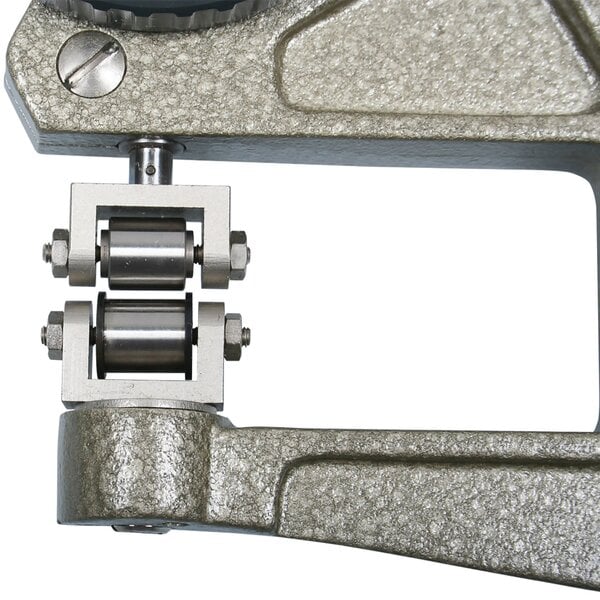

Ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, make these dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foils, ribbon, narrow fabrics, etc. - without stopping the manufacturing process.

Features

• Easy to read digital display
• Precision steel rollers for wire speeds up to 500 ft/min
• Lightweight and compact
• Available with or without roller flanges
• Metric and inch units, selectable
• USB Data Output (requires optional cable, DCPRMD-USB)
• Traceable certificate optionally available

Specifications

Resolution	0.01 mm / 0.001 inch
Measuring range	0 – 10 mm / 0.4 inch
Depth of jaw	50 mm
Measuring principle	Self closing
Display	LCD 6 digit, 8.5 mm high
Measuring system	Capacitive (Sylvac)
Temperature range	10 – 45 °C
Battery	3 V Lithium, CR 2032
Data output	USB, RS-232, galvanic isolation
Weight, net (gross)	300 g (350 g)

Available Models

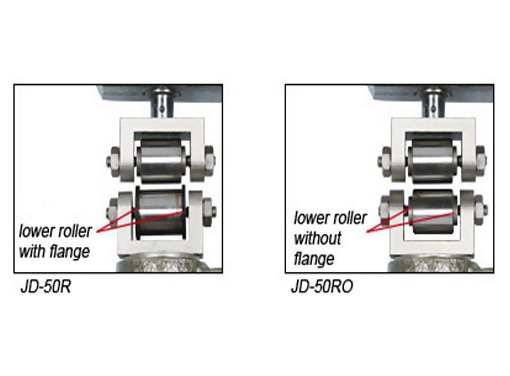

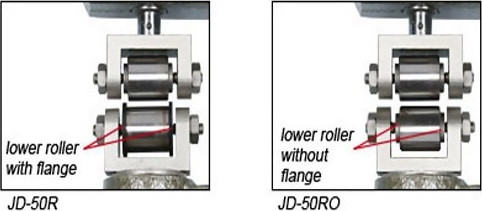

The lower roller is standard equipped with flanges. If lower roller is requested without flange (material width > 8.4 mm).
