Digital Torque Wrench with optional USB Data Output
Ranges from 10 N-m to 2000 N-m
Price: $699.00 to $1,895.00

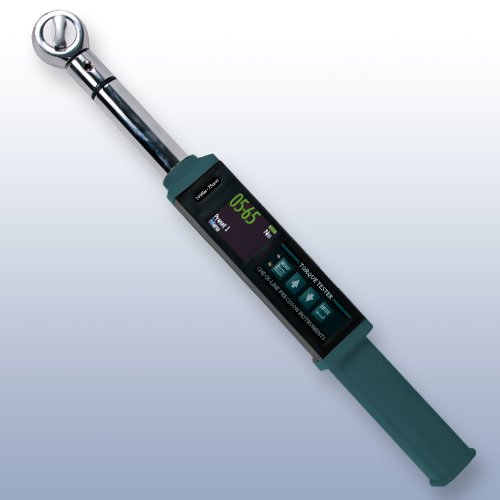

ETW Digital Torque Wrench |
The ETW is precision torque measuring wrench for use in lab or production environments. |

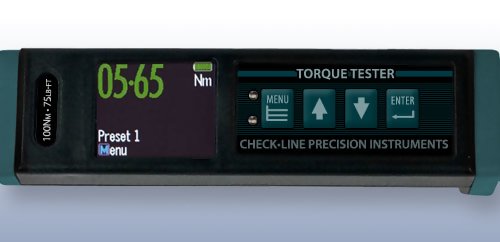

  Features  Bi-Directional Accuracy better than 1% | | Robust Bi-Directional Ratchet Head | | Large Color OLED Screen. High Visibility, Warning Signals | | Ergonomic Soft Grip for comfort |
| | Battery Life of over 180 hours | | Traceable Calibration Certificate Included | | 2 Year Warranty | | PR & SP Models include USB output & data transfer / analysis software |
|

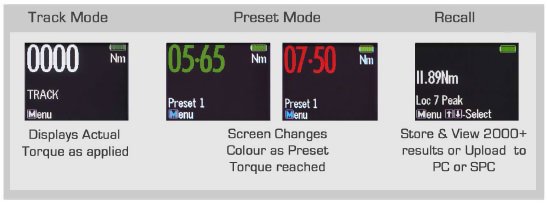

| Feature Comparison Chart | EZ | PR | SP | | Peak Measurement Mode | - |  | | | Memory (2000+ Measurements) | - | | | | USB Output, Software & Cable | - | | | | SPC & PLC Output | - | - | | | 99 Programmable Presets | - | - | | | Multiple languages | - | - | | | Calibration Reminder; by date or # of measurements | - | - | |
|
Photo Gallery - click any photo to enlarge Torque Ranges | Model | Range | Std Drive | ETW-10 | 1 - 10 N-m | 1/4" | ETW-20 | 2 - 20 N-m | 1/4" | ETW-50 | 5 - 50 N-m | 3/8" | ETW-100 | 10 - 100 N-m | 3/8" | ETW-135 | 13.5 - 135 N-m | 3/8" | ETW-150 | 15 - 150 N-m | 1/2" | ETW-200 | 20 - 200 N-m | 1/2" | ETW-250 | 25 - 250 N-m | 1/2" | ETW-300 | 30 - 300 N-m | 1/2" | ETW-340 | 34 - 340 N-m | 1/2" | ETW-600 | 60 - 600 N-m | 3/4" | ETW-800 | 80 - 800 N-m | 3/4" | ETW-1000 | 100 - 1000 N-m | 3/4" | | | Alternative Unit Calculator- recasts values in above table
(units in RED can be selected on gauge. Other units for reference only) |
Specifications | Accuracy | CW - ±1%
CCW - ±1%
10 - 100% of capacity (readings start at 2%) | | Resolution | 0.01 N-m / 0.1 in-lb / 0.01 ft-lb | | Sampling Frequency | 500 Hz (500 samples/sec) | | Display Update Rate | 4 Hz (4 times/sec) | | Memory | 2000+ readings | | Operation Mode | Peak hold/ Track /Preset | | Unit Selection | Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in | | Length | 400mm (Ranges 10 - 135)
625mm (Ranges 150 - 340) | | Head Type | Robust Bi-Directional Ratchet | | Battery | 4x AA | | Battery Life | 180 Hours | | Operating Temperature | -10°C ~ 60°C | | Storage Temperature | -20°C ~ 70°C | | Humidity | Up to 90% non-condensing | | Warranty | 2 Year |
