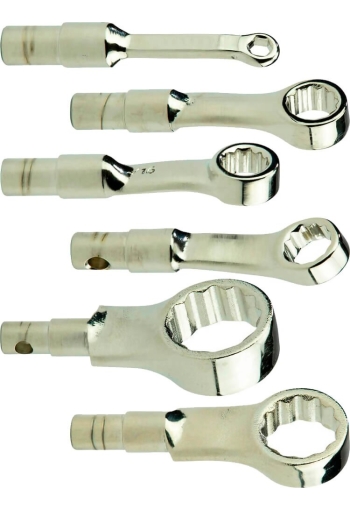

Box Heads For
Mountz TBIH Break-Over Torque Wrench &
Mountz TBX Break Over Wrenches
Designed for maximum torque and precision, the box end wrench head features a fully enclosed head that grips fasteners securely on all sides. This design prevents slippage, minimizes the risk of rounding off bolt edges, and provides superior leverage for high-torque applications. Whether working in tight spaces or open areas, the box-end wrench ensures a firm, stable grip, making it an essential tool for assembly, maintenance, and repair tasks. It is ideal for high-torque applications and stubborn fasteners, preventing damage to softer materials.
Features
Order Guide
| Part Number | Model | Wrench Head |
| 068120 | Box Head TBIH 1/8 | 1/8" |
| 068121 | Box Head TBIH 5/32 | 5/32" |
| 068122 | Box Head TBIH 3/16 | 3/16" |
| 068123 | Box Head TBIH 7/32 | 7/32" |
| 069240 | Box Head TBIH 1/4 | 1/4" |
| 068124 | Box Head TBIH 1/4 | 1/4" |
| 069241 | Box Head TBIH 9/32 | 9/32" |
| 068125 | Box Head TBIH 9/32 | 9/32" |
| 069242 | Box Head TBIH 5/16 | 5/16" |
| 068126 | Box Head TBIH 5/16 | 5/16" |
| 069243 | Box Head TBIH 11/32 | 11/32" |
| 069244 | Box Head TBIH 11/32 | 11/32" |
| 068127 | Box Head TBIH 11/32 | 11/32" |
| 069245 | Box Head TBIH 3/8 | 3/8" |
| 068128 | Box Head TBIH 3/8 | 3/8" |
| 069247 | Box Head TBIH 7/16 | 7/16" |
| 068129 | Box Head TBIH 7/16 | 7/16" |
| 069247 | Box Head TBIH 1/2 | 1/2" |
| 068130 | Box Head TBIH 1/2 | 1/2" |
| 069249 | Box Head TBIH 9/16 | 9/16" |
| 068131 | Box Head TBIH 9/16 | 9/16" |
| 069250 | Box Head TBIH 5/8 | 5/8" |
| 068132 | Box Head TBIH 5/8 | 5/8" |
| 068133 | Box Head TBIH 11/16 | 11/16" |
| 069252 | Box Head TBIH 3/4 | 3/4" |
| 068134 | Box Head TBIH 3/4 | 3/4" |
| 068137 | Box Head TBIH 17mm | 17 mm |
| 069258 | Box Head TBIH 6mm | 6 mm |
| 068150 | Box Head TBIH 6mm | 6 mm |
| 068151 | Box Head TBIH 7mm | 7 mm |
| 069260 | Box Head TBIH 7mm | 7 mm |
| 069261 | Box Head TBIH 8mm | 8 mm |
| 068152 | Box Head TBIH 8mm | 8 mm |
| 068153 | Box Head TBIH 9mm | 9 mm |
| 069292 | Box Head TBIH 9mm | 9 mm |
| 069263 | Box Head TBIH 10mm | 10 mm |
| 068154 | Box Head TBIH 10mm | 10 mm |
| 069264 | Box Head TBIH 11mm | 11 mm |
| 068155 | Box Head TBIH 11mm | 11 mm |
| 069265 | Box Head TBIH 12mm | 12 mm |
| 068156 | Box Head TBIH 12mm | 12 mm |
| 069266 | Box Head TBIH 13mm | 13 mm |
| 068157 | Box Head TBIH 13mm | 13 mm |
| 068313 | Box Head TBIH 5mm | 5 mm |
Related Products

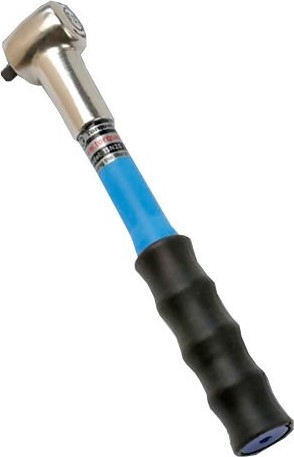

Mountz TBIH Break-Over Torque Wrench with Interchangeable Head
- Torque limiting wrench improves control of the tightening process and reduces the risk of over and under-tightening.
- The preset wrench ensures that the correct torque value is consistently applied to each fastener by reducing the risk of the operator tampering with settings.
- Interchangeable end fitting design - selectable head types and sizes.
