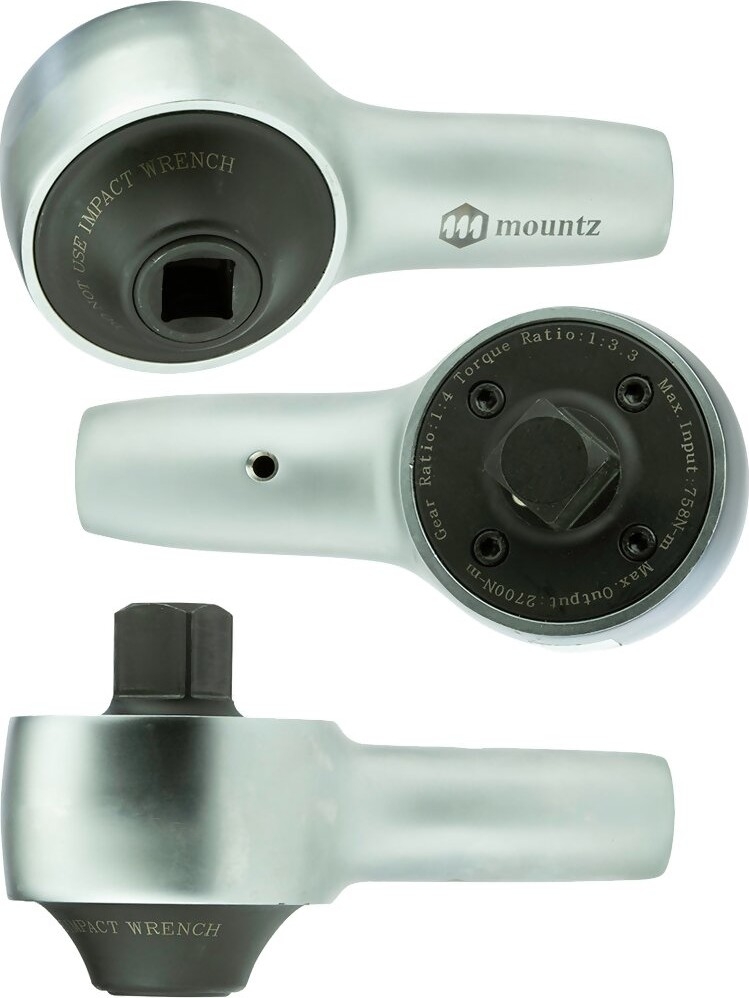

Mountz MTM Manual Torque Multipliers
Precision tightening for heavy duty fastening connections
Portable, compact and lightweight
Ideal for remote locations where no source of power is available
The Mountz MTM Manual Torque Multipliers is a low cost solution that's ideal for wheel nuts and remote locations where air and electricity aren’t easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.

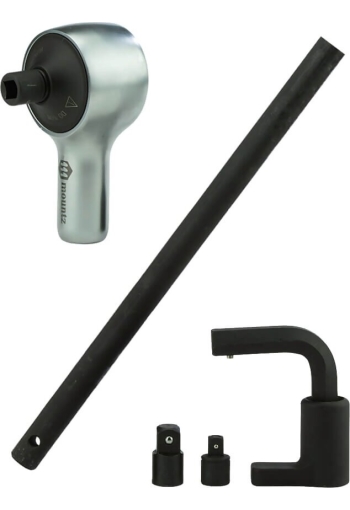

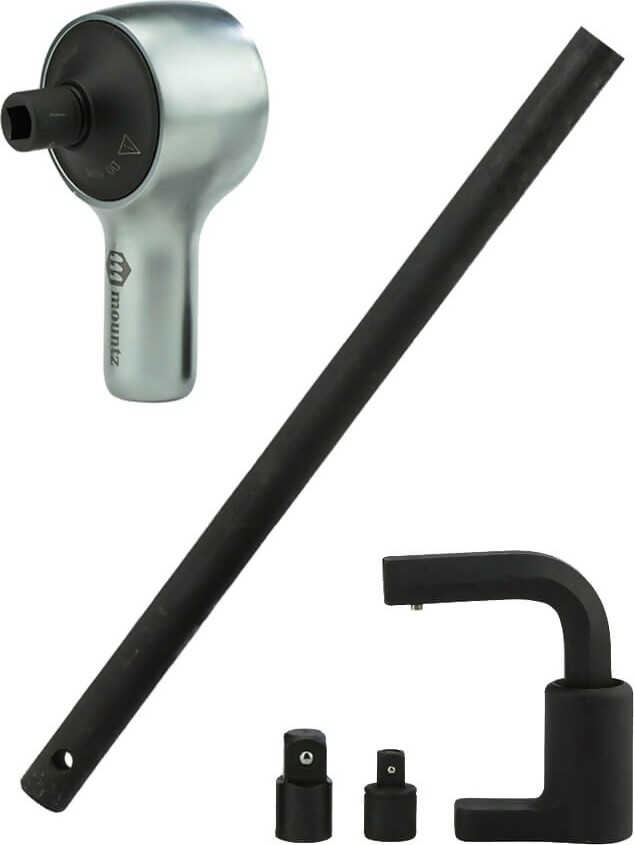

Kit Contents
- Mountz MTM-15 Manual Torque Multipliers
- Reaction Bar (L = 380mm)
- Reaction 90° Base
- Reaction 90° Bar
- Plastic Case
- Mountz MTM-27 Manual Torque Multipliers
- Reaction Bar (L = 380mm)
- Reaction 90° Base
- Reaction 90° Bar
- Plastic Case
Features
- Precision tightening for heavy duty fastening connections
- Commonly used in construction, heavy equipment and power generation industries
- Portable, compact and lightweight
- Constructed with quality steel and matted finish
- Torque Multiplication Ratio - low energy input with high torque output
- For operation in combination with a torque wrench
- Ideal for remote locations where no source of power is available
- Accuracy better than ± 5%
Order Guide
| Model | MTM-15 | MTM-27 |
| Part Number | 215026 | 215027 |
| American | 170 - 1105 lbf.ft | 559 - 2000 lbf.ft |
| S.I. | 231 - 1500 N.m | 758 - 2700 N.m |
| Metric | 23.6 - 153 kgf.m | 77.3 - 275.4 kgf.m |
| Torque Multiplication | 6.5:1 | 3.3:1 |
| Input Drive | 1/2 F/Sq | 3/4 F/Sq |
| Output Drive | 3/4 M/Sq | 1 M/Sq |
