DTX2 Cap Torque Testers - Fast Delivery on DTX2 Cap Torque Testers

Price: $1,635.00

DTX2 Cap Torque Tester

Cap Torque Tester with Memory & Data Output

3 Ranges up to 85 lbf-in

Units of measure: lbf-in, kgf-cm, and N-cm (selectable)

Measures in "Continuous" or "Peak" mode

DTX2 Cap Torque Tester

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD

The new easy-to-use Check-Line DTX2 cap torque tester accurately measures twist off force. The tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the serial output. Use the real time mode to display torque transients, or peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 1" high standard pegs (optional long pegs available).

Features of the DTX2 Cap Torque Tester

	2 Year Warranty		Overload capacity 200% of F.S.
	Clamps containers from 1/2"~ 7" (13 - 178 mm) in diameter		Both clockwise and counterclockwise operation
	lbf-in, kgf-cm, and N-cm units are selectable		Can be operated with internal rechargeable battery or AC adapter
	Real time and peak mode (selectable)		Tare function
	1000 Data memory for computer download		Serial Output for connection to Printer or PC
	Includes NIST Traceable Calibration Certificate		ISO/IEC 17025 Long-Form Certificate & Test Data is optionally available

Photo Gallery for the DTX2 Cap Torque Tester - click any photo to enlarge

Force Ranges of the DTX2 Cap Torque Tester

Model	Capacity lbf-in	Capacity kgf-cm	Capacity N-cm
DTX2-15B	15.00 (0.01 lbf-in)	20.00 (0.01 kgf-cm)	200.0 (0.1 N-cm)
DTX2-40B	40.00 (0.01 lbf-in)	50.00 (0.01 kgf-cm)	500.0 (0.1 N-cm)
DTX2-85B	85.00 lbf-in (0.1 lbf-in)	100.0 kgf-cm (0.1 kgf-cm)	1000 N-cm (1 N-cm)

Accuracy:

±0.5% F.S. ±1 LSD (Resolution)

Typical Torque Values (LB-IN)

Cap dia. in mm	Phenolic/ Urea Cap On Glass		Phenolic/Urea Cap on Plastic		PP/PE Cap on Glass		PP/PE Cap on Plastic
Cap dia. in mm	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque
15	8	4	6	3	12	7	8	4
18	9	5	7	4	13	8	9	5
20	10	5	8	4	15	9	10	5
22	11	6	9	5	17	10	11	6
24	12	6	10	5	18	11	12	6
28	14	7	12	6	21	12	14	7
33	18	9	15	7	24	14	17	8
38	20	10	17	7	29	17	19	9
43	22	11	18	9	33	20	22	11
48	24	14	20	10	26	22	24	12
58	28	14	24	12	44	26	29	14
70	35	18	28	14	52	32	35	17
89	45	22	36	18	65	40	45	22
100	50	25	40	20	75	38	50	25

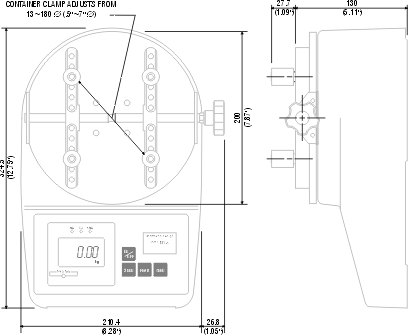

Dimensions of the DTX2 Cap Torque Tester

Related Products for the DTX2 Cap Torque Tester

CAP-T
Cap Torque Tester

3 Year Warranty

Outstanding Value

Specifications of the DTX2 Cap Torque Tester

Max. Sample Diameter:	1/2" to 7" (13 - 178 mm)
Gross Shipping Weight:	14 lbs (6.4 g)
Shipping Dimensions:	17 x 13 x 10" (approx.)
Pegs:	1" (standard) 4" (optional)

Downloads for the DTX2 Cap Torque Tester

PDF Instruction Manual Click here to download
