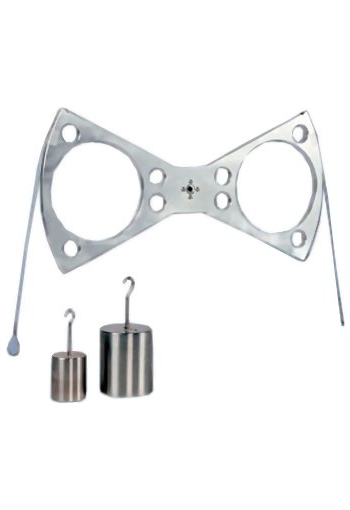

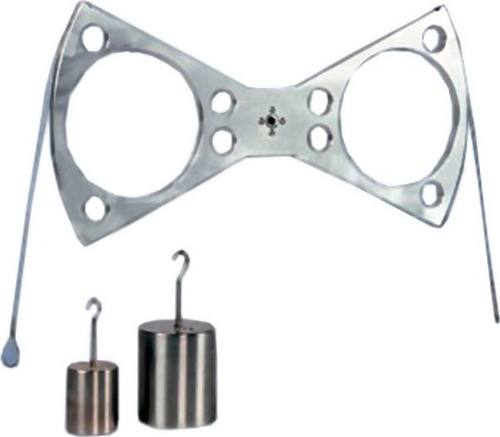

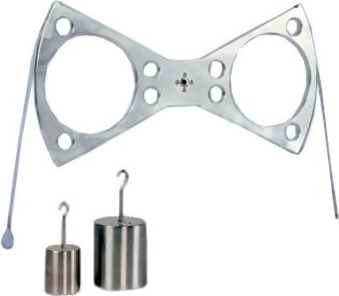

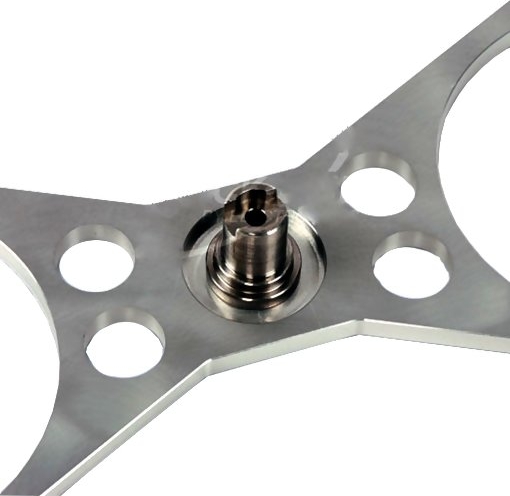

Imada SBK-492 Calibration Fixture for DTX2 Cap Torque Tester

---

Load Weight Sold Separately

---

The Imada SBK-492 Calibration Fixture for DTX2 Cap Torque Tester is a precision calibration fixture for the DTX2 Cap Torque Tester, allowing you to test and recalibrate in-house. Requires a precision weight set, refer to table below for required weights. (must be purchased from alternate vendor).

Specifications

Model	DTX / DTX2-15	DTX / DTX2-40	DTX / DTX2-85
Capacity (kgf-cm)	20.00	50.00	100.0
Allowable Range (kgf-cm)	19.90 ~ 0.10	49.75 ~ 50.25	99.5 ~ 100.5
Allowable Tolerance (kgf-cm)	0.10	0.25	0.5
*Weight (kg)	1	2.5	5

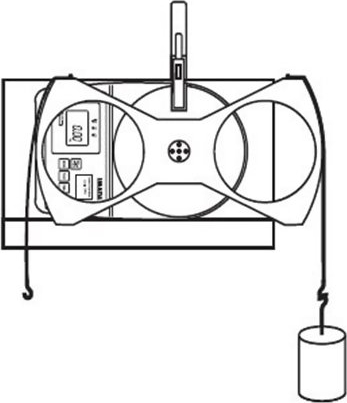

*Weight is appropriate for 20 cm radius calibration arm
