DDM-2000 Digital Precision Foil Thickness Gauge

Digital Precision Foil Thickness Gauge
Measuring Range up to 25% with resolution of 0.1%
Measuring range: .1" (3 mm)
Accuracy of ± .00012" (3 µm)
Price  $795.
Digital Precision Foil Thickness Gauge

2 models available:
- DDM-2007 with feeler pressure of 0.7 N
- DDM-2020 with feeler pressure of 2.0 N

Measuring range: .1" (3 mm)
Resolution: .00005" (0.001 mm / 1 µm)
Maximum error: ± .00012" (3 µm)

This handy thickness gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.
line
reddot Features of the DDM-2000 Digital Precision Foil Thickness Gauge
line
bluedot Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
bluedot Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure
bluedot Special purpose model with resolution of .00005" (0.001 mm / 1 µm)
bluedot Accuracy of ± .00012" (3 µm)

line
reddot Feeler Shape
line

Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.

line

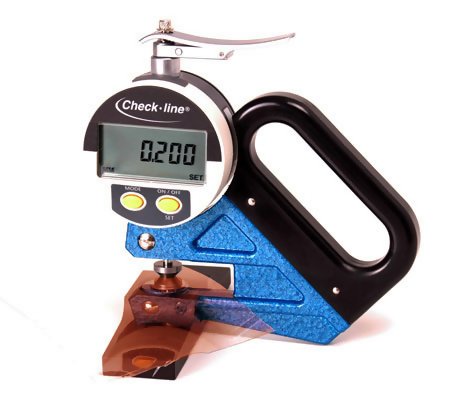

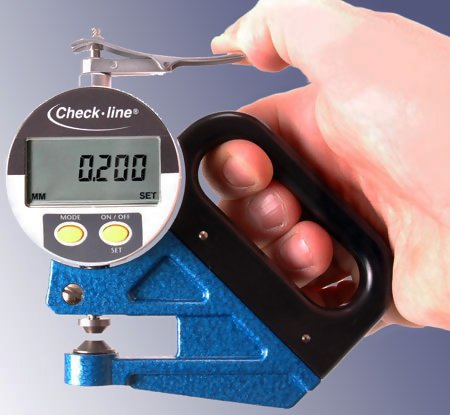

reddot Photo Gallery for the DDM-2000 Digital Precision Foil Thickness Gauge - click any photo to enlarge
line


line

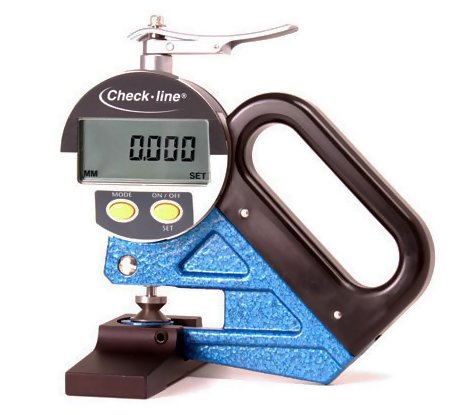

reddot Optional Table Stand
line
An optional table stand is available to convert a the handheld thickness gauge into a table model.

Simply place the thickness gauge into the table stand and tighten the Hex screws with the included Allen Hex fastener.

line
reddot Specifications of the DDM-2000 Digital Precision Foil Thickness Gauge
line
Resolution .00005" (0.001 mm / 1 µm)
Measuring range .1" (3 mm)
Accuracy ± .00012" (3 µm)
Depth of jaw 1.18" (30 mm)
Feeler Shape F - 6,35 mm Ų flat
Measuring pressure available with 0.7 N and 2.0 N closing pressure
Measurment by spring load Operated by lifting device - self closing
Warranty 1 year
line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

DDM-2000 Digital Precision Foil Thickness Gauge - Model





Accessories:
Accessories for Dial Thickness Gauges
