CMA03-CH Cable mounted strain gauge measuring amplifier


Call for Price

Cable mounted strain gauge measuring amplifier - Cylindrical Housing Design

Cable mounted strain gauge measuring amplifier - Cylindrical Housing Design


The measuring amplifier CMA 03-CH is designed for universal use with strain gauge-based sensors. The special mechanical design as a cable mounted measuring amplifier allows a quick and space-saving installation without costly installation work.

CMA 03-CH amplifies the mV-signal of the sensor into the 10V-range. Installing the amplifier near the sensor increases interference resistance on signal transmission, e.g. in large facilities.

Best temperature stability, long-term stability and high accuracy are guaranteed by using modern technology.


line
reddot Features
line
bluedot Compact and robust aluminium flanged housing
bluedot 24V DC power supply, reverse-polarity protected
bluedot Available with voltage output 0 to ±10V or current output 0/4 to +20mA, unipolar
bluedot Fixed connection between sensor and amplifier
bluedot Great noise immunity and service reliability for use in rough industrial operation

line

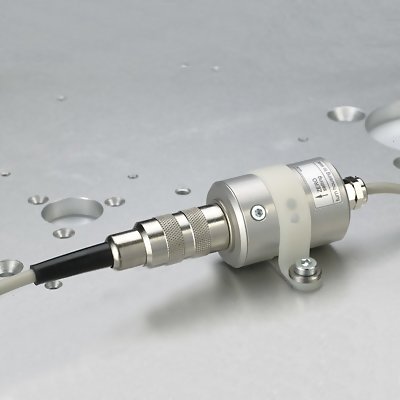

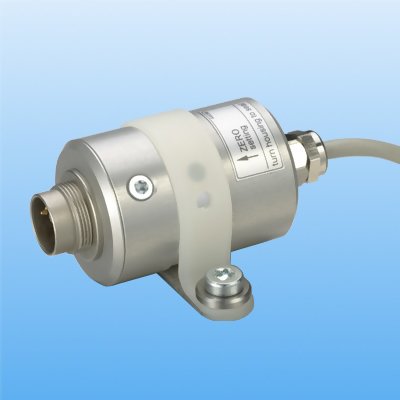

reddot Photo Gallery - click any photo to enlarge
line


line

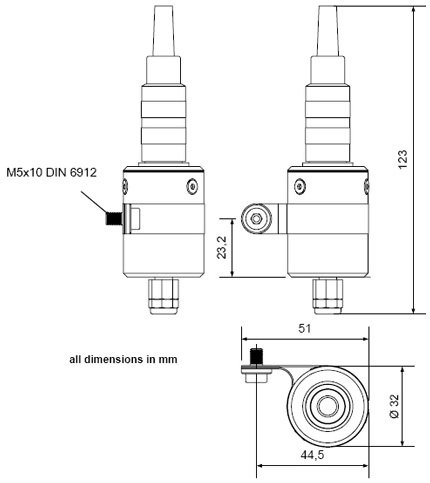

reddot Dimensions
line dimensions

line
reddot Related Products
line

DPM502
Digital Tension Indicator		related

bluedot Selectable “damping function” reduces display fluctuations

bluedot 24V DC power supply with galvanic isolation


line
reddot Download
line

manualPDF Specification Sheet Click here to download
