CAP-HT (MGTC) Hand-held Cap Torque Tester

Price: $1,395.00
Hand-Held Cap Torque Tester
3 Ranges up to 100 lbf-in / 1150 Kg-mm / 1150 N-cm
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
Measures in "Continuous" or "Peak" mode

CAP-HT Hand-held Cap Torque Tester


3 Ranges up to 100 In-lb

The CAP-HT is designed to measure the open and closure torque on bottles, vials, jars and more. This portable instrument eliminates the need to secure closures in a fixture or more elaborate testing system. Serrated jaws securely grip cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm). Measures Real-time or Peak torque on easy-to-read LCD display (clockwise and counter-clockwise directions), and is available in three capacities from 12 to 100 lbin (135 to 1150 Ncm).


line
reddot Features of the CAP-HT Hand-held Cap Torque Tester
line
bluedot 3 Year Warranty
bluedot For cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm)
bluedot Supplied with NIST Calibration Certificate
bluedot Battery or AC operation
bluedot CE Certified

line
reddot Photo Gallery for the CAP-HT Hand-held Cap Torque Tester - click any photo to enlarge
line

Securely holds caps for testing

line
reddot Force Ranges of the CAP-HT Hand-held Cap Torque Tester
line
ModelCapacityResolution
CAP-HT-1212 lb-in
140 kg-mm
135 N-cm		0.01 lb-in
0.1 kg-mm
0.1 N-cm
CAP-HT-5050 lb-in
580 kg-mm
570 N-cm		0.05 lb-in
0.5 kg-mm
0.5 N-cm
CAP-HT-100100 lb-in
1150 kg-mm
1150 N-cm		0.1 lb-in
1 kg-mm
1 N-cm
line
reddot Related Products for the CAP-HT Hand-held Cap Torque Tester
line

CAP-T
Cap Torque Tester / Closure Torque Tester		related

bluedot 3 Year Warranty

bluedot Accepts samples up to 7.5" (189.4 mm) dia.

bluedot Outstanding Value

___________________________________________


CAP-HT-RS
Hand-held Cap Torque Tester
with Data Output & Memory		related

bluedot RS-232C, Digimatic and Analog outputs

bluedot 1000 Data memory for computer download


line

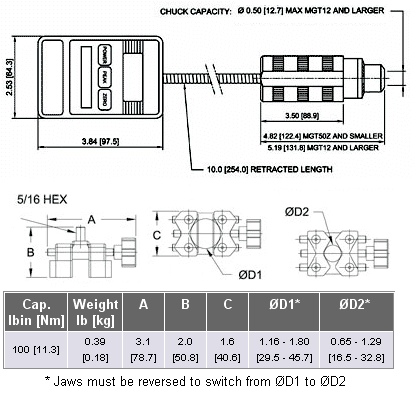

reddot Dimensions of the CAP-HT Hand-held Cap Torque Tester
line dimensions

line
reddot Complete Kit of the CAP-HT Hand-held Cap Torque Tester
line
The CAP-HT torque tester is supplied in a cushioned carrying case with AC adapter, battery, chuck key, user's manual, and NIST certificate of calibration
complete kit

line
reddot Specifications of the CAP-HT Hand-held Cap Torque Tester
line
Accuracy:± 0.5% of full scale ±1 digit
Sampling Rate30 times/s
Overload capacity:150% of capacity
Power supply:9V battery or AC adapter
Housing dimensionsSee Drawing
Weight1.8 lbs (0.8 kg)
Warranty3 Years

line
reddot Downloads for the CAP-HT Hand-held Cap Torque Tester
line

manualPDF Instruction Manual Click Here to Download
