3000EZ Series Coating Thickness Gauge

Price: $650.00 to $795.00
Measuring Range:
Ferrous: 0-140 mils (0-3500um)
Non-Ferrous: 0-120 mils (0-3000um)
Integrated Probe
Keypad-selectable units: Mils or Microns
Live Statistics Displays: Number of readings, mean, standard deviation, maximum and minimum reading of up to 99 readings

3000EZ Coating Thickness Gauge


2 Models:
DCF-3000EZ - Ferrous Only Model
DCFN-3000EZ - Combination Ferrous & Non-Ferrous Model

Range Ferrous: 0-140 mils (0-3500um)
Non-Ferrous: 0-120 mils (0-3000um)

The 3000EZ Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of laboratory and field applications and manufactured to international quality standards, the 3000EZ Series Coating Thickness Gauge will provide years of trouble-free use.

The 3000EZ Series Coating Thickness Gauge is designed for testing non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method).


line
reddot Features of the 3000EZ Series Coating Thickness Gauge
line

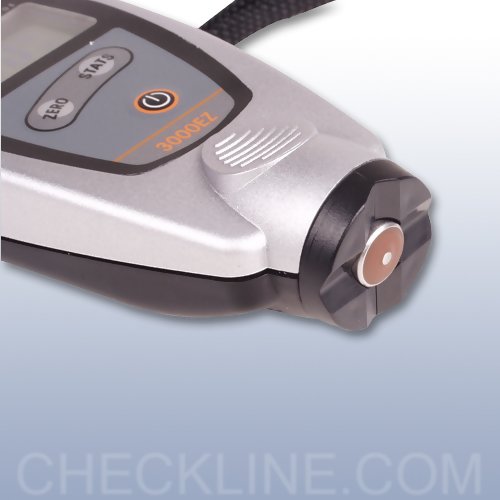

bluedot Integrated dual sensor with hard metal pole tip
bluedot Includes NIST Calibration Certificate
bluedot Menu can be displayed in 3 langauges, English, Spanish & French
bluedot Live statistics display for up to 99 readings
bluedot Keypad-selectable English or metric units.
bluedot 1 Year Warranty


line
reddot Photo Gallery for the 3000EZ Series Coating Thickness Gauge Click any photo to enlarge
line

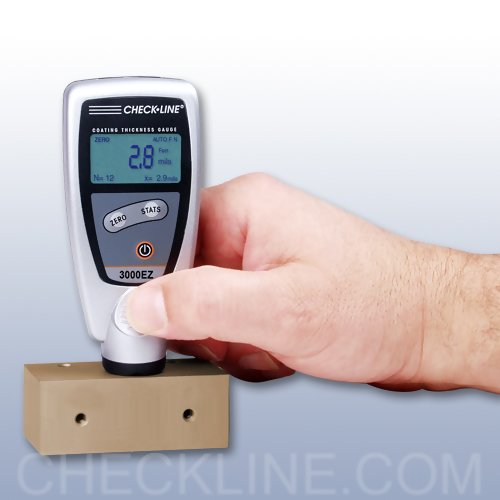

DCFN-3000EZ measuring anodized aluminum sample

line
reddot Related Products for the 3000EZ Series Coating Thickness Gauge
line

NTS
NIST Certified Plastic Shims		related

___________________________________________


TS-5CG
Commercial Grade Shim Set		related


line
reddot Complete Kit of the 3000EZ Series Coating Thickness Gauge
line

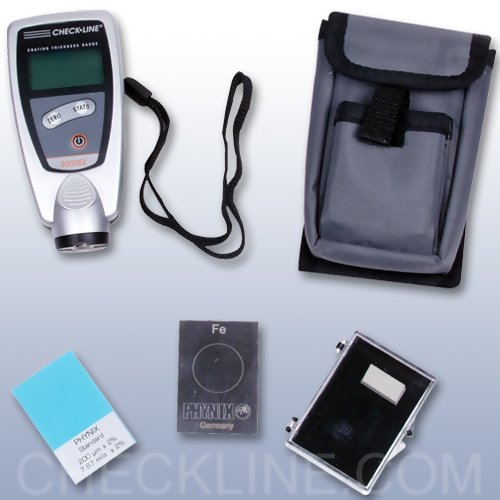

The 3000EZ Series Coating Thickness Gauge  is supplied as a complete kit with gauge, ferrous & non-ferrous zero plate(Combination model only), plastic test shim, 2 AA batteries, soft carrying pouch, instruction manual and calibration certificate.
complete kit

line
reddot Measuring Limits of the 3000EZ Series Coating Thickness Gauge
line

Minimum Radius for Convex Surfaces0.2" (5 mm)
Minimum Radius for Concave Surfaces2" (50mm)
Minimum Headroom4" (100 mm)
Minimum Sample Diameter0.5" (13 mm)
Minimum Substrate Thickness - F20 mils (0.5 mm)
Minimum Substrate Thickness - NFe2 mils (50 µm)

line
reddot Resolution Table
line
Mils
0 - 99.9 mils0.1 mils
100.0 - 140.0 mils0.2 mils
Microns (µm)
0 - 999 µm1 µm
1.000 - 2.498 mm0.002 mm
2.500 - 3.500 mm0.005 mm

line
reddot Specifications of the 3000EZ Series Coating Thickness Gauge
line
RangeFerrous: 0 - 140.00 mils (0 - 3500 µm)
Non-Ferrous: 0 - 120.00 mils (0 - 3000 µm)
Accuracy±0.1 mils (3µm) or 3% of reading, whichever is greater
ResolutionRefer To Table Above
Displayback-lit, 4-digit alphanumeric, digit height
Minimum Measuring Area0.5" x 0.5" (13 mm x 13 mm)
Minimum Curvature Radiusconcave: 0.2" (5 mm)
Minimum Substrate ThicknessFerrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 µm
Calibrationfactory calibration, zero calibration
Statistics ProgramNumber of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp.32 °F to 122 °F / 0 °C to 50 °C
Surface Temp.5 °F to 140 °F / -15 °C to 60 °C
Storage Temp.-4 °F to 140 °F / -20 °C to +60 °C
Power2 AAA 1.5V
Dimensions4.3" x 2" x 1" (110 mm x 50 mm x 25 mm)
Weight3.2 oz (90 g)
Protection ClassIP 52 (proof against dust and dripping water)
StandardsDIN, ISO, ASTM, BS
Warranty1 Year
Calibration CertificateIncluded

line
reddot Downloads for the 3000EZ Series Coating Thickness Gauge
line

newsPDF Datasheet Click Here To Download

manualPDF Instruction Manual Click here to download
