    Product Description
    Manual Velocity Adjustment or Select Material from 8 Presets
    Resolution: .001" (0.01 mm)
    Includes NIST-Traceable Calibration Certificate, CE-Certified
    5-Year Warranty, Made in USA
    Datalogging: NO

    Total Measuring Range (depends on material and transducer/probe type)
    0.025 - 36.000 inches
    0.63 - 914.4 mm    		Measuring Range on Steel (with standard T-102-2000 probe)
    0.040 - 8.00 inches
    0.60 - 199.9 mm

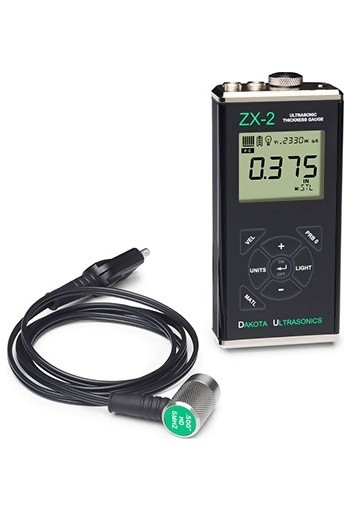

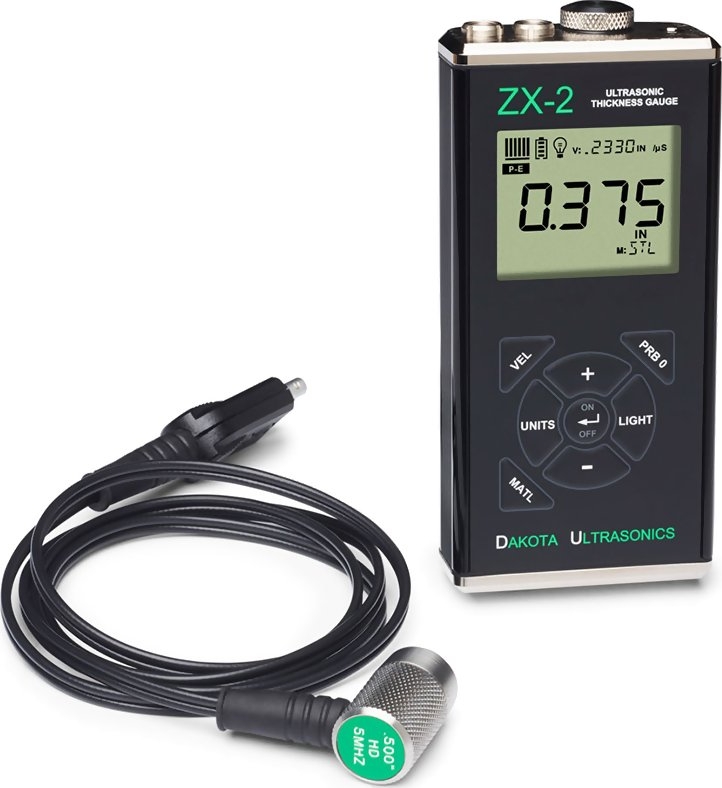

    The Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 / Z-301-0003 allows the operator to select from 8 preset materials as well as program 2 custom material velocities allowing the user to tune the calibration to be optimized for a specific type of material. The programmed velocity can be locked to prevent accidental adjustment. The preset materials are as follows:

    1. Steel 4340 .2330 n/μs / 5918 m/sec
    2. Stainless 303 .2230 / 5664
    3. Aluminum 2024 .2510 / 6375
    4. Cast Iron .1800 / 4572
    5. Plexiglass .1060 / 2692
    1. PVC .0940 / 2388
    2. Polystyrene .0920 / 2337
    3. Polyurethane .0700 / 1778
    4. Custom
    5. Custom

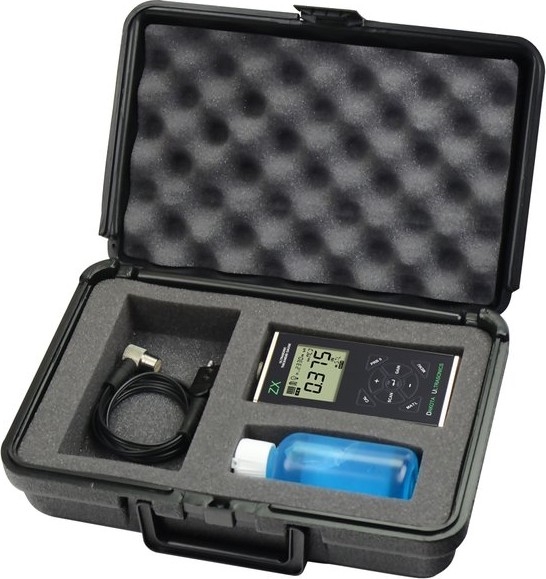

    Kit Contents

    • Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 / Z-301-0003
    • Probe T-102-2000
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST Traceable Calibration Certificate
    • Carrying case
    • Instruction Manual
    Click image to enlarge

    Features

    • Resolution of 0.001 inch (0.01 mm)
    • The Transducer (probe) is waterproof and can be submerged in shallow water
    • Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
    • Switch-selected units for inches or mm
    • The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
      to provide trouble-free operation under the toughest field conditions
    • For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
    • High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
    • LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
    • Acoustic Velocity (calibration) is manually adjusted via the keypad
    • 5 Year Warranty, CE-Certified and Made in USA
    • Operates on two (2) AA Batteries - 45 hours continuous operation
    • Selectable Backlight ON/OFF/AUTO
    • Includes NIST Traceable Calibration Certificate

    Specifications

    Total Measuring Range (Steel)0.025 - 36.000 inches
    0.63 - 914.4 mm
    (depends on material and transducer/probe type)
    Measuring Range (Steel)0.040-8.000 inches
    1.00-199.9 mm
    (with standard transducer T-102-2000)
    Resolution0.004 inch (0.1 mm)
    Measuring ModePulse-Echo (P-E)
    Velocity Range0.0120 to .7300 in/μs (305 to 18,542 m/sec)
    Probe (Standard)1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300
    Probes (optional)1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
    Probe WearfacePEEK (Polyethylethylkytone)
    Cable1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
    LCD DisplayMulti-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
    Display BacklightBacklight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
    Display Update Rate10 Hz (10 updates/sec)
    Temp. LimitsAmbient: -30 to 75° C (-22 to 167° F)
    Material: -20 to 100° C (0 to 200° F)
    High temperature probes available
    Battery Type2x AA batteries (rechargeable batteries can be used)
    Battery Life45 hours continuous use
    Weight308 grams (11 ounces)
    Dimensions63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
    AccessoriesProbe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
    HousingExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
    Housing RatingIP65
    CertificationsNIST Traceable and MIL-STD-45662A
    KeypadSealed membrane that is resistant to both water and petroleum products
    Seven or eight tactile-feedback keys
    Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
    WarrantyGauge: 5 Years
    Probes: 90 Days

    Measuring Limits

    Minimum Radius for Convex Surfaces0.350" (8.89 mm)
    Minimum Radius for Concave Surfaces3" (76.2 mm)
    Minimum Headroom1" (25.0 mm)
    Minimum Sample Diameter0.150" (3.8 mm)
    Minimum Substrate Thickness - Fna
    Minimum Substrate Thickness - NFena

    Related Products

    TI-25-UW-50
    50 Foot Underwater Probe / Cable Assembly

    • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors
    related
    Click image for more info

    V-Block
    Ultrasonic Transducer Holder

    related
    Click image for more info

    Downloads

    Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 / Z-301-0003 - Instruction Manual (NEW MODEL)
    Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 / Z-301-0003 - Data Sheet
    Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 - Instruction Manual (OLD MODEL)
    Dakota Ultrasonics Dual Element Corrosion Thickness Gauges - List

    F.A.Q.

    Do Dakota Ultrasonics Thickness Gauges require any training for use?

     No. Dakota Ultrasonics Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

    Are Dakota Ultrasonics Thickness Gauges calibrated at the factory?

     Yes. Dakota Ultrasonics Thickness Gauges arrive fully calibrated and ready to measure.

    Do Dakota Ultrasonics Thickness Gauges include Certificate of Calibration?

     Yes. Dakota Ultrasonic Thickness Gauges includes NIST-Traceable Calibration Certificate, CE-Certified

    Can I measure the thickness of non-metallic materials like plastic and rubber with Dakota Ultrasonics Thickness Gauges?

     Yes. Dakota Ultrasonics Thickness Gauges features several preprogrammed sound velocities for common materials.

    Can Dakota Ultrasonics Thickness Gauges measure cast/ductile iron or cast aluminum?

     Yes. Dakota Ultrasonics Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
