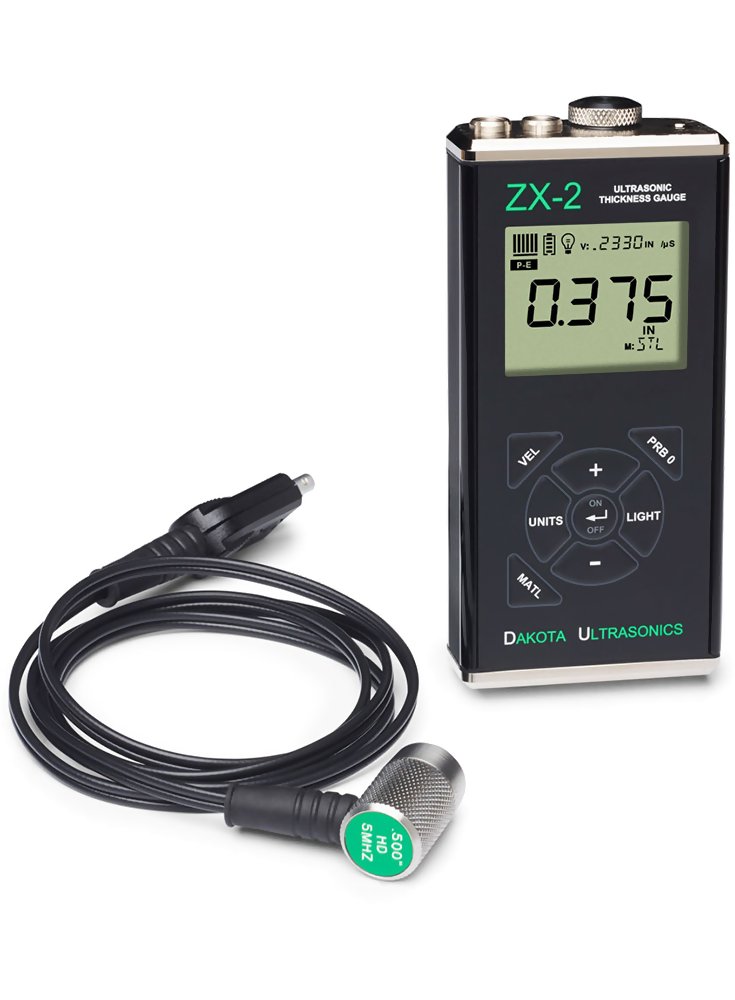

Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 with T-102-2000

See More Ultrasonic Thickness Gauges

Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 with T-102-2000

See More Ultrasonic Thickness Gauges
Price:
$1,375.00
    warrenty

    Product Description
    Manual Velocity Adjustment or Select Material from 8 Presets
    Resolution: .001" (0.01 mm)
    Includes NIST-Traceable Calibration Certificate, CE-Certified
    5-Year Warranty, Made in USA
    Datalogging: NO

    Total Measuring Range (depends on material and transducer/probe type)
    0.025 - 36.000 inches
    0.63 - 914.4 mm
    Measuring Range on Steel (with standard T-102-2000 probe)
    0.040 - 8.00 inches
    0.60 - 199.9 mm

    The Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 allows the operator to select from 8 preset materials as well as program 2 custom material velocities allowing the user to tune the calibration to be optimized for a specific type of material. The programmed velocity can be locked to prevent accidental adjustment. The preset materials are as follows:

    1. Steel 4340 .2330 n/μs / 5918 m/sec
    2. Stainless 303 .2230 / 5664
    3. Aluminum 2024 .2510 / 6375
    4. Cast Iron .1800 / 4572
    5. Plexiglass .1060 / 2692
    1. PVC .0940 / 2388
    2. Polystyrene .0920 / 2337
    3. Polyurethane .0700 / 1778
    4. Custom
    5. Custom


    line

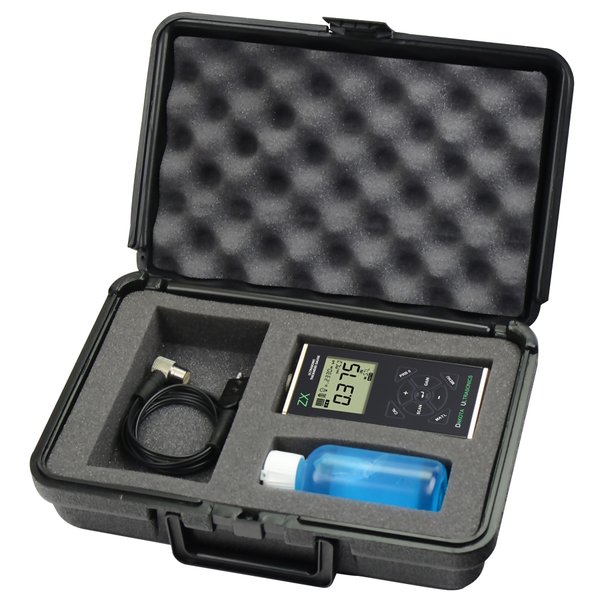

    Kit Contents
    line

    • Dakota Ultrasonics ZX-2 Ultrasonic Wall Thickness Gauge Z-301-0001 With T-102-2000
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST Traceable Calibration Certificate
    • Carrying case
    • Instruction Manual


    line
    Features
    line

    • Resolution of 0.001 inch (0.01 mm)
    • The Transducer (probe) is waterproof and can be submerged in shallow water
    • Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
    • Switch-selected units for inches or mm
    • The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
      to provide trouble-free operation under the toughest field conditions
    • For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
    • High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
    • LCD shows Thickness Value, Velocity Setting, Stability Indicator, Battery Indicator and units
    • Acoustic Velocity (calibration) is manually adjusted via the keypad
    • 5 Year Warranty, CE-Certified and Made in USA
    • Operates on two (2) AA Batteries - 45 hours continuous operation
    • Selectable Backlight ON/OFF/AUTO
    • Includes NIST Traceable Calibration Certificate


    line
    Specifications
    line

    Total Measuring Range
    (Steel)
    0.025 - 36.000 inches
    0.63 - 914.4 mm
    (depends on material and transducer/probe type)
    Measuring Range
    (Steel)
    0.040-8.000 inches
    1.00-199.9 mm
    (with standard transducer T-102-2000)
    Resolution0.004 inch (0.1 mm)
    Measuring ModePulse-Echo (P-E)
    Velocity Range0.0120 to .7300 in/μs (305 to 18,542 m/sec)
    Probe (Standard)1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300
    Probes (optional)1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
    Probe WearfacePEEK (Polyethylethylkytone)
    Cable1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
    LCD DisplayMulti-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
    Display BacklightBacklight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
    Display Update Rate10 Hz (10 updates/sec)
    Temp. LimitsAmbient: -30 to 75° C (-22 to 167° F)
    Material: -20 to 100° C (0 to 200° F)
    High temperature probes available
    Battery Type2x AA batteries (rechargeable batteries can be used)
    Battery Life45 hours continuous use
    Weight308 grams (11 ounces)
    Dimensions63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
    AccessoriesProbe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
    HousingExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
    Housing RatingIP65
    CertificationsNIST Traceable and MIL-STD-45662A
    KeypadSealed membrane that is resistant to both water and petroleum products
    Seven or eight tactile-feedback keys
    Pulse Repetition Frequency (PRF)200 Hz (200 pulses/sec)
    WarrantyGauge: 5 Years
    Probes: 90 Days


    line
    Measuring Limits
    line

    Minimum Radius for Convex Surfaces0.350" (8.89 mm)
    Minimum Radius for Concave Surfaces3" (76.2 mm)
    Minimum Headroom1" (25.0 mm)
    Minimum Sample Diameter0.150" (3.8 mm)
    Minimum Substrate Thickness - Fna
    Minimum Substrate Thickness - NFena
