Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display

See More Ultrasonic Thickness Gauges

Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display

See More Ultrasonic Thickness Gauges
Price:
$2,825.00
    warrenty

    Product Description

    Range: 0.025 - 19.999 inches - 0.60 - 254.0 mm


    Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display with Enhanced graphic scope Displays A Scan & B Scan for a cross section view


    Resolution: .001" (0.01 mm)



    The Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures.

    The Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. It is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.


    line
    Kit Contents
    line

    • Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display With T-102-2700 Probe1
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST Traceable Calibration Certificate
    • Data Transfer Software
    • Serial Output
    • Carrying case
    • Instruction Manual


    line
    Features
    line

    • The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
    • The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.
    • The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.
    • Built in hardware AGC gain control for through paint measurements in multi mode operation.
    • The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
    • CE Certified
    • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
    • Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.
    • MVX also comes complete with our Windows® PC software for transferring data to and from a PC.
    • Includes Flaw Inspection - Prove Up Mode, (special probe required)
    • The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the tesst material, and display the minimum measurement scanned.
    • Includes NIST-Traceable Calibration Certificate


    lineSpecificationsline

    Range in Steel*Pulse-Echo Mode: Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999inches)
    Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm (0.1 - 4.0 inches).
    Range will vary +/- depending on the thickness of coating.
    Resolution.001 inches (0.01mm)
    Velocity Range.0492 to .3936 in./ms
    1250 to 9999 meters/sec
    UnitsEnglish & Metric
    Measurement Modes- Pulse-Echo (flaws, pits)
    - Echo-Echo (thru-paint)
    Transducer TypesDual Element (1 to 10 MHz).
    Memory16 megabit non-volatile ram
    Memory capacity12,000 pages with 1 reading and waveform per page
    Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
    Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
    Auto Power offif idle 5 min
    Display1/8 in. VGA grayscale display 62 x 45.7mm
    KeyboardMembrane switch with twelve tactile keys
    CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
    Operating Temperature-14° to 140°F (-10° to 60°C)
    Weigth, net383 grams
    Dimensions63.5 W x 165 H x 31.5 D mm
    Warranty2 year limited
    CertificationCE Approved, Factory calibration traceable to national standards

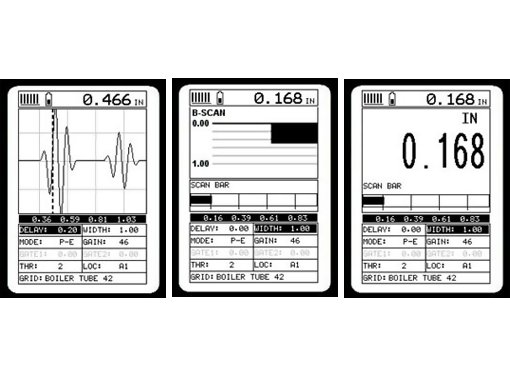

    lineDisplay Viewsline

    A-Scan Scan Mode

    • The A-Scan rectified mode is the preferred display view for flaw and pit detection applications and measuring through paint and coatings in the echo-echo mode.
    High Speed Scan Mode

    line

    B-Scan Mode

    • The B-Scan view displays a time-based cross section of the test material. It is commonly used to display the profile of the blind or underside of a pipe or tank.
    B-Scan Mode

    line

    Large Digits

    • The Large Digits view provides a basic digital thickness gauge look and feel. The large display makes it easy for the operator to monitor the thickness readings.
    High Speed Scan Mode
