DeFelsko UTGP1-G PosiTector UTG P1 Standard Ultrasonic Thickness Gage With PRBUTGP-C Precision Cabled Probe Type 15 MHz Single Element Delay Line, Range: 0.008" to 0.475"

See More DeFelsko PosiTector UTG

DeFelsko UTGP1-G PosiTector UTG P1 Standard Ultrasonic Thickness Gage With PRBUTGP-C Precision Cabled Probe Type 15 MHz Single Element Delay Line, Range: 0.008" to 0.475"

See More DeFelsko PosiTector UTG
Price:
$1,440.00
    warrenty

    Product Description

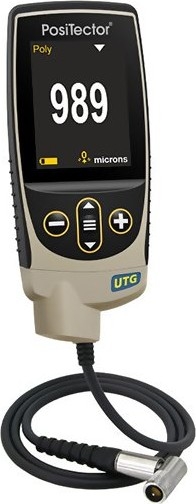

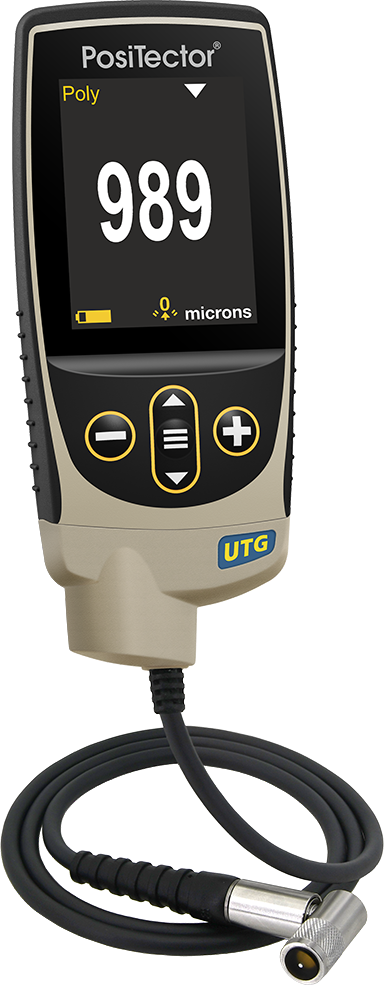

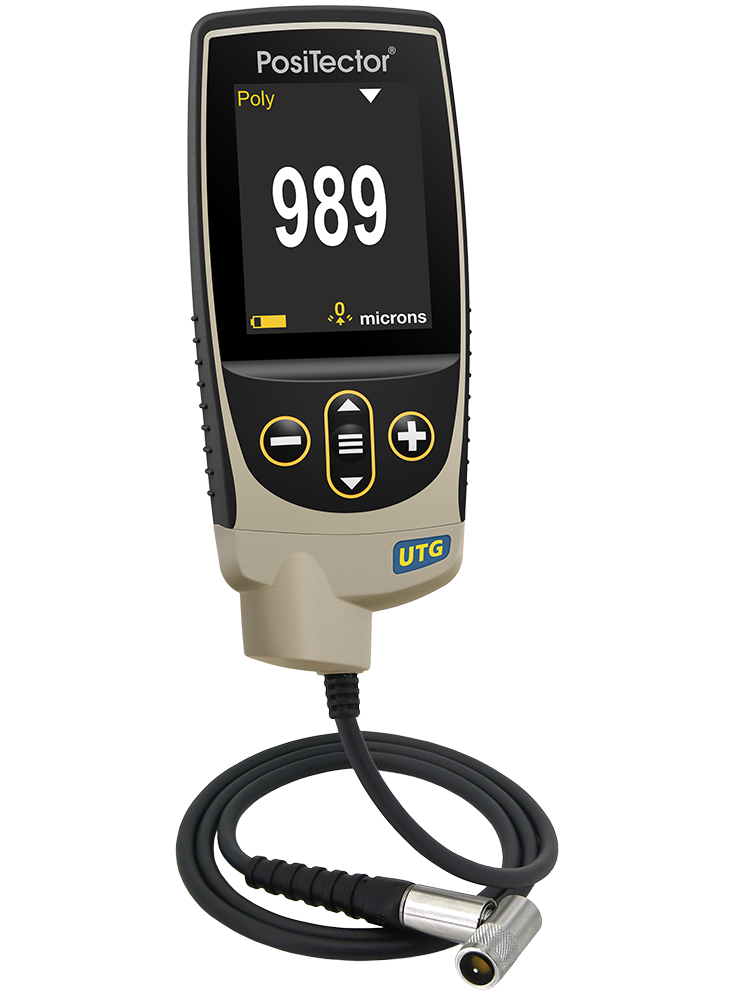

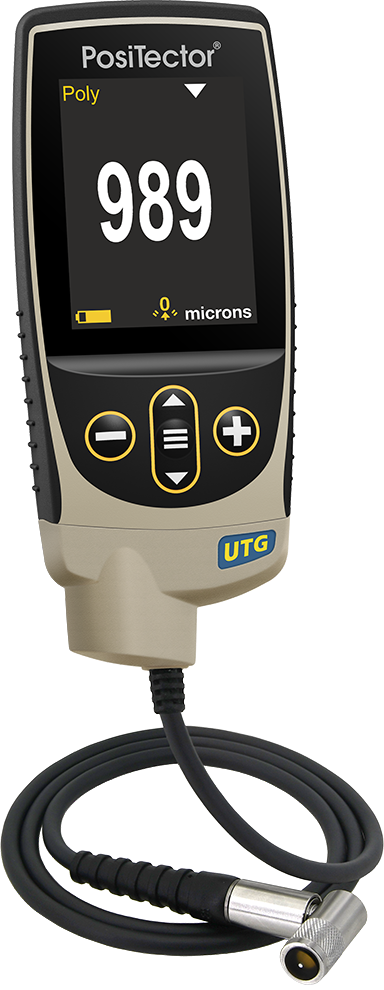

    DeFelsko UTGP1-G PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe, 15 MHz Single Element Delay Line
    Steel Measuring Range: 0.008" to 0.475" - 0.2 to 12.0 mm | Plastic Measuring Range: 0.005" to 0.175" - 0.125 to 4.500 mm

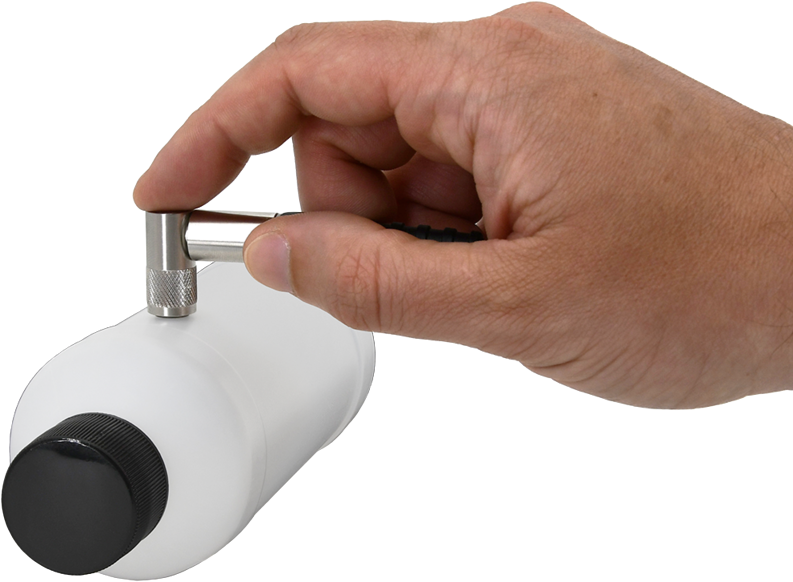

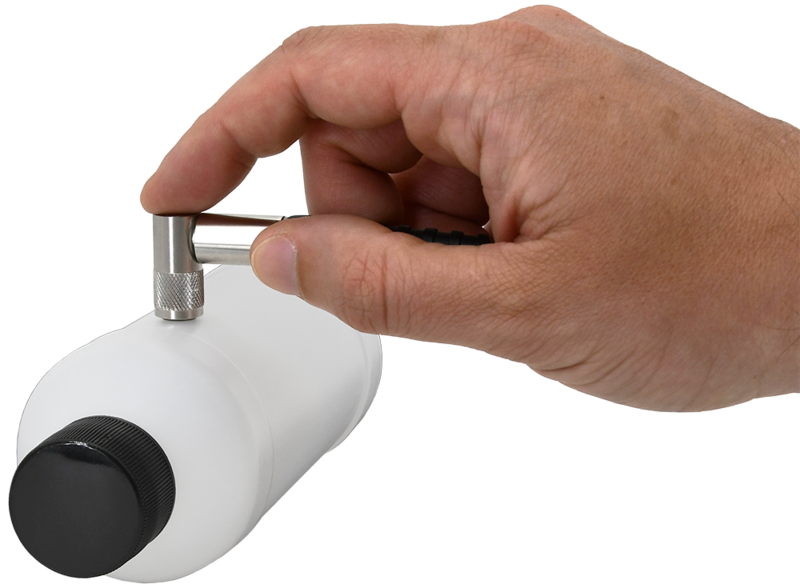

    The DeFelsko UTGP1-G PosiTector UTG P1 Standard Ultrasonic Thickness Gage with Precision Probe measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.


    line

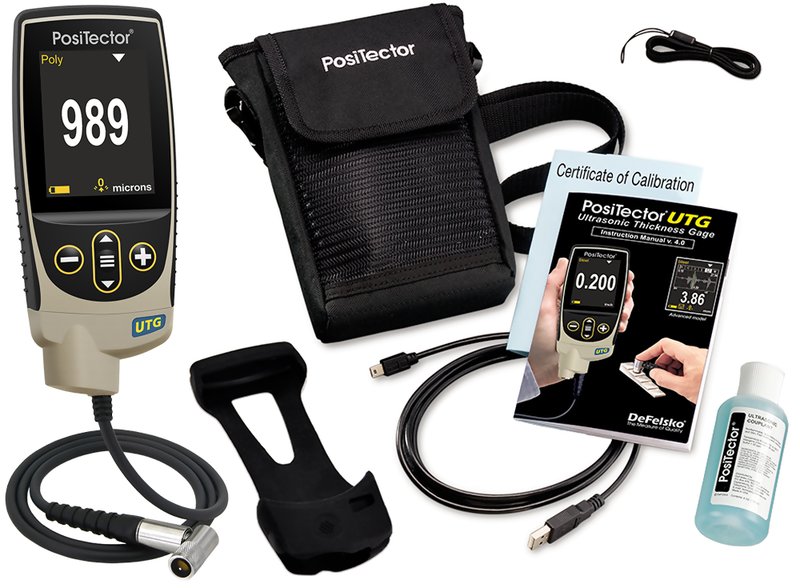

    Kit Contents
    line

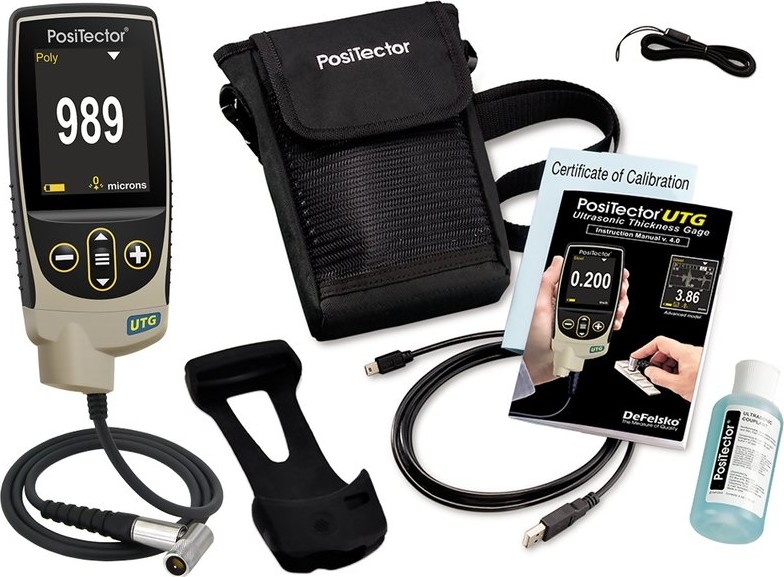

    The DeFelsko PosiTector UTG P1 Standard Ultrasonic Thickness Gage Kit includes everything needed for testing::

    • PosiTector Standard Gage Body BDYSTD-G

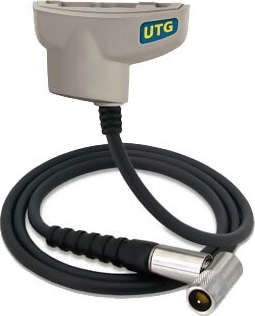

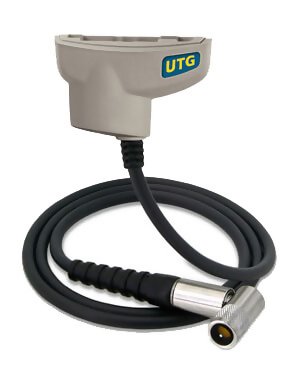

    • PosiTector UTG P Probe PRBUTGP
    • Couplant (ultrasonic gel)
    • Precision plastic shims
    • Protective rubber holster with belt clip
    • Wrist strap
    • 3 AAA alkaline batteries
    • Protective lens shield
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration traceable to NIST
    • Nylon carrying case with shoulder strap and instructions
    • Two (2) year warranty


    line
    Features
    line

    Simple

    • Pre-programmed velocities—simply select from a list of common materials or enter your own with ease
    • Smart Couple™ mode eliminates unintentional decoupling—ensure continuous measurements while measuring on scaled or pitted surfaces—ideal for analyzing large areas using multiple passes
    • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • NEW On-gage help explains menu items at the touch of a button
    • RESET feature instantly restores factory settings

    Durable

    • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
    • NEW Ergonomic design with durable rubberized grip
    • Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only)
    • Shock-absorbing, protective rubber holster for added impact resistance
    • Two year warranty on gage body AND probe

    Accurate

    • Precision ultrasonic transducers provide fast, accurate readings
    • Certificate of Calibration (Long Form) showing traceability to NIST or PTB included
    • Built-in temperature compensation ensures measurement accuracy
    • Conforms to national and international standards including ASTM E797

    Versatile

    • PosiTector body accepts all PosiTector probes easily converting from an ultrasonic wall thickness gage to a coating thickness gage, surface profile gage, dew point meter, soluble salt tester, or hardness tester
    • NEW Auto rotating display with Flip Lock
    • Single or two point adjustment
    • Inch/mm switchable
    • Selectable display languages
    • Extended cables available (up to 20 m/60 ft) for underwater or remote measuring

    Powerful

    • Min Scan mode—take continuous readings and record min/max thicknesses—ideal for quick inspection over a large area
    • Statistics Mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
    • NEW Screen Capture—save 100 screen images for record keeping and review
    • NEW Instant-on feature quickly powers up the gage if recently powered down
    • NEW Up to 30% longer battery life
    • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
    • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
    • Includes PosiSoft suite of software for reviewing and reporting data
    • Every stored measurement is date and time stamped


    line
    Standard Models Features
    line

    Includes ALL features as shown above plus:
    • NEW Storage of 1,000 readings per probe-stored readings can be viewed or downloaded


    line
    PosiSoft Suite of Software
    line

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More



    FAQ's - Frequently Asked Questions

    Click to View DeFelsko PosiTector UTGFrequently Asked Questions


    lineDownloadsline

    DeFelsko UTG PosiTector Ultrasonic Thickness Gage - Instruction Manual
    DeFelsko UTG PosiTector Ultrasonic Thickness Gage - Literature
    DeFelsko UTG PosiTector Ultrasonic Thickness Gage - Order Guide
    DeFelsko PosiTector UTG Ultrasonic Thickness Gage- Online Instruction Manual with Videos
    DeFelsko Accessories for Inspection Instruments - Online Catalog
