    Product Description
    Measure the change in length of a fastener when a load is applied to the fastener

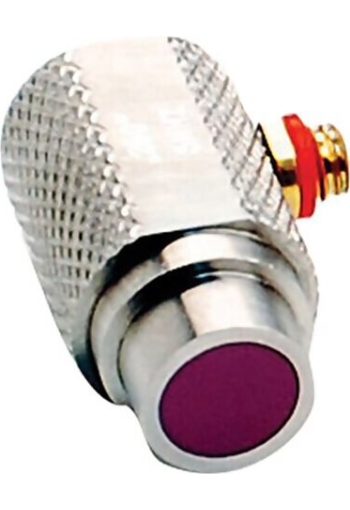

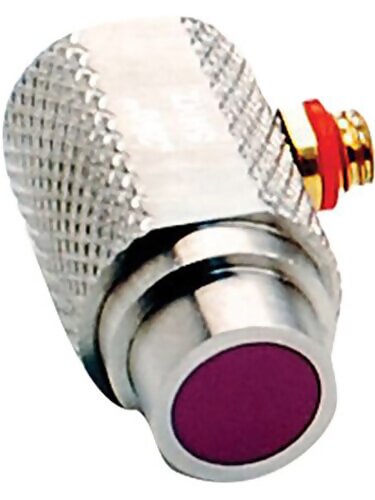

    Dakota offer a full range of Bolt Tension Monitor Transducers to ultrasonically measure the actual elongation produced by tightening a threaded fastener.

    The Dakota Bolt Tension Monitors measure the change in length of a fastener when a load is applied to the fastener.

    Within the elastic limit of the fastener, the change of length is proportional to the load applied, and therefore by measuring the change of length and knowing the physical properties of the fastener, the load on the fastener can be calculated

    Specifications

    Part NumberProbe DiameterSingle Element TypeProbe CharacteristicDampingConnector TypeSuitable for
    MicrodotTopSideBT1-DLBT2-DL
    2.25MHz Contact Transducer
    T-5023-18551/4"ContactFinger TipR
    T-4023-18551/4"ContactFinger TipR
    T-702-14051/4"MagneticStandardS
    T-703-14053/8”MagneticStandardS
    T-5043-18551/2"ContactFinger TipR
    T-4043-18551/2"ContactFinger TipR
    T-704-14051/2" MagneticStandardS
    T-706-14053/4" MagneticStandardS
    5.00MHz Contact Transducer
    T-5903-28751/8” ContactFinger Tip SlimHD
    T-4903-28751/8” ContactFinger Tip SlimHD
    T-700-24051/8” MagneticStandardS
    T-5023-28551/4" ContactFinger TipR
    T-4023-28551/4" ContactFinger TipR
    T-702-24051/4" MagneticStandardS
    T-703-24053/8” MagneticStandardS
    T-5043-28551/2" ContactFinger TipR
    T-4043-28551/2" ContactFinger TipR
    T-704-24051/2" MagneticStandardS
    T-706-24053/4" MagneticStandardS
    10.00MHz Contact Transducer
    T-5903-48751/8” ContactFinger Tip SlimHD
    T-4903-48751/8” ContactFinger Tip SlimHD
    T-700-44051/8” MagneticStandardS
    T-5023-48551/4" ContactFinger TipR
    T-4023-48551/4" ContactFinger TipR
    T-702-44051/4" MagneticStandardS

    R - Resolution Damped Transducer
    S - Standard Undamped Transducer
    HD - Highly Damped Transducer
