This product has been discontinued

Product Description
This product has been replaced by the Tramex RMK

Non-Destructive, deep penetration moisture testing
7” Pin-Probe for deep penetration.
Instant concrete moisture measurement
Plug-in Hygro-i ® Probe for Relative Humidity, Temperature, Dew-Point and Mixing Ratio.

The Tramex RMK5.1 Roof Master Kit allows for point-of-contact, non-destructive checking of moisture conditions in roofing and waterproofing systems up to approximately 4 inches in depth, as well as non-destructive measurement of moisture conditions in concrete decks, wood decks and ambient relative humidity & dew-point conditions. The Tramex RMK5.1 Roof Master Kit features the handheld Tramex RWS Roof and Wall Scanner non-invasive impedance scanner and the Tramex CMEX II electronic moisture meter and Hygro-i ® relative humidity probe. This kit comes in a protective, heavy-duty carrying case with die-cut foam lining.

line
Photo Gallery
line



line

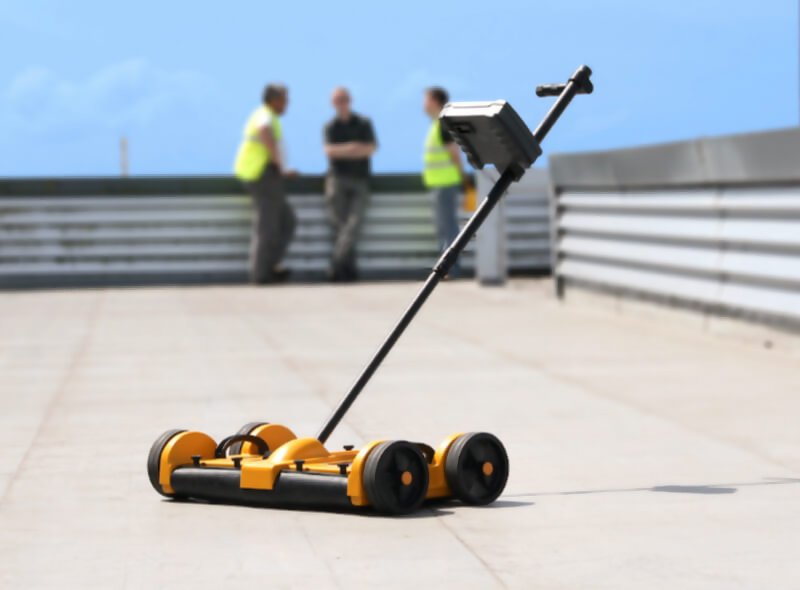

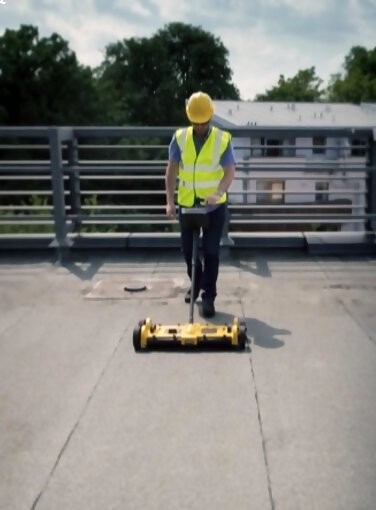

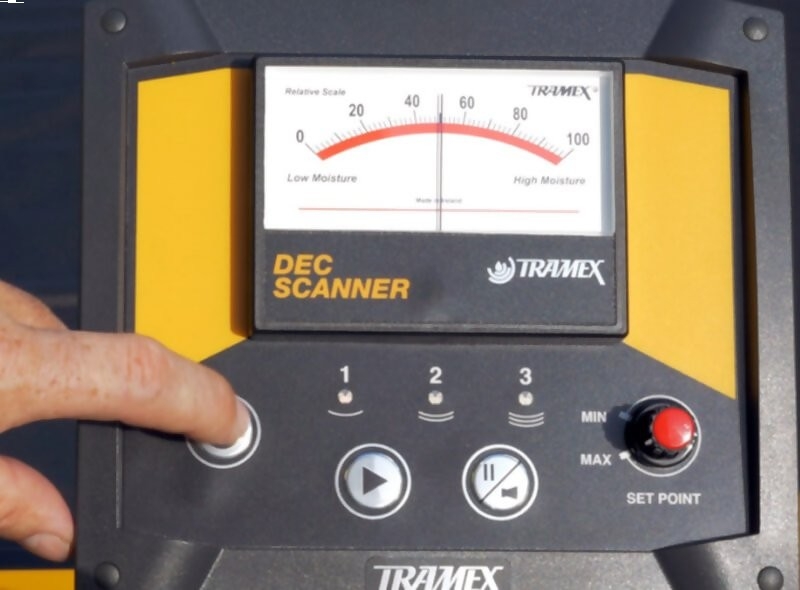

Features of the Dec Scanner
line

  • Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.
  • Ergonomic, easy-reach and easy to operate control panel.
  • Leak tracing, problem sourcing and an instantaneous and clear indication of roof condition.
  • Fast and accurate readings over large roof areas in a short time frame.
  • Faster and more user friendly than nuclear meters.

line

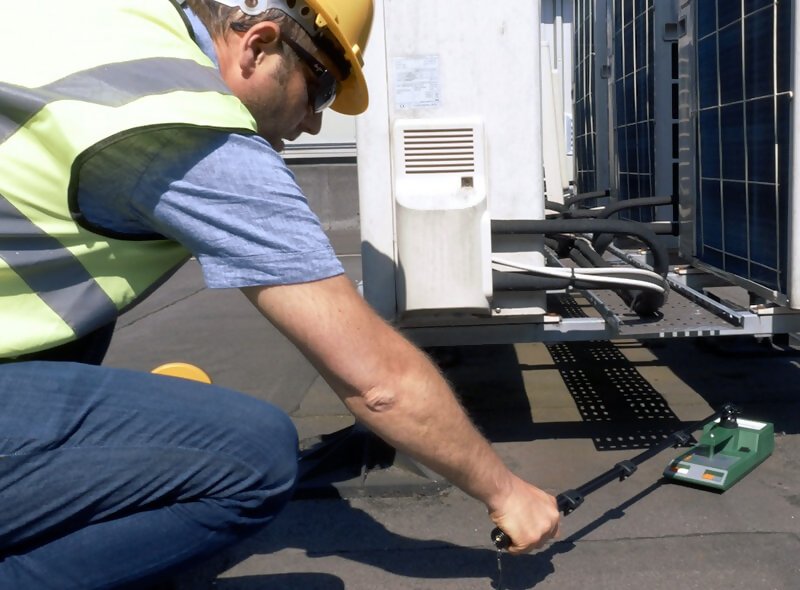

Features of the RWS
line

  • For non-destructive moisture evaluation of roofs, EIFS, foam insulation systems & other building envelope applications.
  • Detects, locates and traces leaks in concrete flooring.
  • To evaluate the extent of the moisture problem and help trace and pin-point its source.
  • Multi-mode functions allowing for depth penetration and sensitivity selection.
  • Fast and easy to operate giving instant clear readings.
  • “Hold” function facilitates ease of recording readings.
  • Lightweight, handheld and battery operated.
  • Inexpensive to purchase and operate compared to other non-destructive testing methods.

line

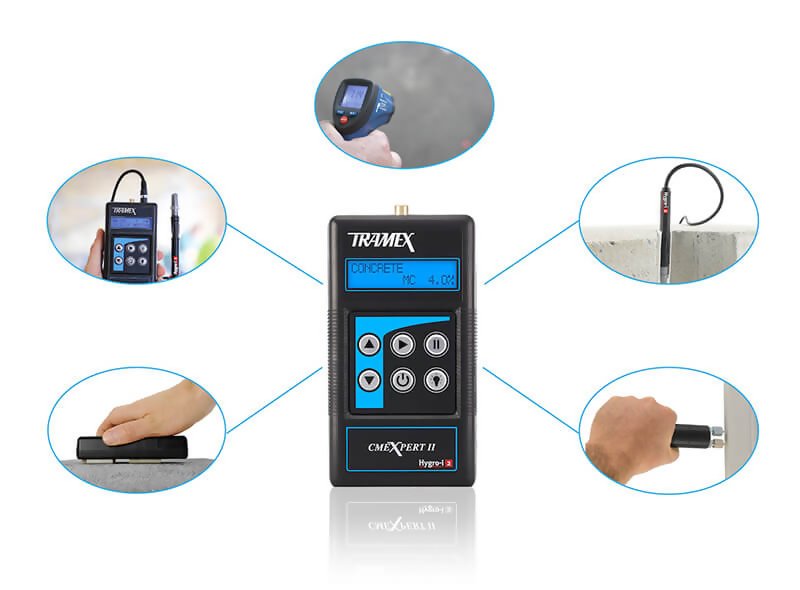

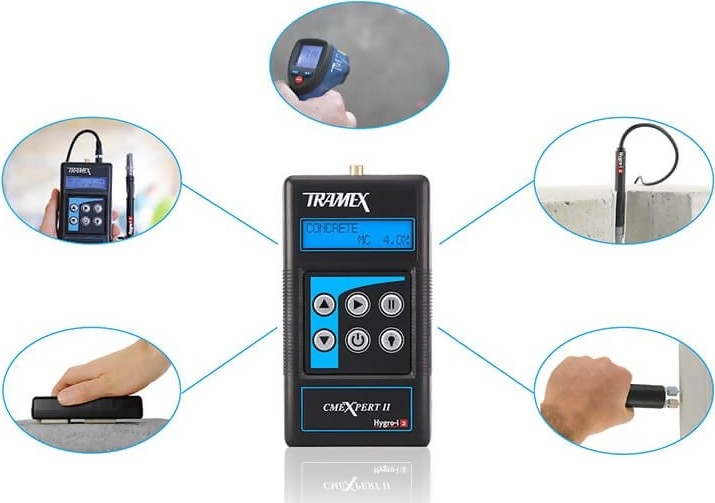

Features of the CMEX II
line

  • Measures up to 6.9% Moisture Content in Concrete.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
  • Attaches to a relative humidity Hygro-i ® probe for in-situ testing of concrete and ambient conditions.
  • 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment.

line

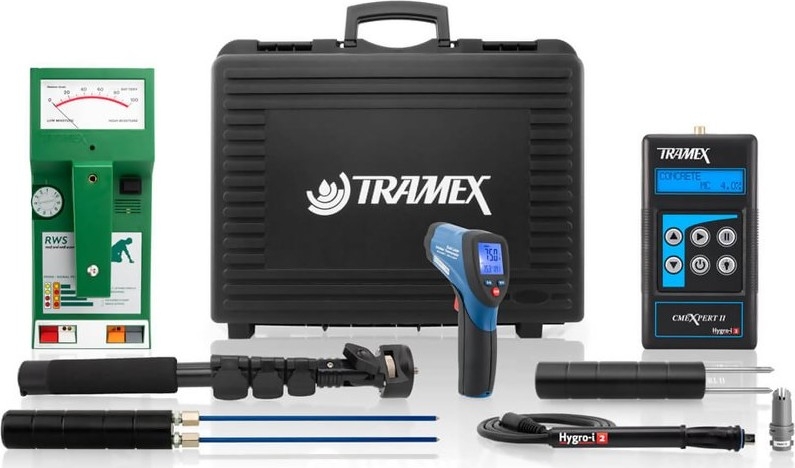

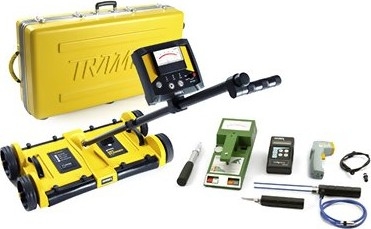

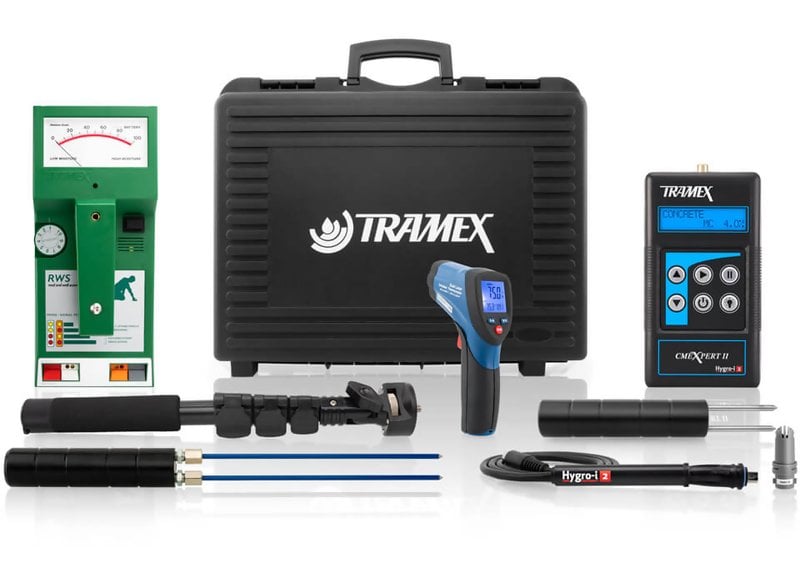

Kit Contents
line

  • Dec Scanner
  • RWS - Roof and Wall Scanner + telescopic handle (for use on roofs).
  • CMEX II - concrete moisture meter.
  • 1 x Hygro-i ® probe.
  • Hand held electrode with 7" insulated pins.
  • Hole Punch.
  • Infrared thermometer

line
Specifications
line

Size 19.2" x 14.9" x 5.7" (487mm x 380mm x 145mm)
Weight 9.9lbs (4.51kg)
Power 3 x 9 volt PP3
Battery Included
Measuring range - RWS
Depth of penetration 4" (100mm)
Reference scale (NDT*) 0 to 100
Measuring range - CMEX II
Depth of penetration in concrete (NDT*) approx. ¾" (20 mm)
Moisture content for Concrete (NDT*) 0 to 6.9 %
Comparative for Gypsum floor screed (NDT*) 0 to 10
Reference scale (NDT*) 0 to 100
Relative Humidity (RH probe) 0 to 99%
Moisture content for wood (with pin probes) 7 to 40 %
Humidity accuracy 0% to 99%RH +/- 2% @ 25°C / 77°F

* NDT - non-destructive test
