Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm The TI-007DL Data Logging Precision Ultrasonic Thickness Gauge is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. The TI-007DL Data Logging Precision Ultrasonic Thickness Gauge is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments. TI-007DL Data Logging Precision Ultrasonic Thickness Gauges incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost. The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.
Photo Gallery
Features
- Resolution of 0.0001 inch (0.001 mm)
- Selectable units of inch or mm
- Memory for 1000 data points in up to 10 batches
- RS-232C Serial output for downloading stored data to a printer or computer
- TI-007DL-GT model available with Graphite Tip for measuring plastics
- Windows compatible data transfer program supplied at no additional cost
- Large, backlit LCD display retains last reading
- CE Certified
- Includes NIST Calibration Certificate
Typical Applications
Measuring Limits
Specifications

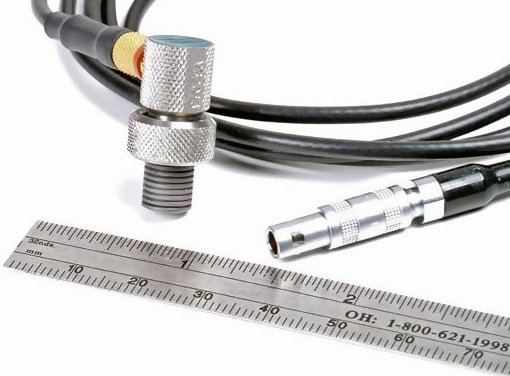

| Range in Steel | 0.0060-1.0000" (0.15-25.40 mm) | | Resolution | .0001" (0.001 mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Velocity Range | 6,500-33,000 ft./sec (2000-10,000 m/sec.) | | Transducer | Single element with delay tip. 10 to 22 MHz frequency range. | | Probe Wearface | PEEK (Polyethlethylketone) | | Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m) | | Serial Output | RS-232C (8, N, 1, user-set baud rate) | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) | | Battery Type | Two AA batteries | | Battery Life | 200 hours | | Weight | 7 ounces (196 g) | | Size | 2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) | | Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probes: 90 Days |

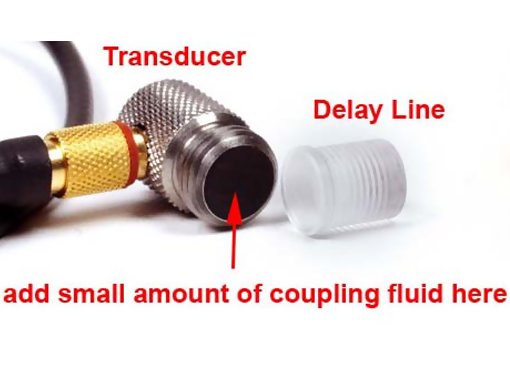

Delay Line Tips for TI-007
| P/N | Description | Standard / Optional | Image | | X-231-0000 | 1/4" x 3/8"
for all metals
(Short) | Standard | | | X-241-0000 | 1/4" x 1/2"
for all metals
(Long) | Standard | | | X-633-0000 | 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short) | Standard on "-GT" models | | | X-532-0000 | 3/16" x 3/8"
Conical Tip
for all metals
(Cone) | Optional | | | X-533-0000 | 3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone) | Optional | |
Complete Kit
The TI-007DL Data Logging Precision Ultrasonic Wall Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
Optional Accessories
CF12
Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- 12 oz Bottle
| |
