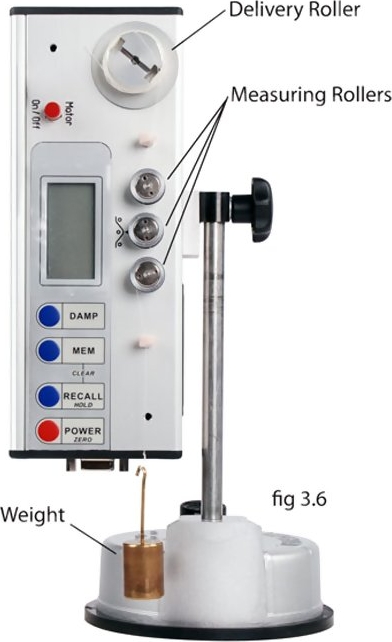

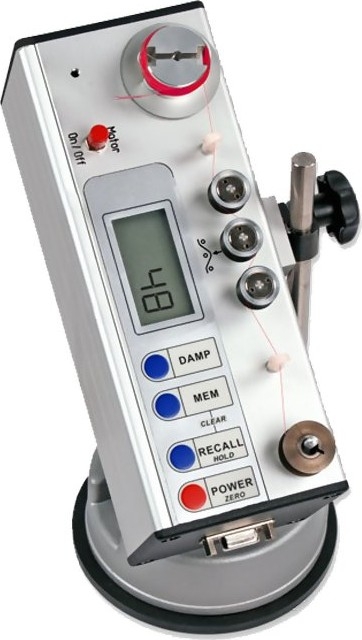

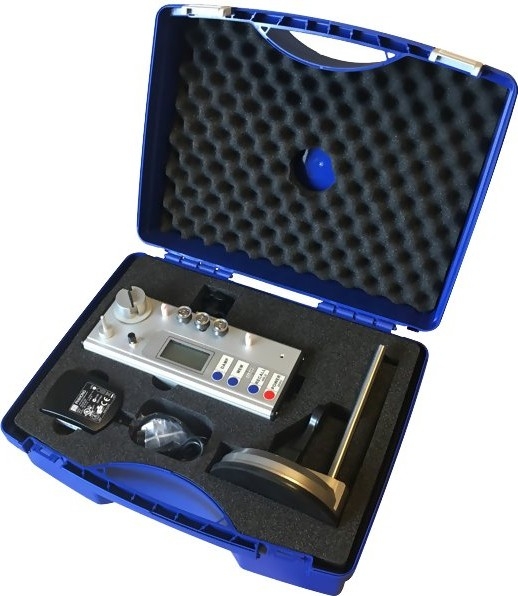

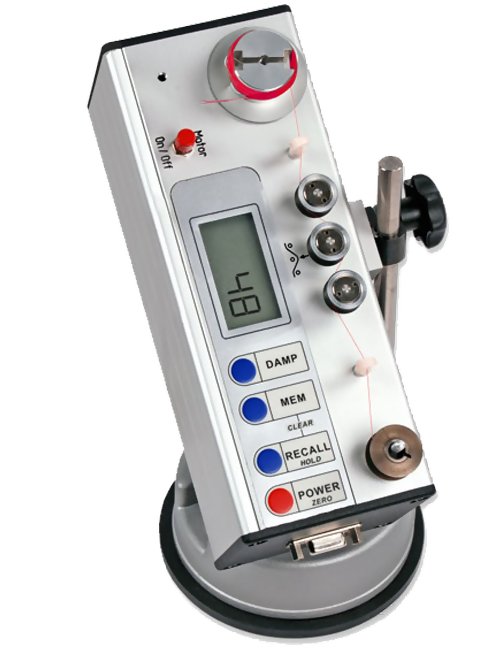

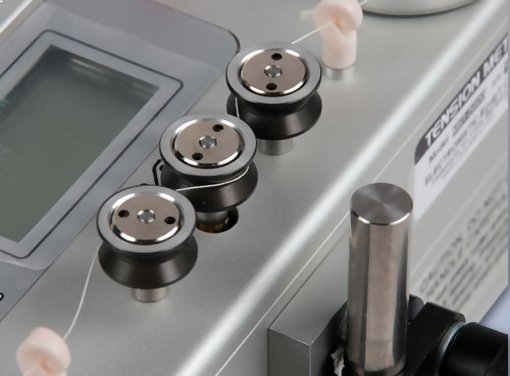

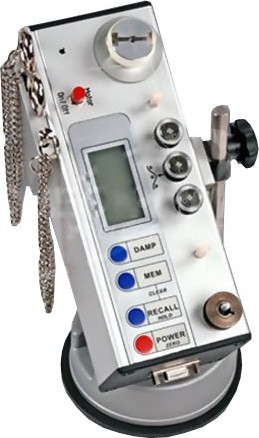

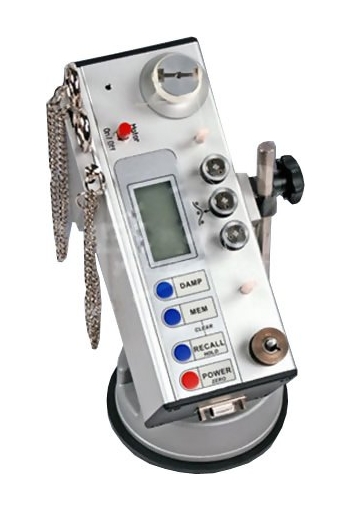

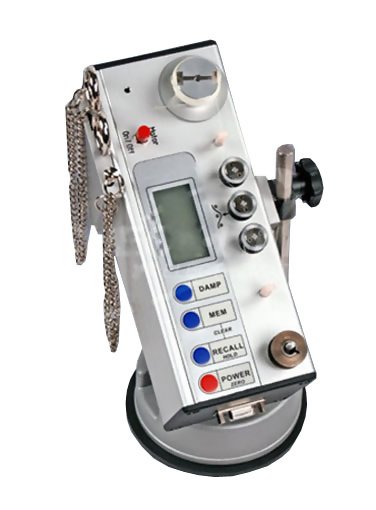

Yarn Tension Meter
For measuring and adjusting the tension of sewing machines to get best and highest quality stitched seams

3 Ranges

Yarn tension meter with motorized take-up fixture for measuring and adjusting the tension of sewing machines to get best and highest quality stitched seams. Therefore e. g. yarn breaks can be adjusted under constant conditions (speed of the thread).

To control the tension at sewing machines as well as the take-off tension of shuttles.

line

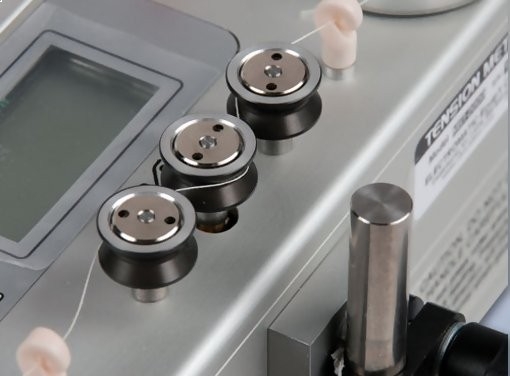

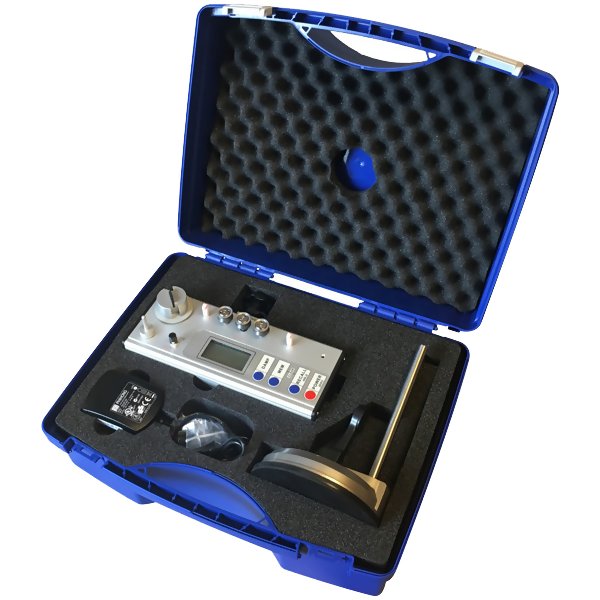

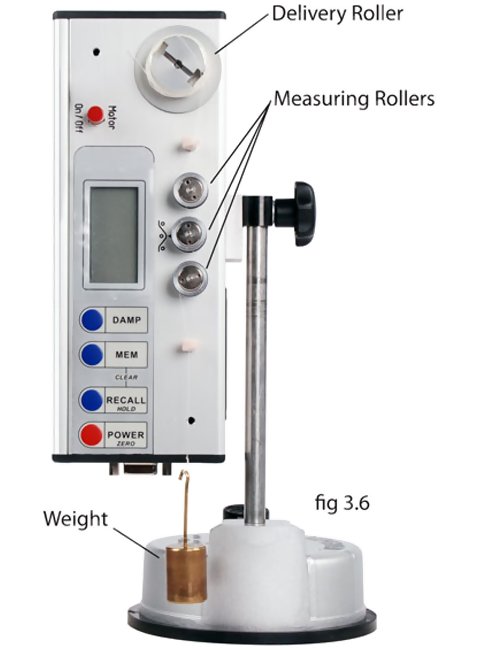

Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ ABQ ABQ ABQ

line
Features
line

  • Storage of last, average, MAX MIN, PEAK-MAX, PEAK-MIN values as well as statistical analysis (average value) during a user-selected period
  • Motorized take-up fixture to have constant speed of the thread 12 m/min
  • Suction-cup base for positioning the unit on the work plate when tension is measured at the sewing machine

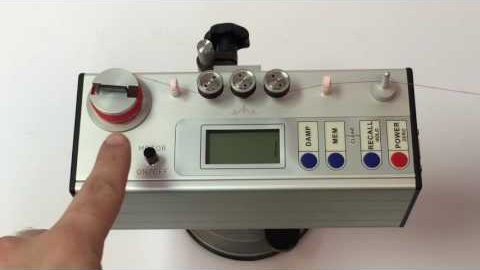

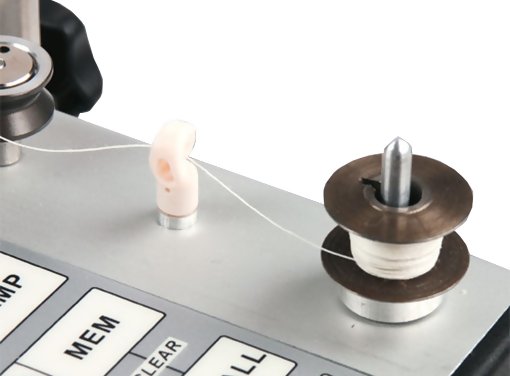

  • Special fixture to determine shuttle tension
  • RS-232 output for batch download or real-time data transfer to TensionInspect Software
  • TensionInspect Software plus RS-232 cable provided FREE

line
Specifications
line

Accuracy±0.5 % from measuring value ±1 digit or better
Overload20 % full scale, without accuracy guarantee
Overload protection100%
Measuring frequencyMax. 5 kHz
DampingMoving averaging
Display4 digit, 11 mm high
Display update time2 times/s
MemoryLast, average, MAX, MIN, PEAK-MAX, PEAK-MIN
Output signalAnalog: 0 - 2 V DC, linearized, conversion rate 30 Hz
Digital: RS 232 (9600, 8, N, 1)
Vacuum baseAdjustable height for measuring position above working plate 120 to 220 mm
Temperature range10 - 45 °C
Air humidity85 % RH, max.
Power supplyLI-Ion Battery or 12 V AC Adapter for 230 V AC, option 115 V AC
Housing MaterialsAluminium


line
Dimensions
line

dimensions

line
Tension Ranges
line

ModelRange
MST-5000 - 500 g
MST-10000 - 1000 g
MST-20000 - 2000 g


line
Downloads
line

MST Tension Meter With Motorized Take-Up - Data Sheet
