Tensitron ACM Mechanical Aircraft Cable Tension Meters

See More Aircraft Cable Tension Meters

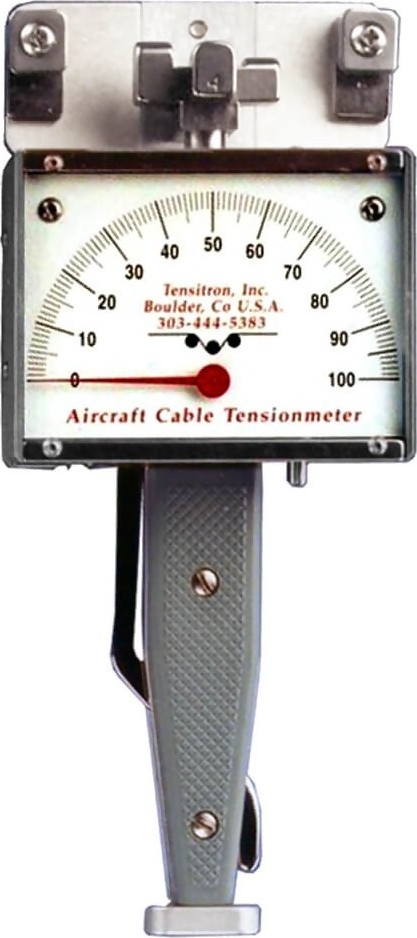

Tensitron ACM Mechanical Aircraft Cable Tension Meters

See More Aircraft Cable Tension Meters
Price:
$995.00
    warrenty

    Product Description

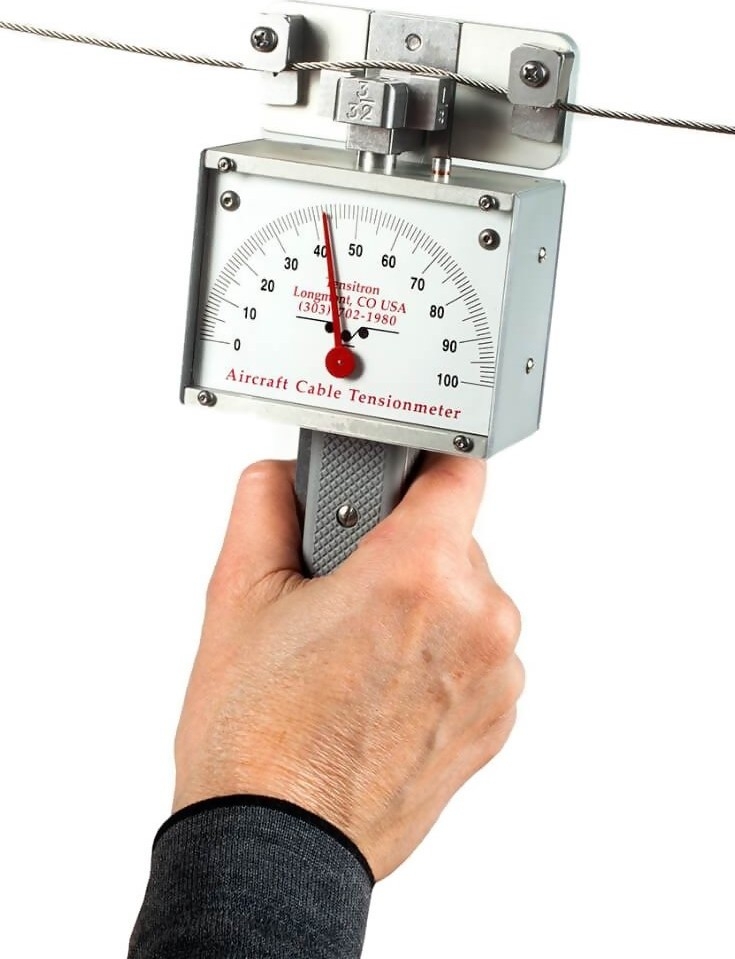

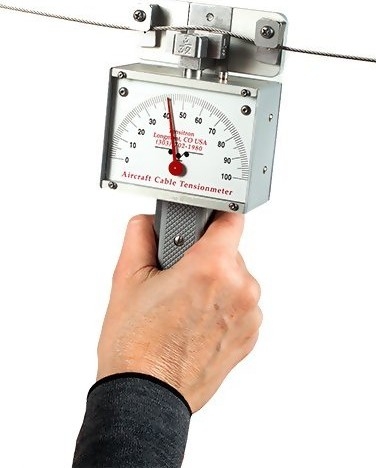

    Quick, easy, one-handed operation


    Lightweight, portable
    Built-in cable selection – no loose, separate risers

    Keep aircraft flying safely with Tensitron ACM aircraft tension meters. Tensitron ACM tension meters quickly and easily verify accurate cable tension. No more fumbling with risers with the built-in cable selection. Plus, calibration charts are attached to the meter.

    ACM instruments are designed to measure flexible cables with diameters from 1/16” up to 1/4”, CWT cable sizes from 5 to 25, and tension from 5 to 600 pounds. Calibrations for other cable sizes are available upon request


    line

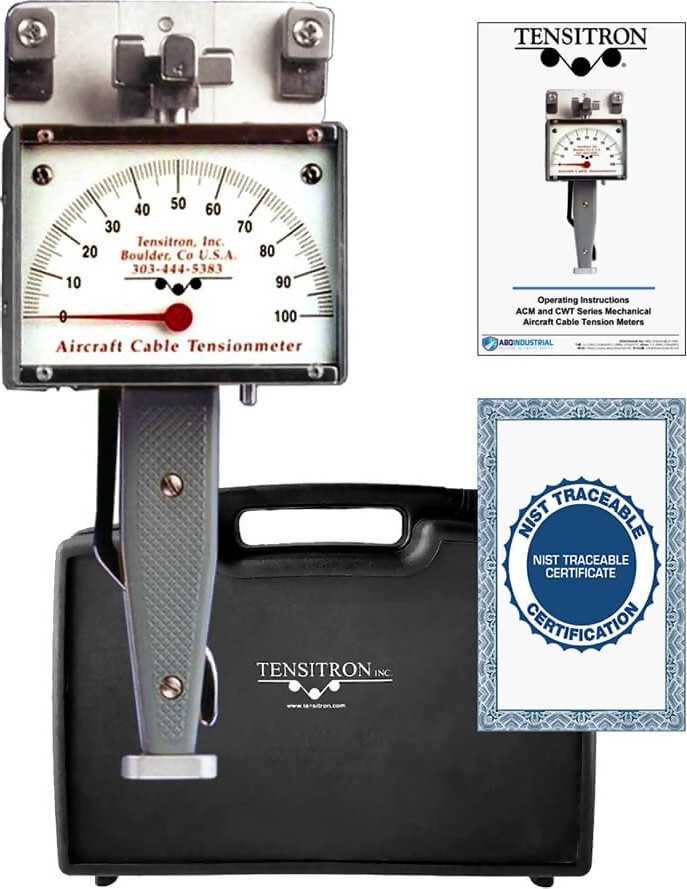

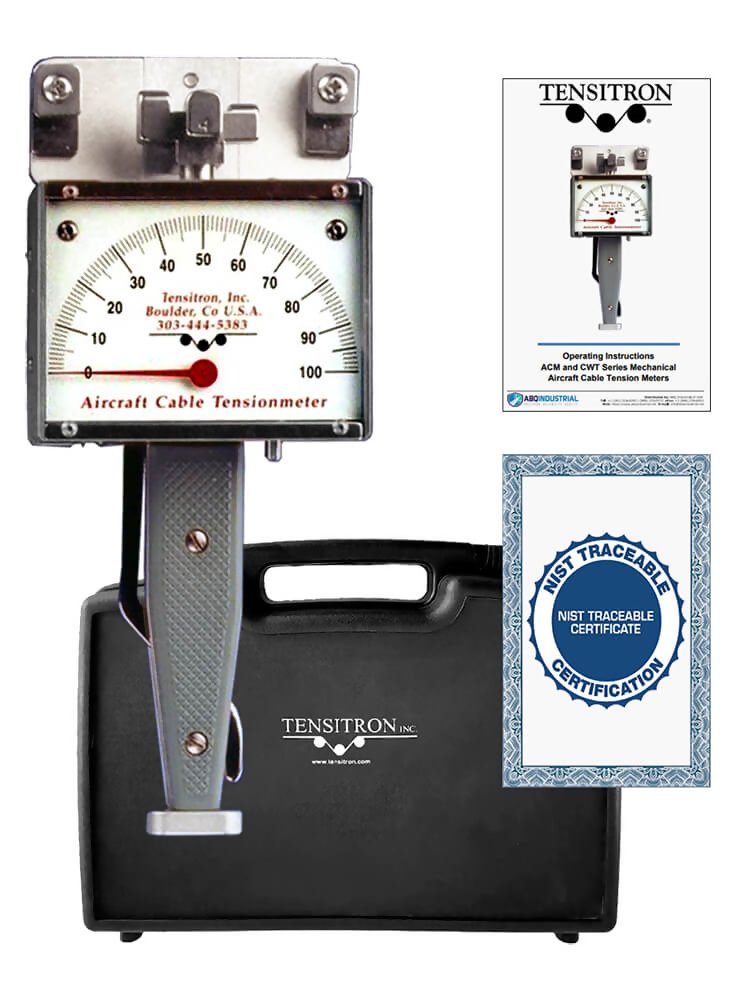

    Kit Contents
    line

    • Tensitron ACM Mechanical Aircraft Cable Tension Meters
    • NIST-Traceable Calibration Certificate
    • Operating Instructions
    • Durable lightweight carrying case with protective foam inserts


    line
    Features
    line

    Fast, dependable measurement of aircraft cable tension

    • Quickly, easily test control cable tension
    • Save time and costs
    • Improve aircraft safety and performance

    Dependable tension measurement

    • Measures wide range of aircraft cables, with inch or CWT diameters
    • Tension ranges from 5 to 600 lb.
    • Quick, easy, one-handed operation
    • Built-in cable selection – no loose, separate risers
    • Calibration chart is attached to the meter, easily accessible during use
    • Memory Lock Pointer holds readings taken in hard-to-reach areas
    • Lightweight, portable
    • Compact design allows access to small spaces
    • Durable, reliable construction
    • Textured handle for secure grip
    • Operates without electricity or charging
    • Includes carrying case and NIST-traceable calibration certificate


    line
    Specifications
    line

    Calibrated for stainless steel, uncoated7x19 cables (except 1/16 in. which is 7x7)
    Dimensionsall models except ACM-600 are 8.24 in. long x 3.38 in. wide x 1.56 in. thick. ACM 600 is 8.24 in. long x 5.20 in. wide x 1.56 in. thick
    Weightapproximately 21 oz.
    Warrantyone year against factory defects


    line
    Comparison Chart
    line

    ModelCable SelectionFull Scale Accuracy (+/-)Total error allowed (+/-)
    ACM-1001/16”, 3/32”, 1/8”, 5/32”4%4 lbs.
    ACM-2001/16”, 3/32”, 1/8”, 5/32”, 3/16”, 1/4”4%8 lbs.
    ACM-3003/32”, 1/8”, 3/16”, 1/4”6%18 lbs.
    ACM-4003/32”, 1/8”, 5/32”, 3/16”6%24 lbs.
    ACM-6001/8”, 5/32”, 3/16”, 1/4”8%48 lbs.
    ACM-150-CWT
    (formerly CWT-150)
    5 CWT, 10 CWT, 15 CWT, 20 CWT & 25 CWT cables4%6 lbs.
    ACM-300-CWT
    (formerly CWT-300)
    10 CWT, 15 CWT, 20 CWT & 25 CWT cables6%18 lbs.


    line
    Downloads
    line

    Tensitron ACM Mechanical Aircraft Cable Tension Meters - Data Sheet
    Tensitron ACM Mechanical Aircraft Cable Tension Meters - Instructions Manual
    Tensitron ACM Mechanical Aircraft Cable Tension Meters - Dimensions
