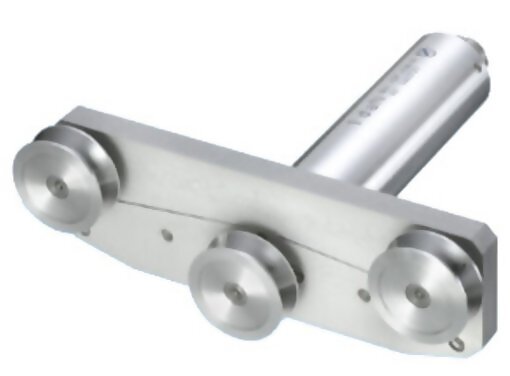

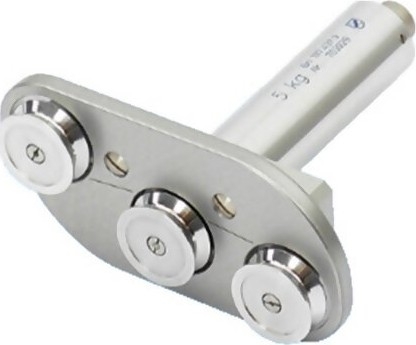

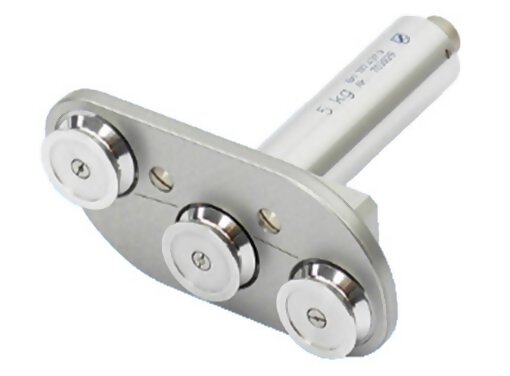

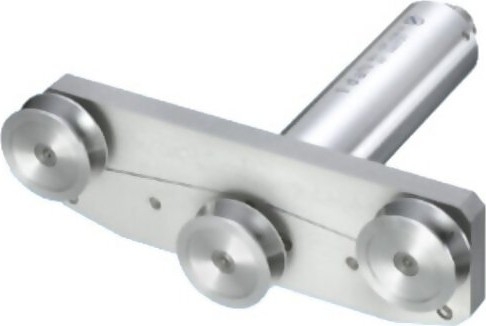

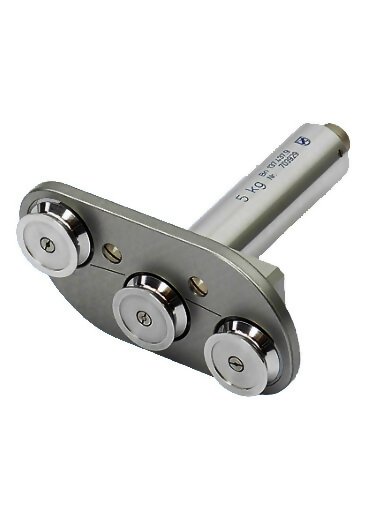

137-4 Thin Wire Tension Sensor

See More Tension Sensors, Online

137-4 Thin Wire Tension Sensor

See More Tension Sensors, Online
Call for price
    warrenty

    Product Description
    Handheld Precision Tension Measurement
    6 ranges 0 - 100 g up to 0 - 5 kg

    6 Ranges
    0 - 100 g up to 0 - 5 kg

    The design of this measuring head was selected to satisfy the special needs of the optical fibers industry. In the field of research and quality control itsapplications range from the crucible to re-reeling stations, from the extrusion process through cable jacketing and twisting machines, etc


    line
    Features
    line

    • for measurement of optical fibres, sensitive wires up to 3.5mm Ø

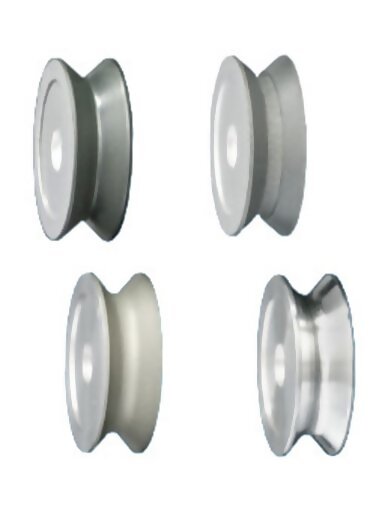

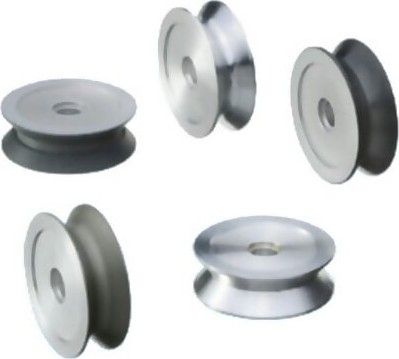

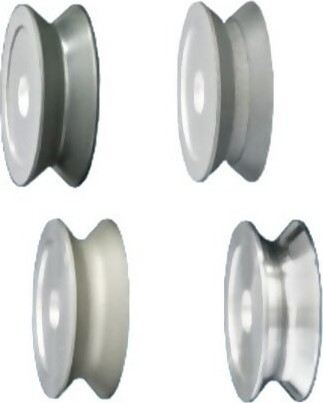

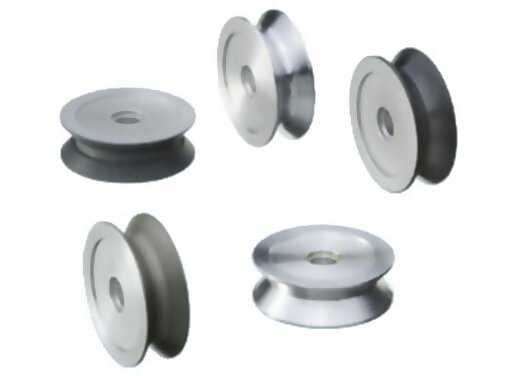

    • easy-running pulleys with precision bearings; with polished, large diameter contact surface
    • gentle on the material; easy to thread even while the process is running
    • effective overload protection means high availability for customer operations
    • very small angle of contact, only 5°
    • fiber is not diverted from its path
    • high precision and excellent long-term stability
